QSC Attero Tech Synapse D32Mi 32-Channel Dante/AES67 Mic/Line Interface

The Synapse D32Mi is the high-density end of Attero Tech's networked input line: thirty-two studio-grade mic/line preamps in a single rack unit, feeding Dante with AES67 interoperability. It is built for the jobs where channel count is the whole problem, such as large council chambers, houses of worship and multi-room conference floors that would otherwise need several smaller interfaces.

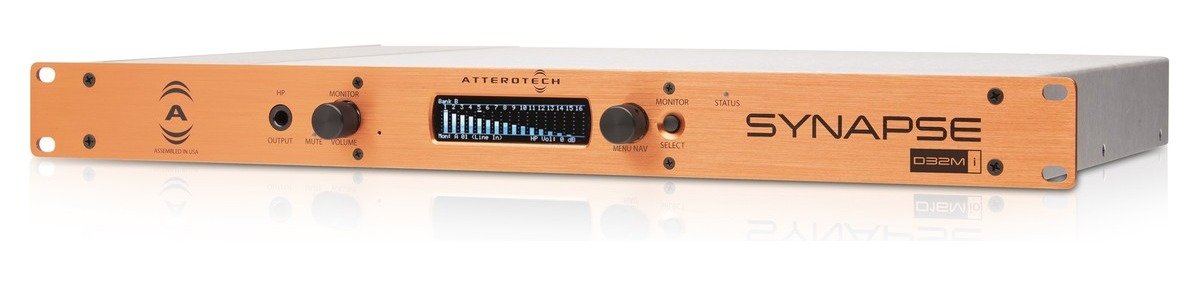

Gain, mute and phantom power are reachable from the front panel rather than only from software, and a front headphone jack monitors either a local input or a Dante stream for commissioning. Two gigabit copper ports and two SFP cages support switched or redundant network modes.

Protocol support	Dante with AES67 support
Channel count	32 Dante RX, 2 Dante RX
Modes	Switched or Redundant mode

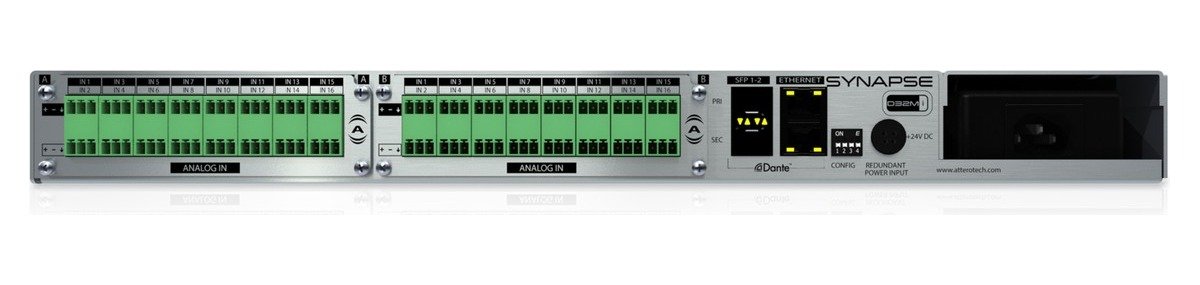

Ports	2 - Gb copper on RJ-45, 2 - Gb SFP
Maximum input level	+24 dBu (pad active - Line mode)
Input impedance	2k ohms (mic) \| 10k ohms (line)
Maximum output level	+24 dBu
Dimensions (HWD)	1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm)
Weight	6 lb (2.72 kg)
