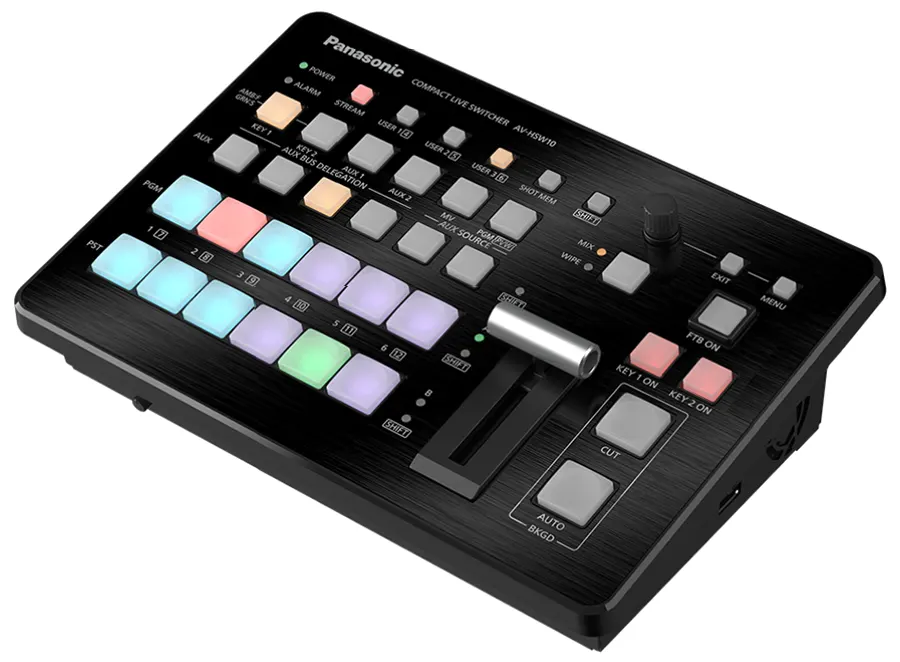

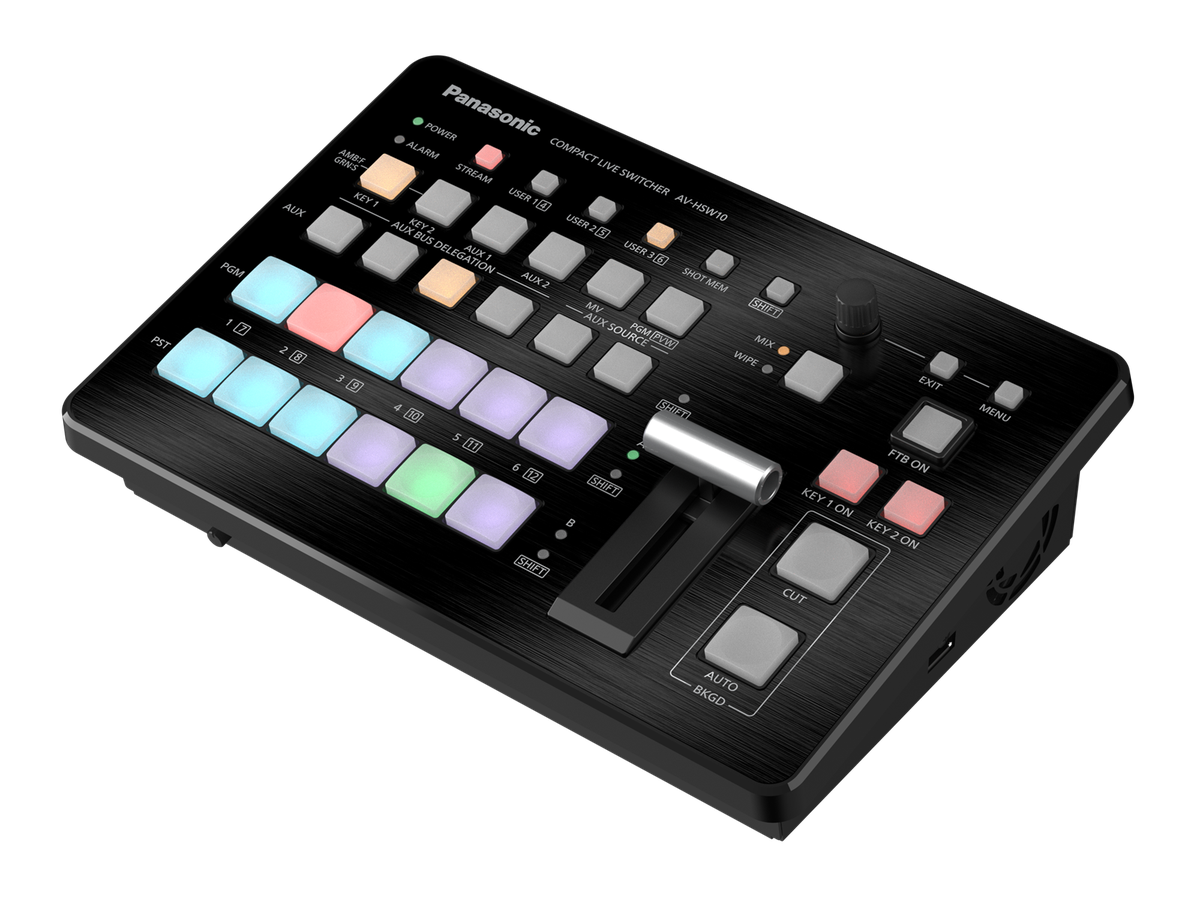

Panasonic AV-HSW10 Live Production Streaming Switcher

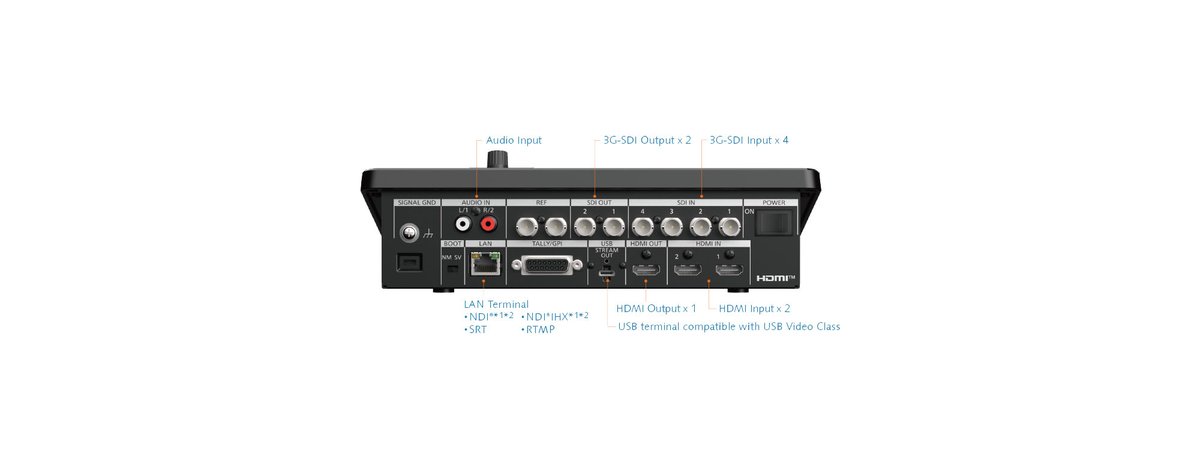

The AV-HSW10 is a compact 1ME live switcher that mixes baseband and IP sources in one chassis. It takes four 3G-SDI and two HDMI inputs plus two IP inputs for SRT and NDI HX feeds, and sends program to two 3G-SDI outputs and one HDMI output for local display and recording. SDI and HDMI input 1 share a single path and cannot be used at the same time. A frame synchronizer on the inputs and Genlock let it fold in cameras and remote feeds cleanly.

Processing is 10-bit, with keyers and automatic color adjustment to match multi-camera sources. A standard MultiViewer output shows up to 16 split screens across preset layouts. On the IP side the switcher supports NDI, SRT, RTMP and RTMPS for direct streaming, and USB Video Class so it can appear as a webcam to conferencing software. A 2-channel RCA line input adds analog audio to the mix.
