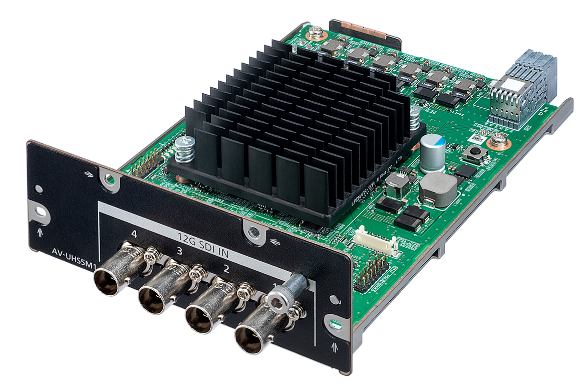

Panasonic AV-UHS5M1G SDI Input Module
The AV-UHS5M1G adds four more SDI inputs to an AV-UHS500 switcher, each running through its own frame synchronizer so mismatched or unsynced sources lock to the show without an external sync box. Up-conversion and color correction are built into every input channel, letting a mixed-format shoot feed the switcher legacy HD sources alongside native 4K without a separate conversion rack.
It accepts 12G, 3G, and HD-SDI on the same four BNC connectors, auto-sensing the format per input, and draws its power directly from the UHS500 chassis rather than needing a separate supply. At 371 g and a housing sized to slot into the switcher\'s expansion bay, it is built to scale a UHS500 system input by input as a production\'s camera count grows.
| Module Type | SDI Input Unit, AV-UHS500 expansion |
|---|---|
| Inputs | 4x BNC, 12G/3G/HD-SDI |
| Processing | Built-in frame synchronizer on every input; up-converter fitted; color space conversion; color corrector fitted |
| 12G-SDI | SMPTE ST 2082-10, 0.8V [p-p] +/-10% (75 ohm) |
| 3G-SDI | SMPTE 292 Level-A/Level-B, 0.8V [p-p] +/-10% (75 ohm) |
| Power | DC 12V, supplied by the AV-UHS500 |
| Dimensions / Weight | 112 x 42 x 167 mm, approx. 371 g |
