OConnor Mitchell Base
A Mitchell base is what puts an OConnor head onto a Mitchell-topped tripod, hi hat or dolly instead of a ball. On a film set it is usually the default rather than the option, because Mitchell locates positively and does not creep under a heavy tilt the way an under-tightened bowl can.

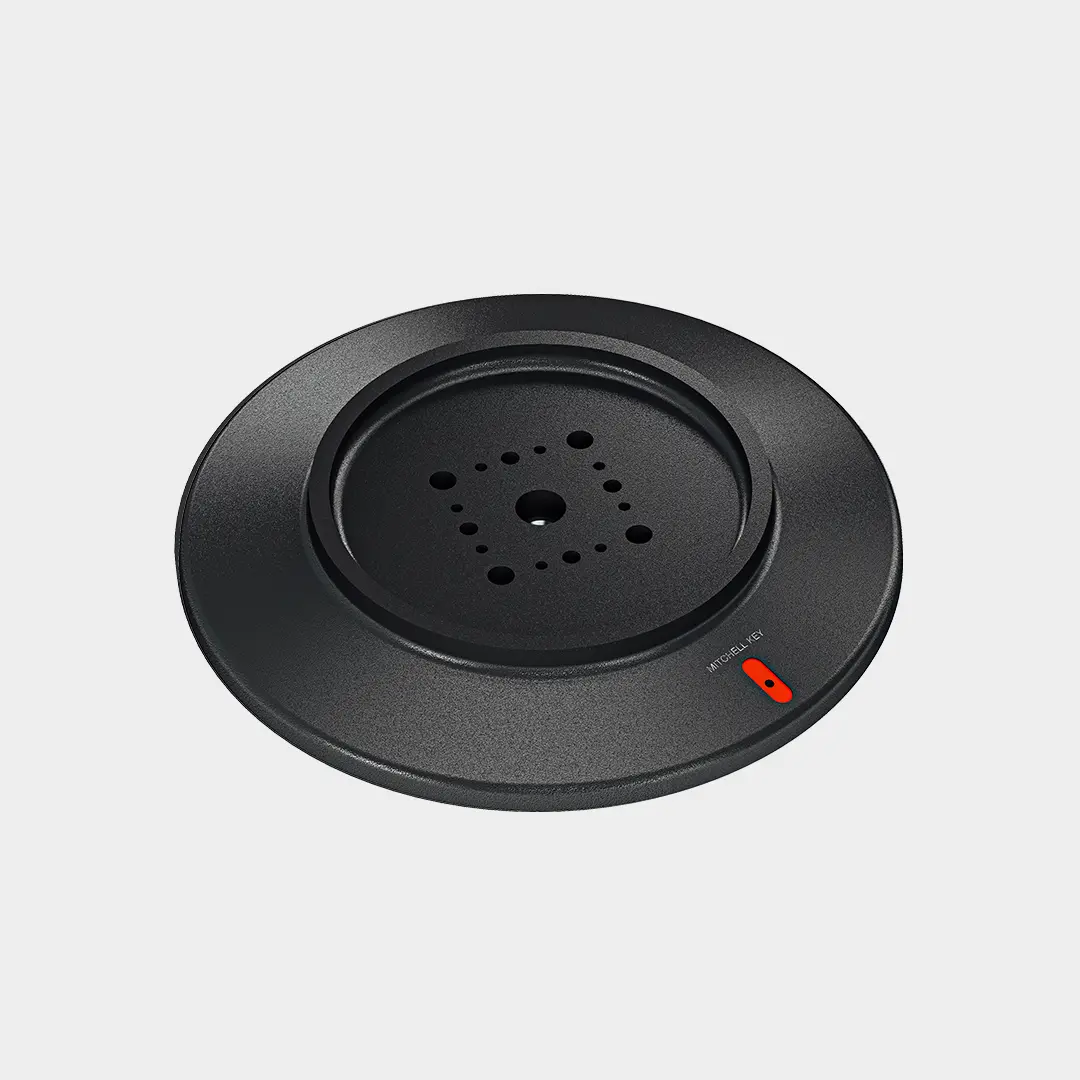

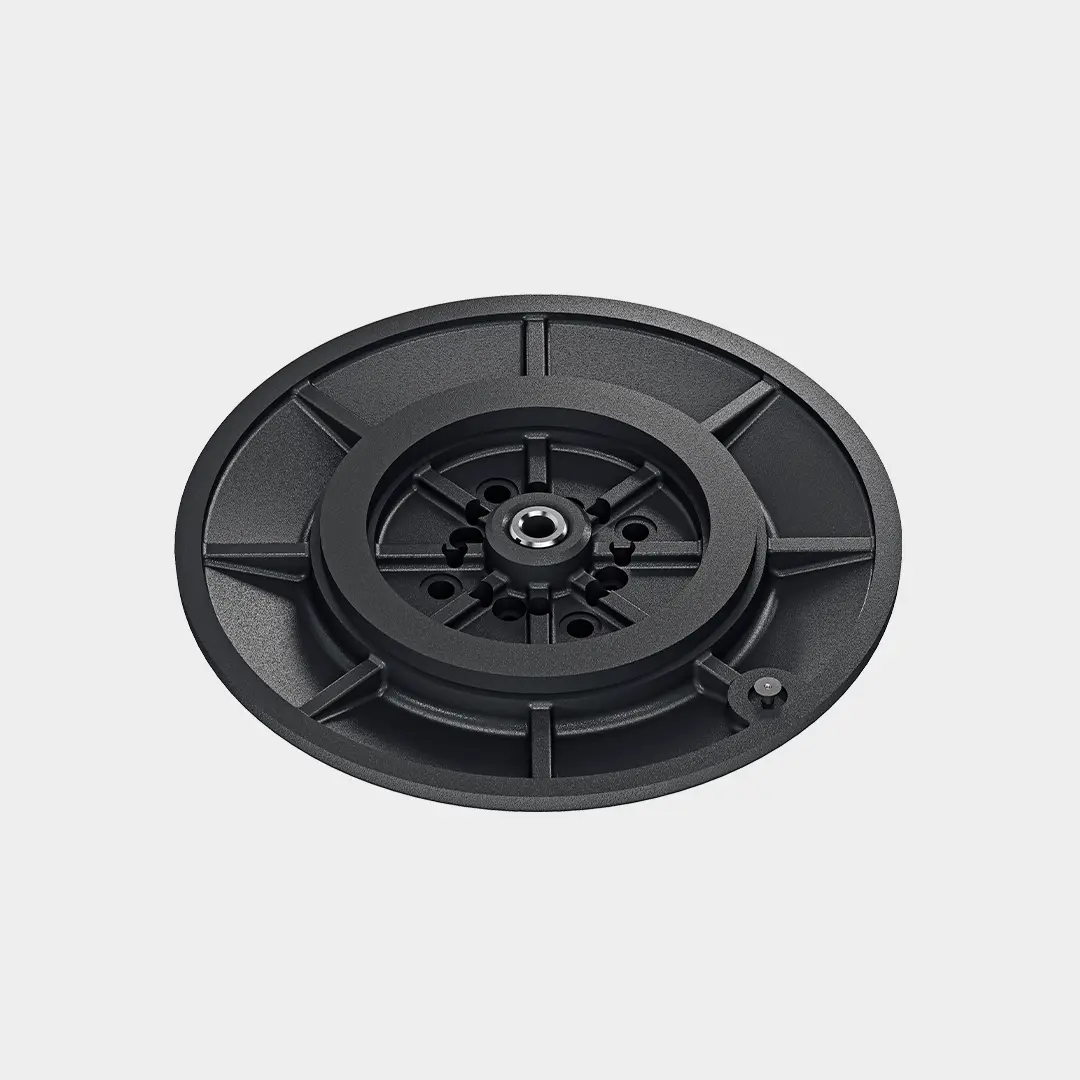

C1275-1010 is the optional Mitchell base for the 1040, 2560 and 2575 heads. Some head packages ship with it already; where they do not, this is the part. It requires the C1234-1018 Mitchell tiedown and measures 6.8 x 6.8 x 1.1 in (17.3 x 17.3 x 2.8 cm) at 1.5 lb (0.7 kg). C1225-1011 is a different casting and fits the 120EX only.
| Type | Mitchell mounting base |
|---|---|
| C1275-1010 Compatibility | OConnor 1040, 2560 and 2575 heads |
| C1275-1010 Dimensions | 6.8 in W x 1.1 in H x 6.8 in D (17.3 x 2.8 x 17.3 cm) |
| C1275-1010 Weight | 1.5 lb (0.7 kg) |
| C1275-1010 Requires | C1234-1018 Mitchell tiedown |
| C1225-1011 Compatibility | OConnor 120EX only |
| Note | A base is supplied in some head packages; check the package contents before ordering |
