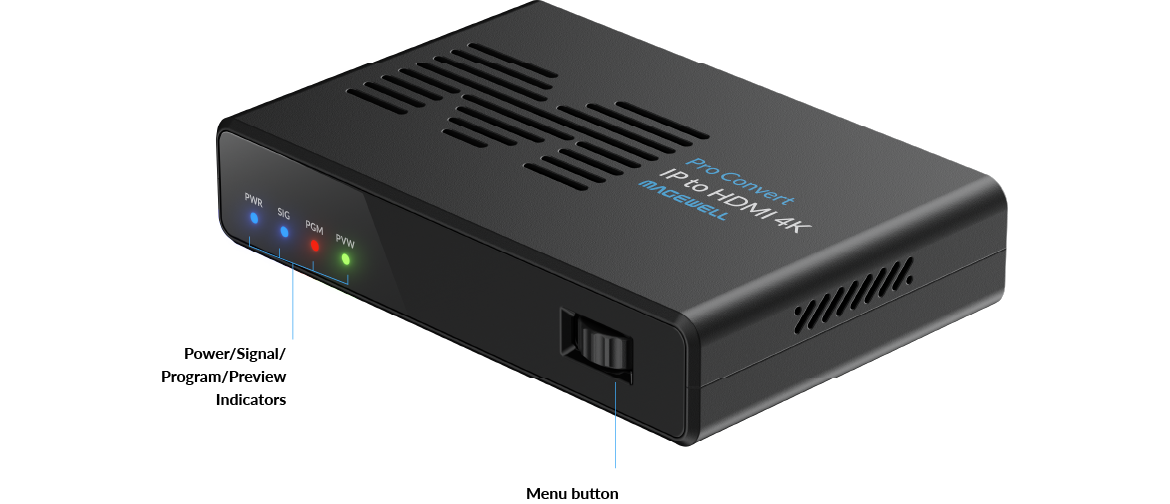

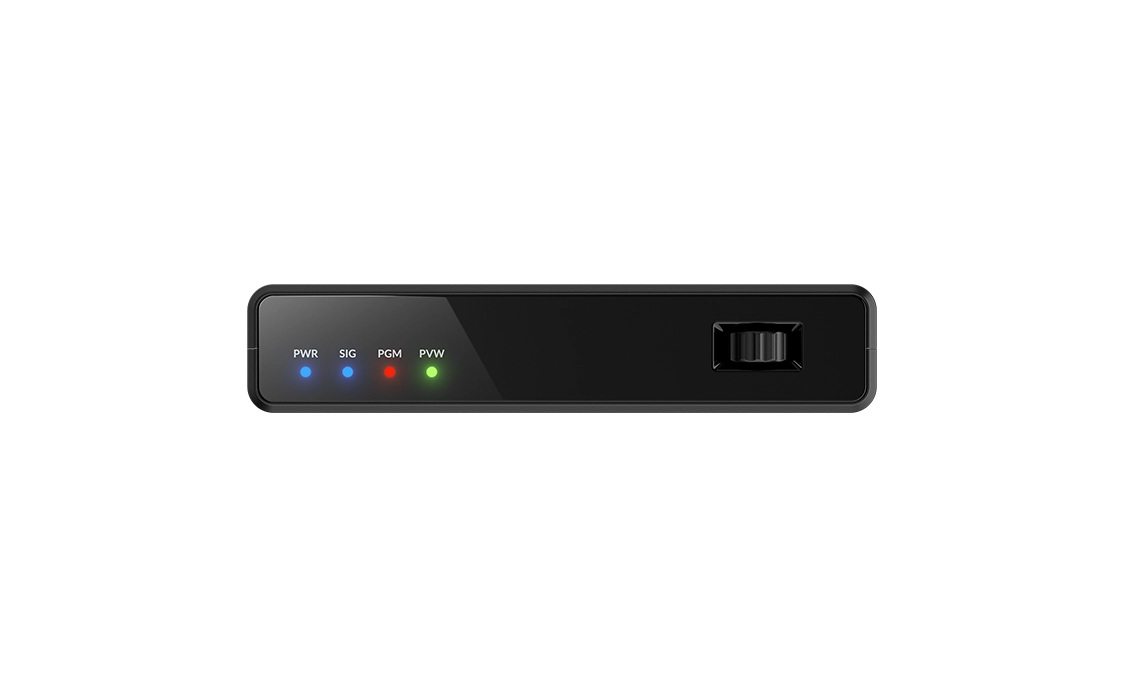

Magewell Pro Convert IP to HDMI 4K IP Decoder (64410)

Pro Convert IP to HDMI 4K takes the streams already moving around a facility and puts them on a screen. One stream decodes at up to 4096 x 2160p60 in H.264, H.265, SpeedHQ or MPEG2; drop to 1080p60 and the same box will hold two streams in picture-in-picture or four in a quad view, which covers a confidence monitor, a lobby display or a control-room multiview without a separate processor. Protocol support spans NDI High Bandwidth, NDI HX2 and HX3, SRT, MPEG-TS over RTP, UDP and RIST, RTMP, RTSP, HLS, HTTP and Zixi, so it decodes whatever the contribution path happens to be using.

Output runs to 4096 x 2160 at 60fps in 4:2:2 10-bit with HDR PQ and HLG passthrough, alongside 8-channel audio at 48 or 96 kHz, and audio decoding covers AAC, MP3, AC3, Opus and G.711. Setup happens through the web GUI, an attached keyboard and mouse, or the controls on the unit itself, and HTTP APIs are available for automation. The decoder registers with Magewell Control Hub or Zixi ZEN Master when it needs to be managed alongside a fleet. The chassis is the same 120 mm slab as the rest of the Pro Convert line, so it racks and stacks with them.
