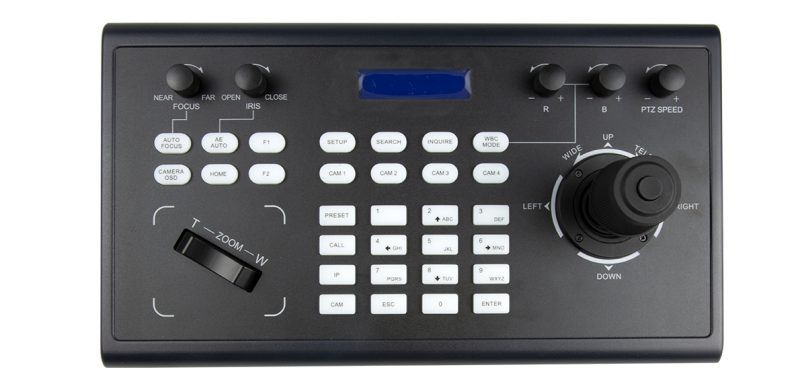

RGBlink RGBCTL-PTZ-BK PTZ Camera Controller

The RGBCTL-PTZ-BK is RGBlink's hardware controller for PTZ cameras, and it exists because software control of a camera is fine until someone has to make a live move. A four-dimension joystick handles pan, tilt, zoom and rotation with speed under the operator's hand, and the keypad adjusts camera parameters without leaving the desk.

It speaks VISCA, Pelco-D and Pelco-P over serial and ONVIF or VISCA over the network, reaching up to 255 cameras, so it drops into an existing plant rather than requiring a matched camera brand. Connections are RS-232 on DB15, RS-422/485 on a five-pin terminal and Ethernet on RJ45. An LCD on the front panel shows state, control codes can be edited by the customer, and PoE means one cable to the desk.
