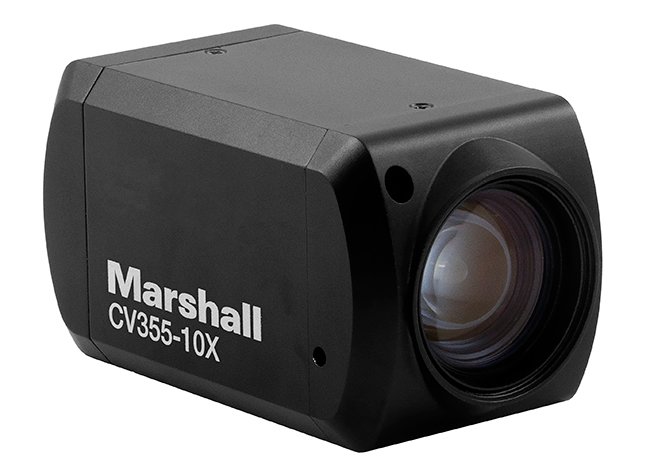

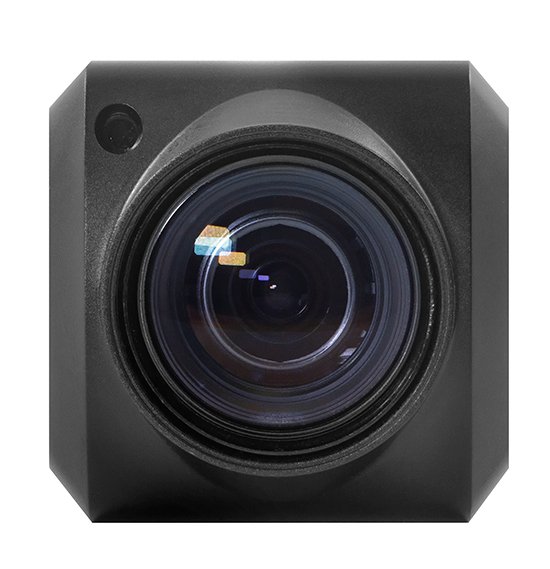

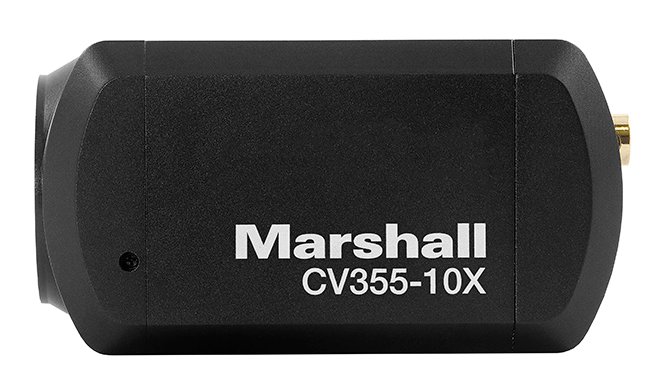

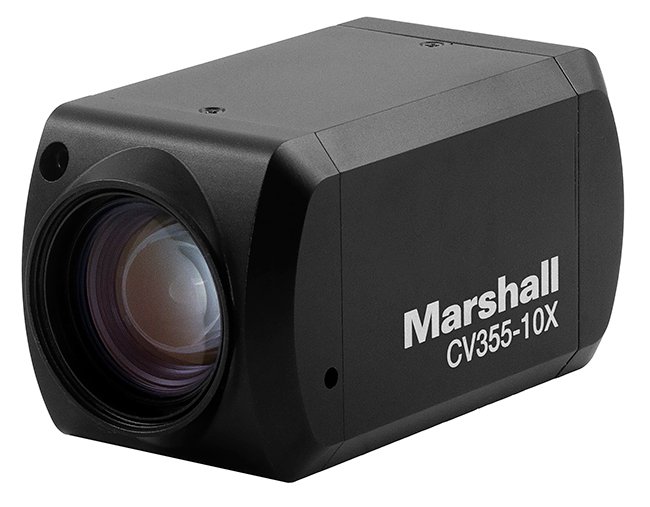

Marshall Electronics CV355-10X Compact 10X Camera, 3G-SDI and HDMI

The CV355-10X builds a 10x optical zoom block (4.7 to 47mm, F1.6-F3.0) around a 2.1-megapixel progressive CMOS sensor, with remote control over iris, white balance, exposure and pedestal for live adjustment from the truck or booth. It outputs crystal-clear HD video up to 1920x1080p simultaneously over 3G-SDI, HD-SDI and HDMI.

A 1/4-20 standard mount and 49mm threaded ring adapter let it drop onto existing tripod and rig hardware, and it draws just 6 watts from a 12V DC supply (7-15V range) for field or fly-pack use.

Sensor1/2.8 inch progressive 2.1 MP CMOS
Zoom10x optical (12x digital), f=4.7-47mm, F1.6-F3.0
Angle of View60 deg wide to 6 deg tele
Outputs3G-SDI, HD-SDI, HDMI simultaneous
Resolutions1920x1080p/i, 1280x720p, 24-60fps
Mount1/4-20 standard
Power12V DC (7-15V), 6W
Dimensions104.55 x 56 x 56 mm, 0.80 lbs
