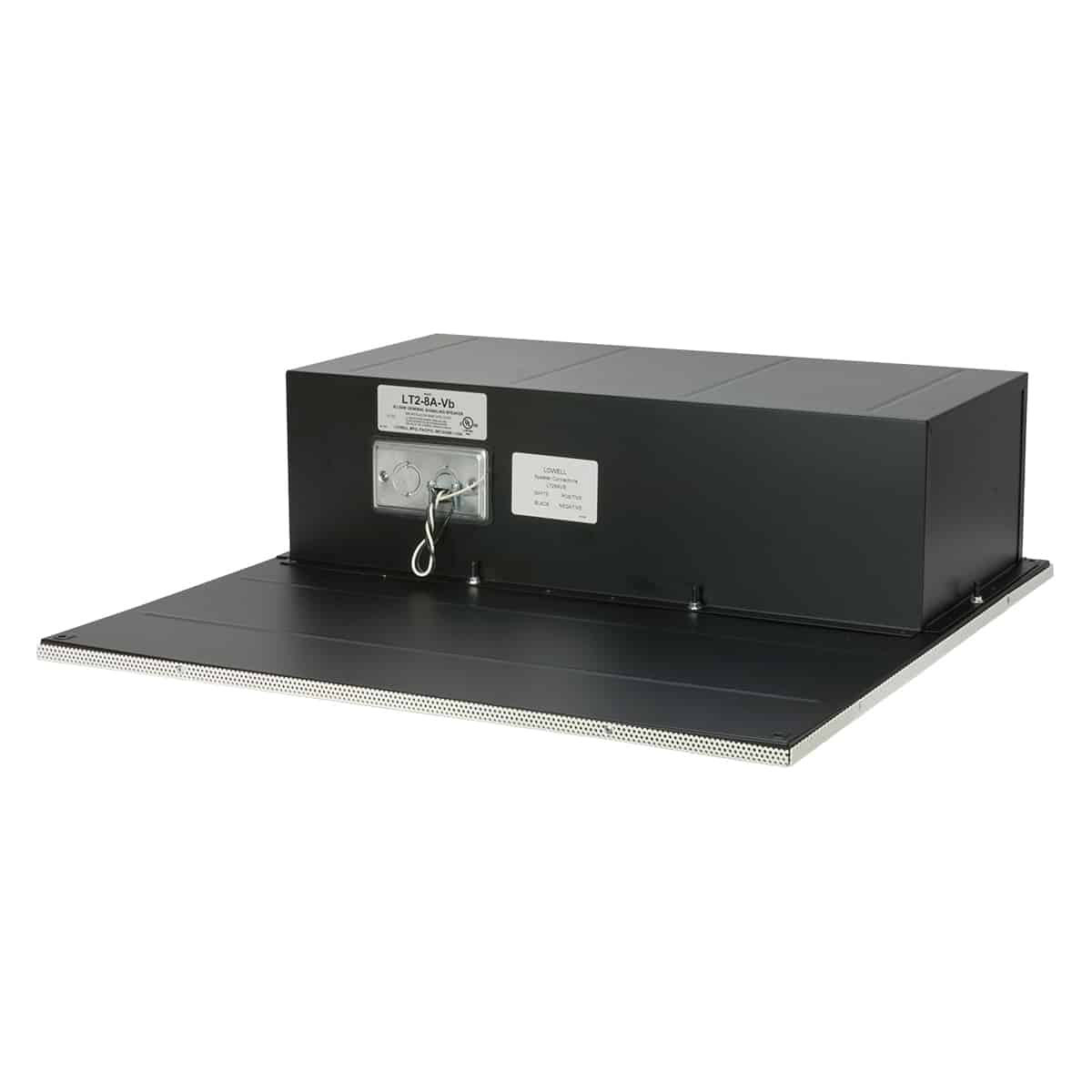

Lowell LT2-8A Series 8in Coaxial Tile Ceiling Speaker, 2x2

The Lowell LT2-8A Series is the 2x2-tile version of Lowell's step-up 8-inch tile ceiling speaker, built around the same 50W coaxial driver as the 1x2 LT-8A in a plenum-offset backbox.

The base part number wires direct; the -T870 and -TM32 add a 70V transformer at two different tap ranges, 1 - 8W and 8 - 32W. Pick the one you need from the selector above and the cart follows your choice. Lowell rates it UL1480A General Signaling (Indoor Dry), UL2043 suitable for air handling space, CSA C22.2 No. 205-12.

Driver	8 in. 50W coaxial driver, 20 oz. LF and 2 oz. HF ceramic magnets
Frequency Response	40Hz - 19.4kHz (+/-6dB) and 40Hz - 20kHz (+/-7.3dB)
Sensitivity	90.6dB, measured 1W/1M
Enclosure	0.8 cu.ft. steel backbox with 1.5 in. thick acoustic lining, offset to fit around plenum obstructions
Grille	2x2 fine-perforation, white powder epoxy
Compliance	UL1480A General Signaling (Indoor Dry), UL2043 suitable for air handling space, CSA C22.2 No. 205-12
Country of Origin	Assembled in U.S.A. with U.S. steel and global components
