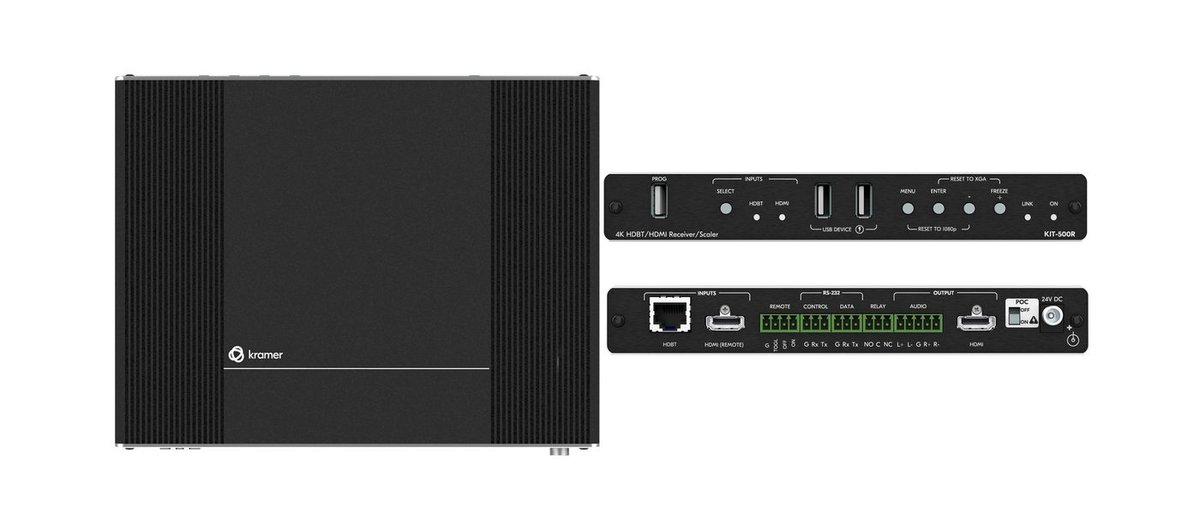

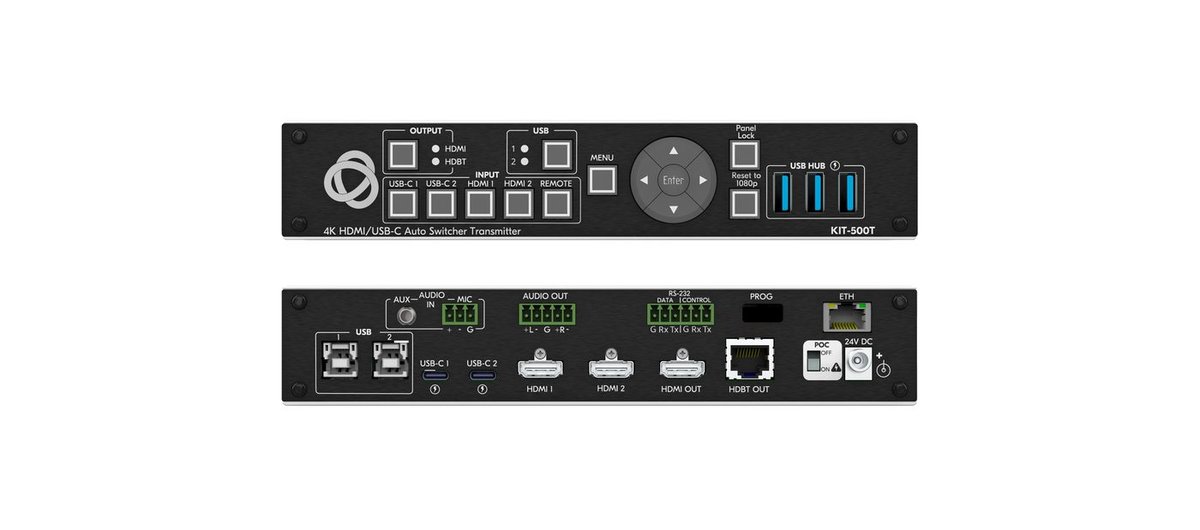

Kramer KIT-500 5x2 4K60 USB-C/HDMI Extender/Scaler Matrix Kit

The Kramer KIT-500 is a 5x2 4K60 USB-C/HDMI Extender/Scaler matrix kit, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: INPUTS; 2 HDMI: On female HDMI connectors; 2 USB-C: On USB-C female connectors; 1 Mic/Unbalanced Stereo Audio: On a 3-pin terminal block connector; 1 AUX Unbalanced Stereo Audio: On a 3.5mm mini jack; OUTPUTS; 1 HDMI: On a female HDMI connector; 1 HDBaseT: On an RJ-45 connector; 1 Balanced Stereo Audio: On a 5-pin terminal block connector; PORTS; 1 Ethernet: On an RJ-45 connector; 1 Control RS-232: On a 3-pin terminal block connector; 1 Data RS-232: On a 3-pin terminal block connector; 1 Program USB: On a USB type A connector for firmware upgrade; 3 USB (HUB): On USB type A connectors; 2 USB (Host): On USB type B connectors; Integrated USB Hubs: 2; ANALOG AUDIO; Input Coupling: AC; Output Coupling: DC; Max Input Signal Level: 5.5Vp-p/8dBu; Max Output Signal Level: 6Vp-p/8.7dBu; Frequency Response: 20Hz to 20kHz +/-0.1dB; THD+N (A-weighted): 76dB; Input Impedance: 14K ohm; Output Impedance: 500 ohm; For Embedded Audio - Number of Supported Channels: Up to 8CH; Supported Audio Formats: Dolby, DTS (transmitter); INPUTS; 1 HDBaseT: On an RJ-45 connector; 1 HDMI: On a female HDMI connector; OUTPUTS; 1 Balanced Stereo Audio: On a 5-pin terminal block connector; PORTS; 1 Control RS-232: On a 3-pin terminal block connector; 1 Data RS-232: On a 3-pin terminal block connector; 3 Remote Contact-Closure: On a 4 pin terminal block connector; 1 Relay: On a 3-pin terminal block connector; 2 USB (DEVICE): On USB 2.0 type A connectors; 1 Program USB: On a USB-A connector for firmware upgrade; Integrated USB Hubs: 1; ANALOG AUDIO; Output Coupling: DC; Max Input Signal Level: 3.5Vp-p/4.2dBu; Max Output Signal Level: 10Vp-p/13dBu; Frequency Response: 20Hz to 20kHz +/-0.1dB; THD+N (A-weighted): 76dB; Output Impedance: 500 ohm; For Embedded Audio - Number of Supported Channels: 2CH; Supported Audio Formats: LPCM (receiver); USB-C and HDMI ports: 18Gbps. Also: HDBT port: 10.2Gbps; HDMI port: 4K@60Hz (4:4:4); HDBT port: 4K@60Hz (4:2:0); 4K60, CEC, xvYCC color (video - hdmi support); HDCP 1.4 and 2.2 (KIT-500R) (video - content protection).
