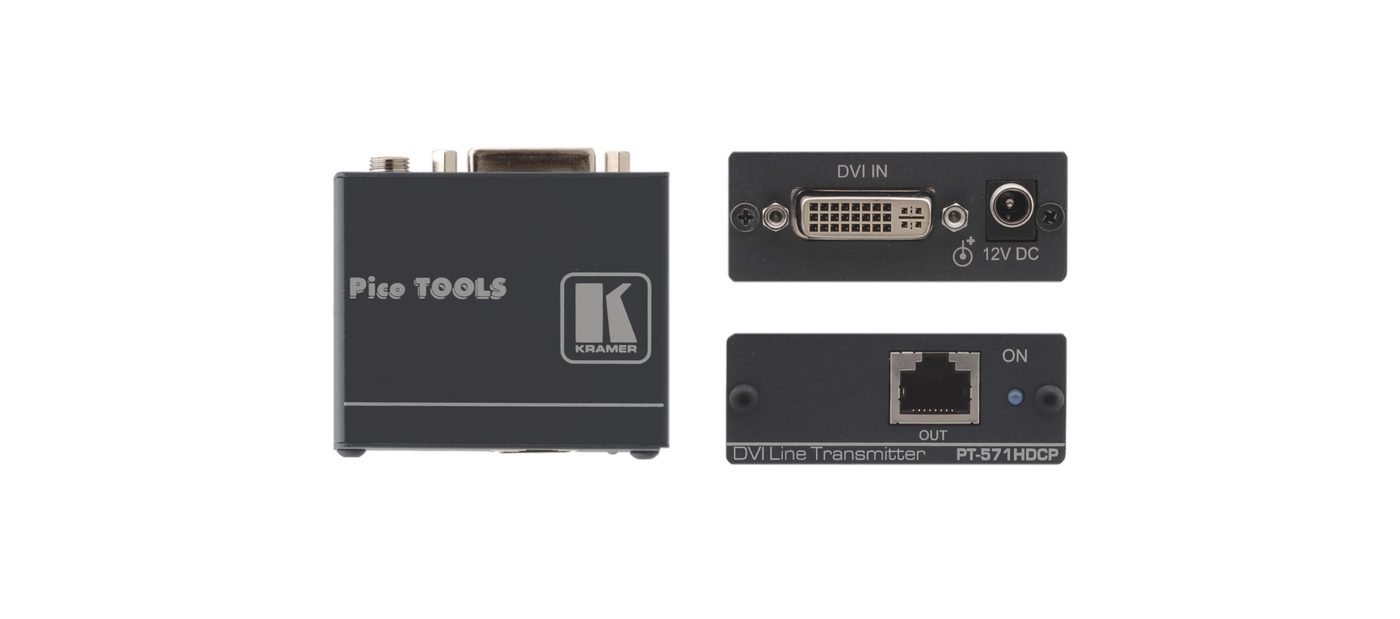

Kramer PT-571HDCP DVI HDCP 2.2 Compact Transmitter over PoC Long-Reach DGKat

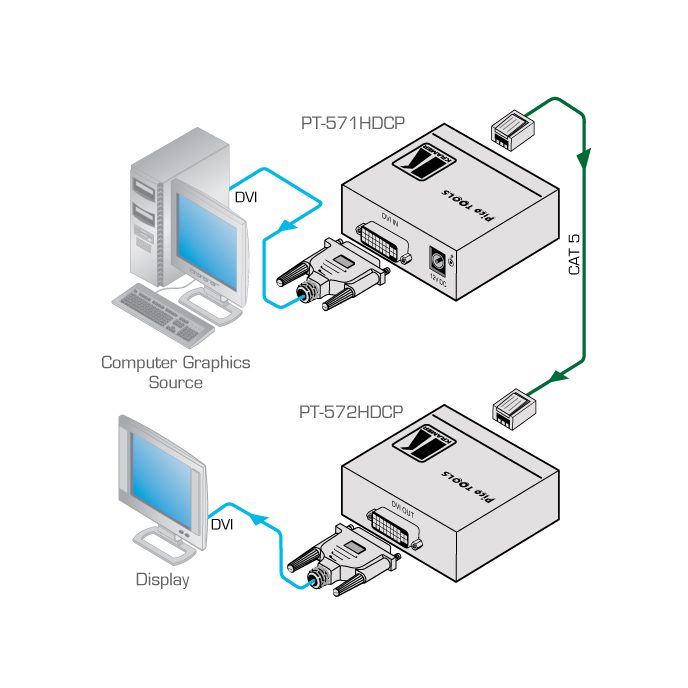

The PT-571HDCP is a DGKat twisted-pair transmitter for DVI signals. The PT-571HDCP converts the DVI to twisted pair signal and the PT-572HDCP+ converts the twisted pair signal back to a DVI signal. The PT-571HDCP-MD is certified for medical applications. Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p. Certified for Medical Applications - According to IEC 60601-1-2 (Electromagnetic Compatibility), (PT-571HDCP-MD). HDTV Compatible. HDCP Compliant. DGKat Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. EDID PassThru - Passes EDID signals between the source and display. Power Connect System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other. Ultra-Compact PicoTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
