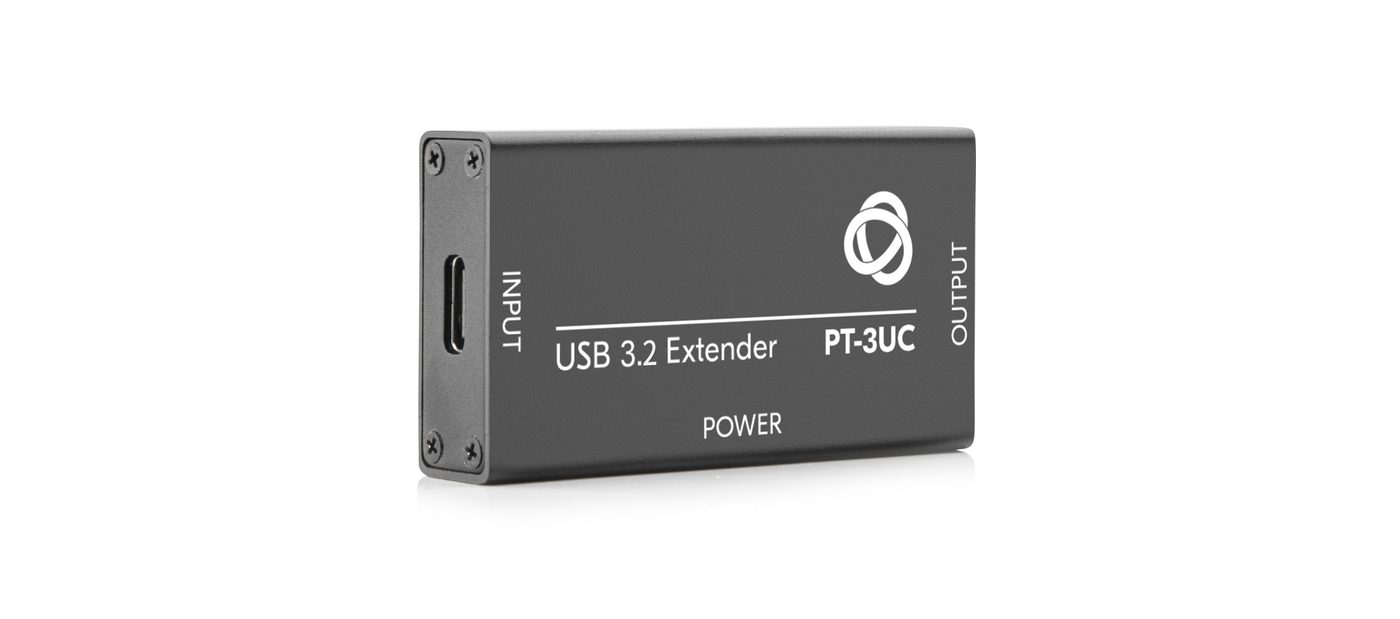

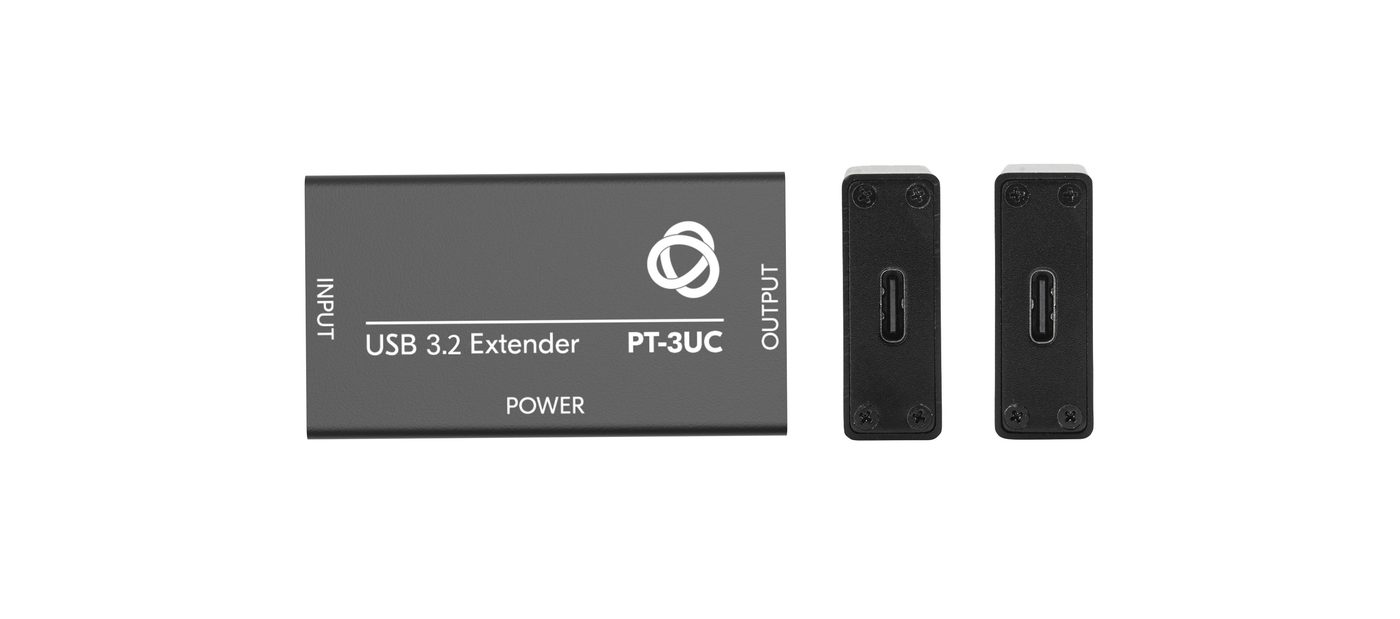

Kramer PT-3UC Active USB 3.2 Extender

PT-3UC is an innovative active USB 3.2 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT-3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables. True Plug & Play - No additional driver program is needed. USB 3.1 Super Speed (10Gbps) Standard - Compliant with USB 3.2. Video ALT mode Backwards Compatible - USB 3.0, 2.0, 1.1 External power supply via a micro-USB connector Buffers incoming & outgoing signal. Certifications - CE, FCC, REACH, ROHS.

USB 3.2 Gen 2	On a USB type-C female connector
Max. Data Rate	10Gbps
Max.	Video resolution 4K@60
Max output power	2.5A (12.5W)
Max. Range	10Gbps - 4m, 2m to PT-3UC, 2m to Device
Backwards Compatibility	USB 3.0, 2.0, 1.1
Self Consumption	<=1 W
External power supply	Via a micro-USB connector
Operating Temperature	0 to 45
Operating Humidity	10% to 85 % RH
Storage Temperature	-10 to +70
Storage Humidity	5% to 90 % RH
