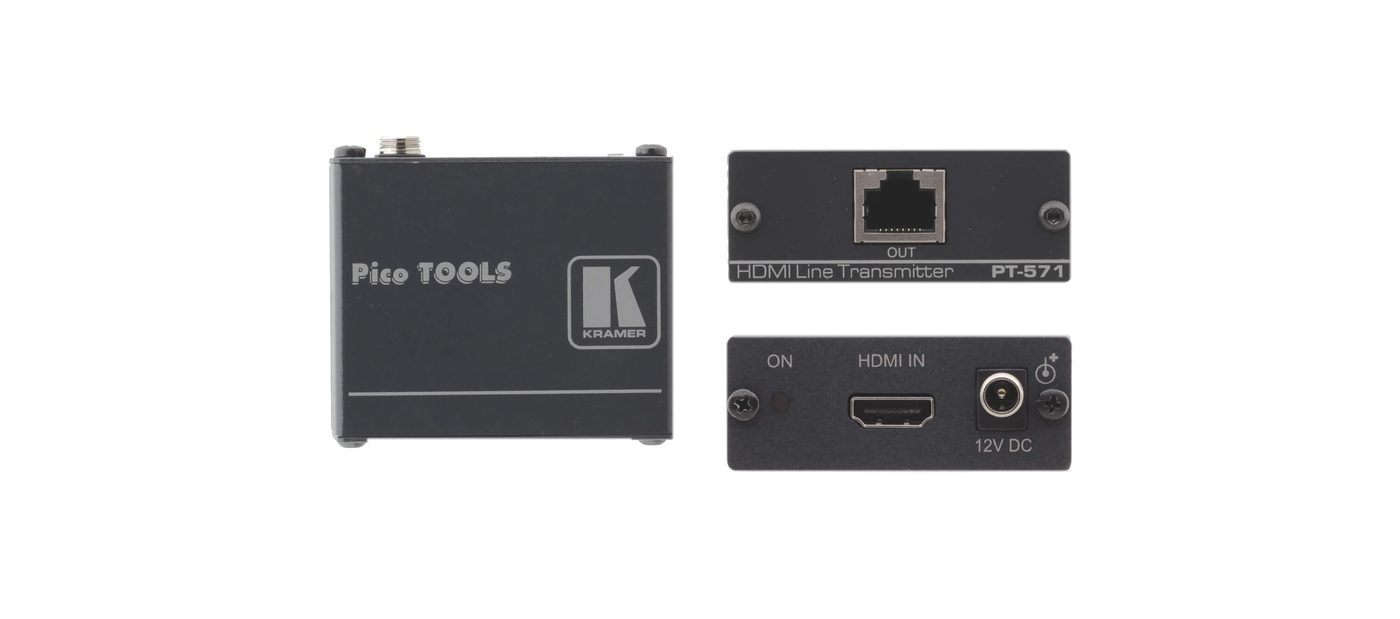

Kramer PT-571 HDMI HDCP 2.2 Compact Transmitter over PoC Long-Reach DGKat

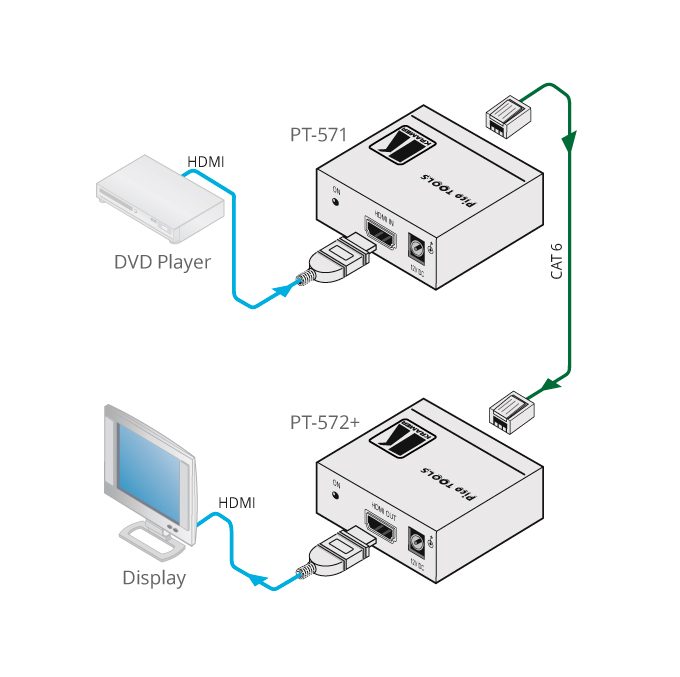

The PT-571 is a DGKat twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal. Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel). HDTV Compatible. HDCP Compliant. DGKat Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. HDMI Support. 3D Pass-Through. System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. EDID PassThru - Passes EDID signals between the source and display. Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached. Power Connect System - A single connection to the transmitter powers the receiver. Ultra-Compact Pico TOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
