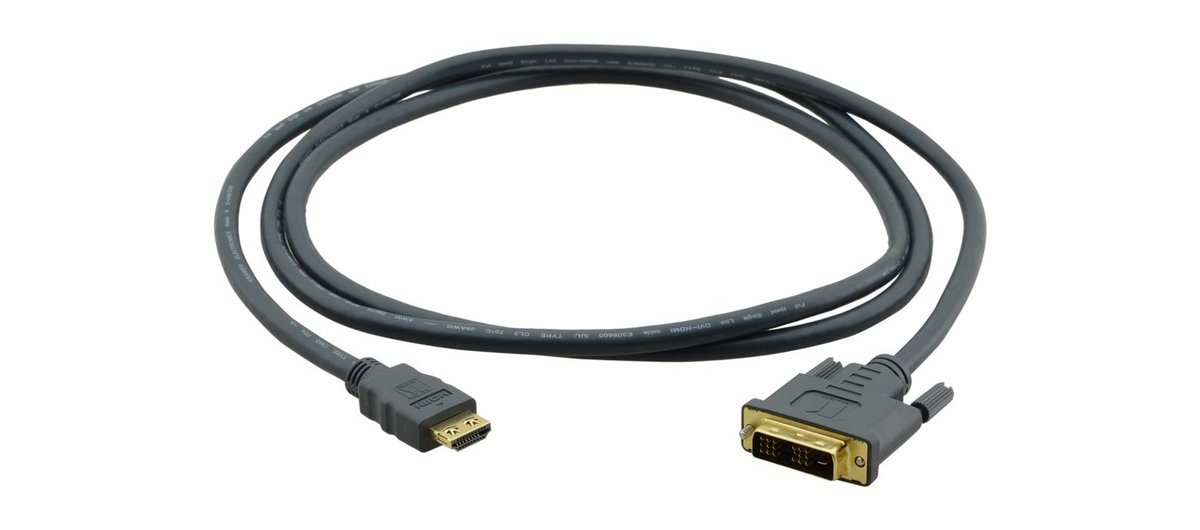

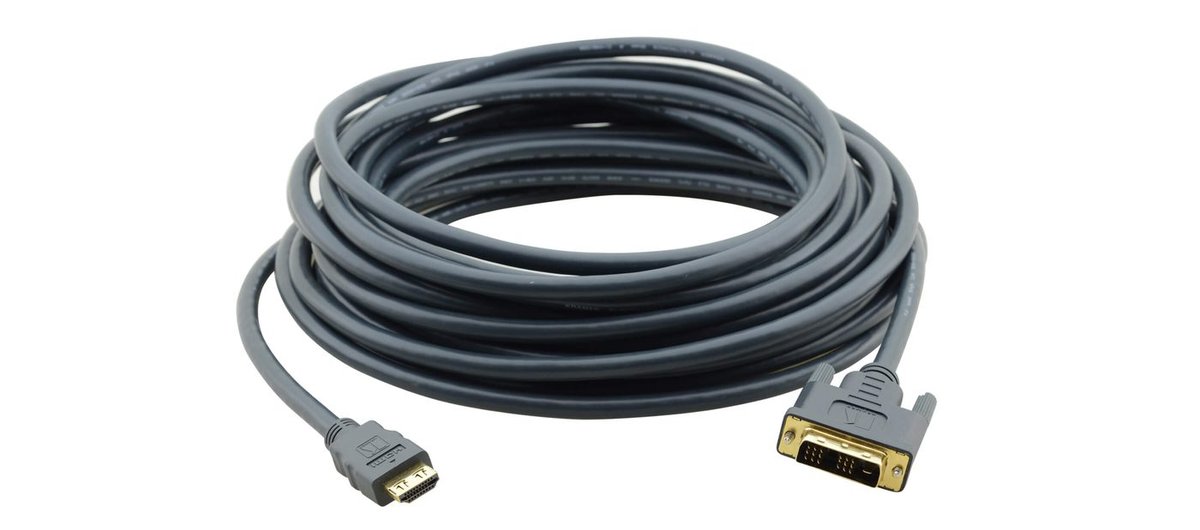

Kramer C-HM/DM HDMI to DVI Cable
Kramer's C-HM/DM is a high-performance cable with an HDMI connector at one end and a DVI connector at the other. It is designed to connect between digital video sources and displays and recorders that don't have both DVI and HDMI connectors. Quality Construction - HDMI to DVI Single Link (18+1 pin) cable provides excellent conductivity at high frequencies and longevity without degradation. High Quality Connectors - Gold-plated connectors resist corrosion and offer the best possible connectivity. Varied Selection of Lengths - Available in versions of 0.15 to 15.2m (0.5, 3, 6, 10, 15, 25, 35, and 50ft).
| HDMI Connector | Male HDMI type A, 24K K-lock connector |
|---|---|
| DVI Connector | Male DVI (18+1) gold plated connector |
| Cable Shield | Triple Shielding eliminates RF and EM interference |
| Conductors | 0.5-25ft - 28AWG, 35-50ft - 26AWG |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| Cable Diameter | 0.5-25ft - 7mm, 35-50ft - 9mm |
| Cable Bending Radius | 0.5-25ft - 70mm, 35-50ft - 90mm |
| Operating Temperature | -20~+80C |
| Dielectric strength | AC - 750V/1sec MIN |
| Conductor resistance | 28AWG-237ohm/KM MAX. at 20 |
| NEC-UL/CSA | CMG-CL3/FT4 |
