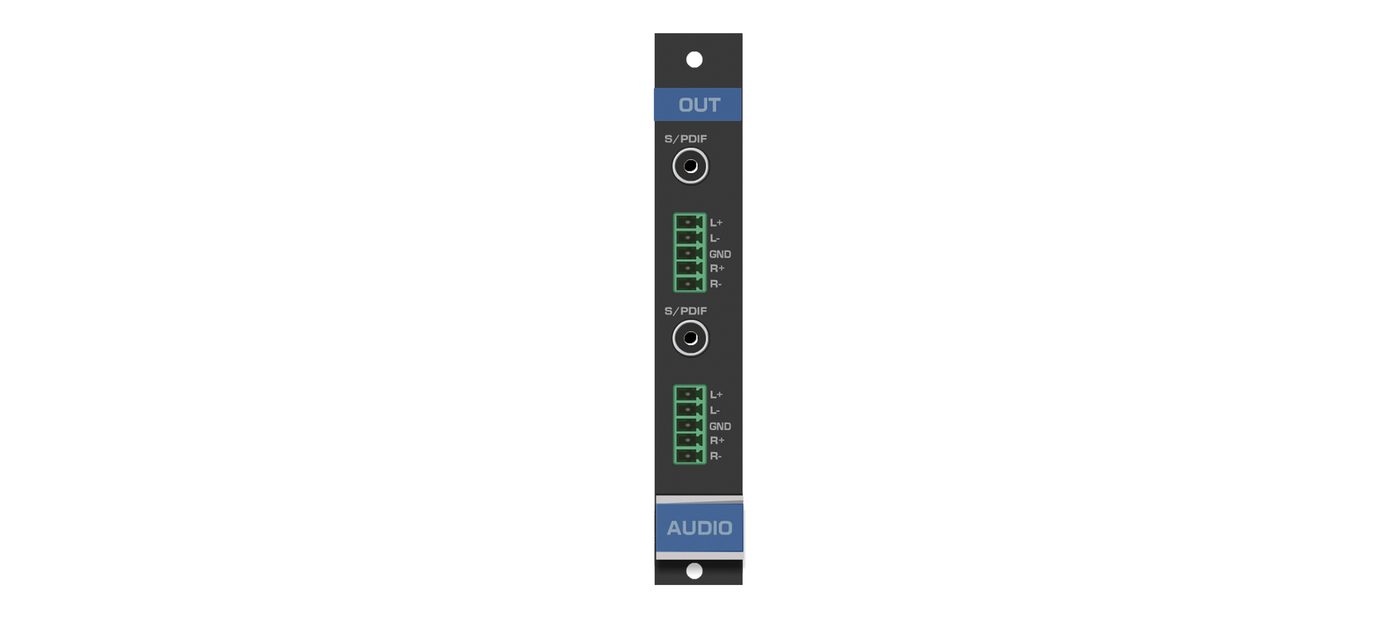

Kramer AAD-OUT2-F16 2-Channel Analog & Digital Audio Output Card

The Kramer AAD-OUT2-F16 is a 2-Channel analog & digital audio output card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5-pin terminal blocks (ports); Analog (-3db): >100kHz, Digital: 32kHz - 192kHz sample frequency (total bandwidth); 5.8W (power consumption). Also: 0 deg to +40 degC (32 deg to 104 degF) (operating temperature); -40 deg to +70 degC (-40 deg to 158 degF) (storage temperature); 10% to 90%, RHL non-condensing (humidity); CE (safety regulatory compliance); Complies with appropriate requirements of RoHs and WEEE (environmental regulatory compliance).

PORTS	2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5-pin terminal blocks
TOTAL BANDWIDTH	Analog (-3db): >100kHz, Digital: 32kHz - 192kHz sample frequency
POWER CONSUMPTION	5.8W
OPERATING TEMPERATURE	0 deg to +40 degC (32 deg to 104 degF)
STORAGE TEMPERATURE	-40 deg to +70 degC (-40 deg to 158 degF)
HUMIDITY	10% to 90%, RHL non-condensing
SAFETY REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
