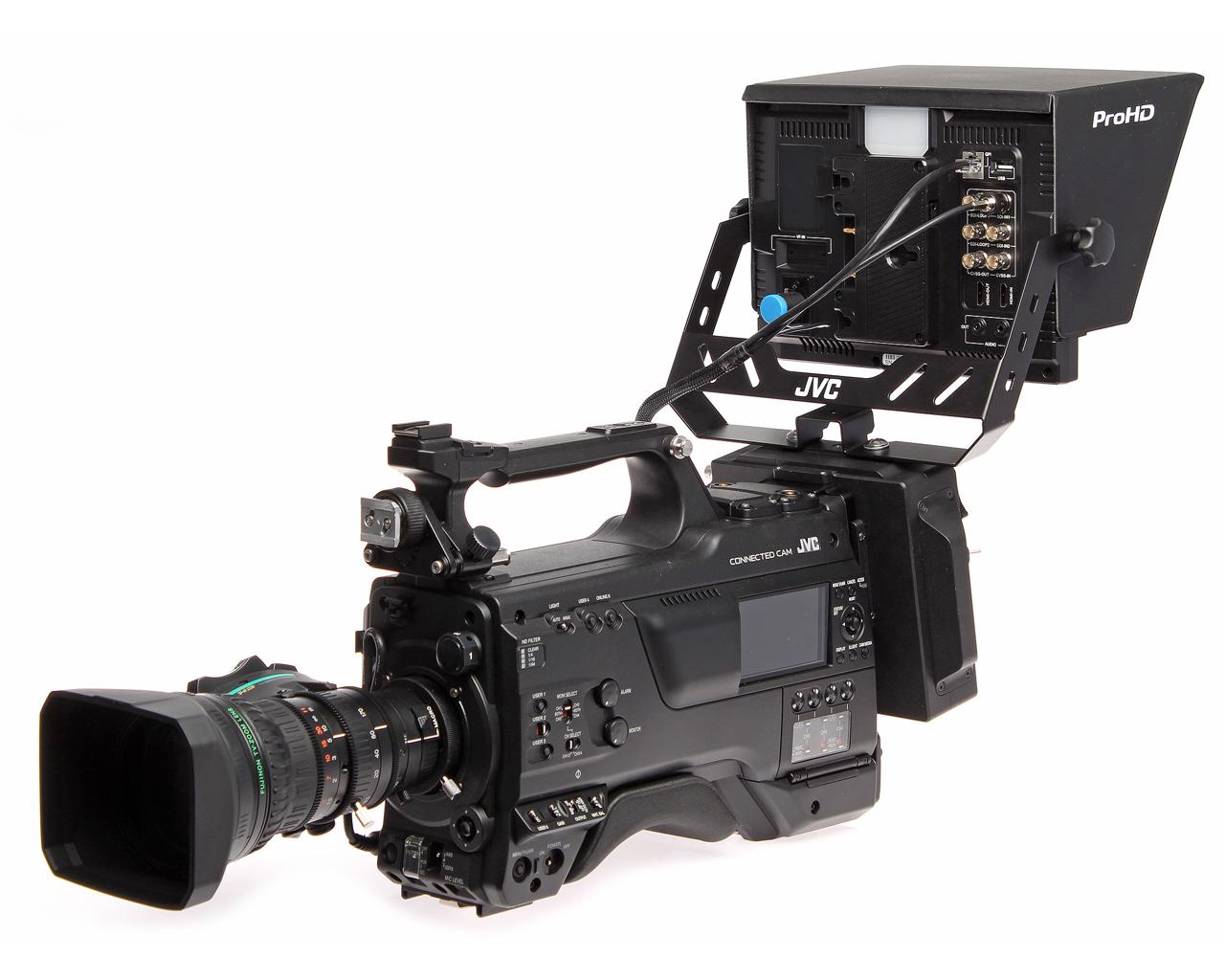

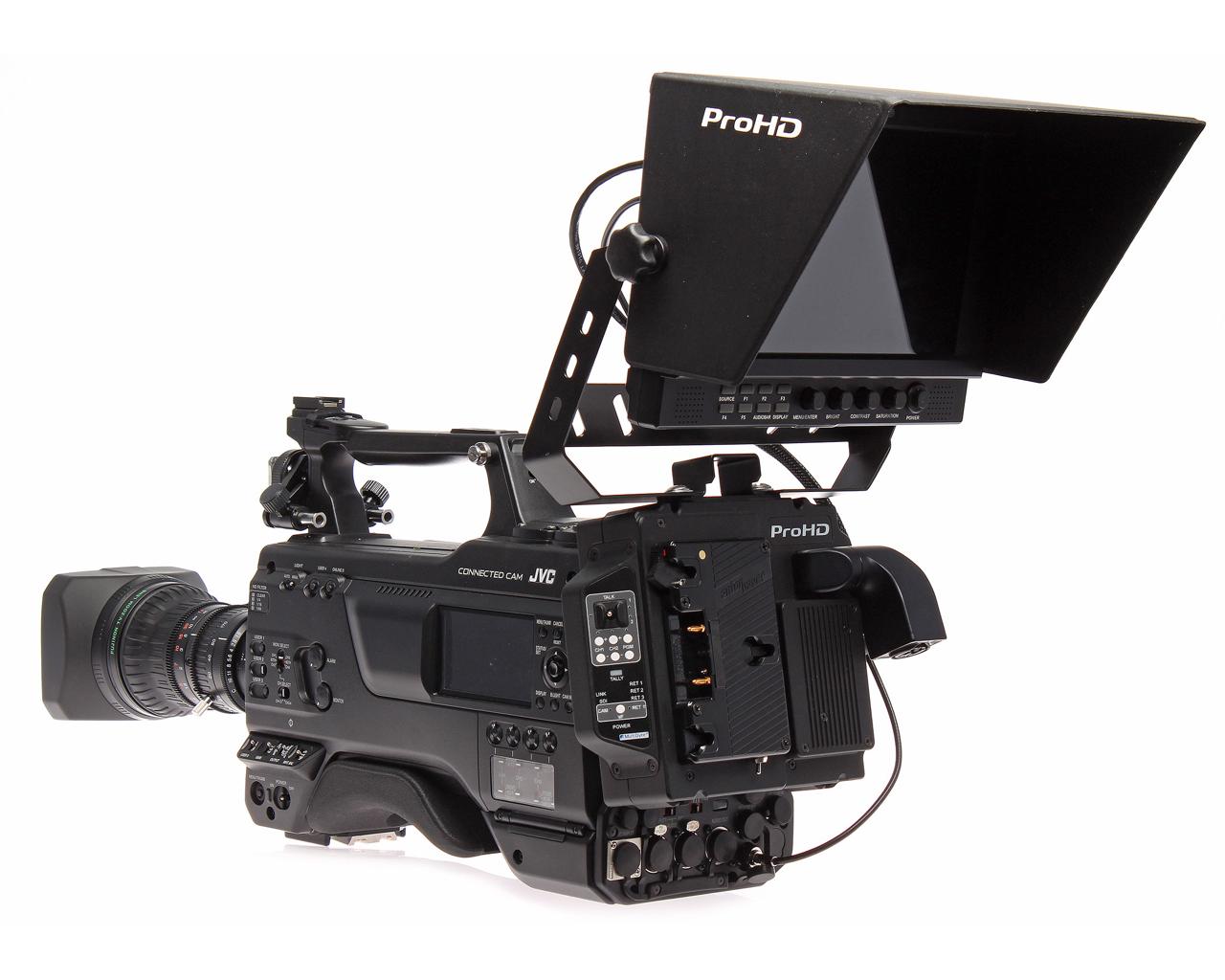

JVC GY-HC900STU Studio Camera

The GY-HC900STU is the studio configuration of JVC's GY-HC900 broadcast camera, offered here as a demo unit. It shares the same three 2/3-inch CMOS sensors and image path as the rest of the GY-HC900 line, delivering high sensitivity, low noise, and wide dynamic range, but ships without a lens, viewfinder, or wireless LAN so it can be built into a fiber-connected studio or EFP chain.

Footage records to dual SDHC/SDXC card slots as 10-bit 4:2:2 H.264 at up to 50 Mbps, with 1080p slow motion to 120 fps. The 68-pin fiber connector and two 3G-SDI outputs feed a base station, switcher, or router in a live installation. As a demo unit it carries a 1 year JVC warranty.

Image Sensors	Three 2/3-inch CMOS
Lens Mount	B4 bayonet (2/3-inch)
Configuration	No lens, no viewfinder, no wireless LAN
Recording	H.264 (.MOV) 10-bit 4:2:2 to 50 Mbps
Media	Dual SDHC/SDXC card slots
Slow Motion	1080p at 120 fps
Sensitivity	F12 at 60 Hz (extended mode)
Video Outputs	Two 3G-SDI, HDMI, composite, 68-pin fiber
