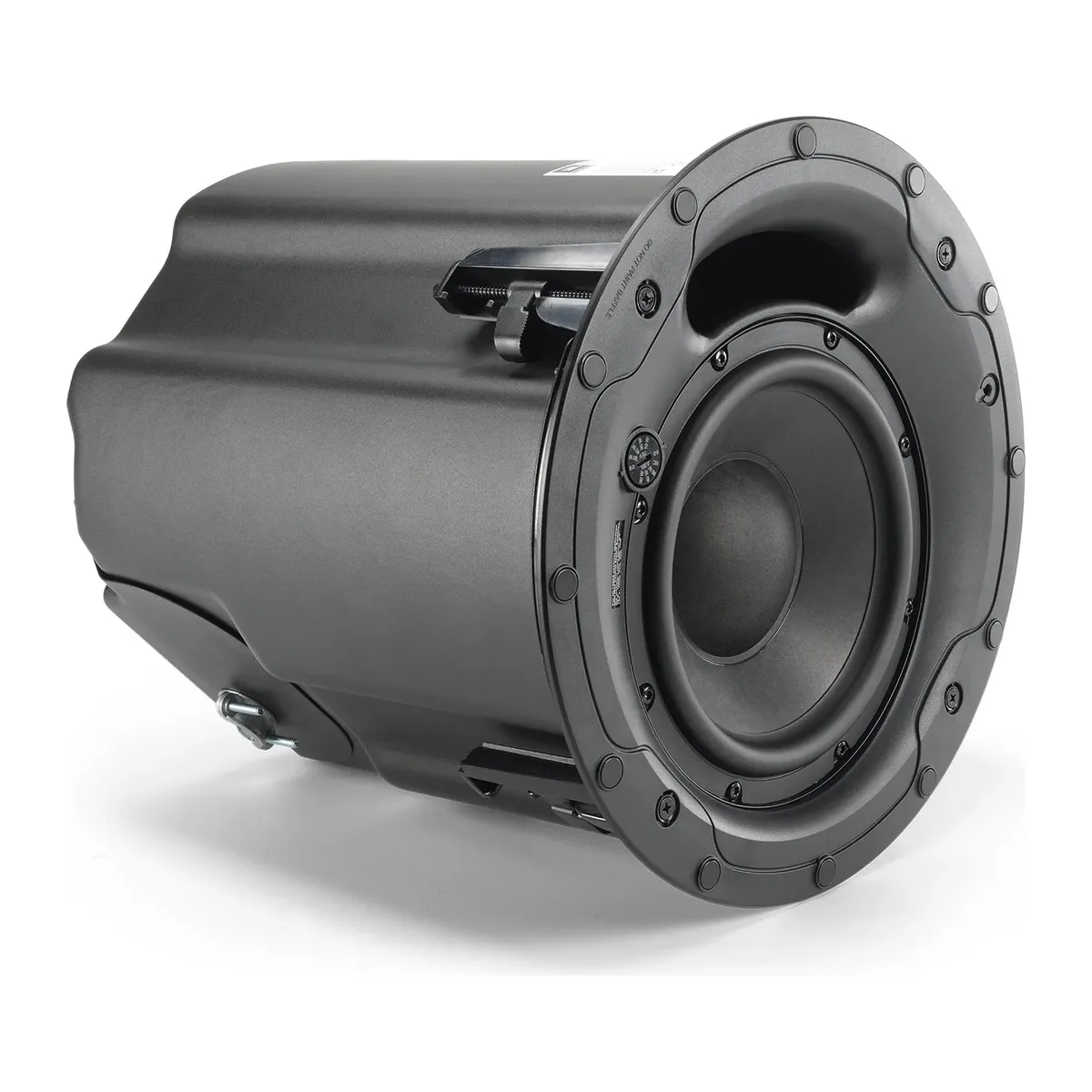

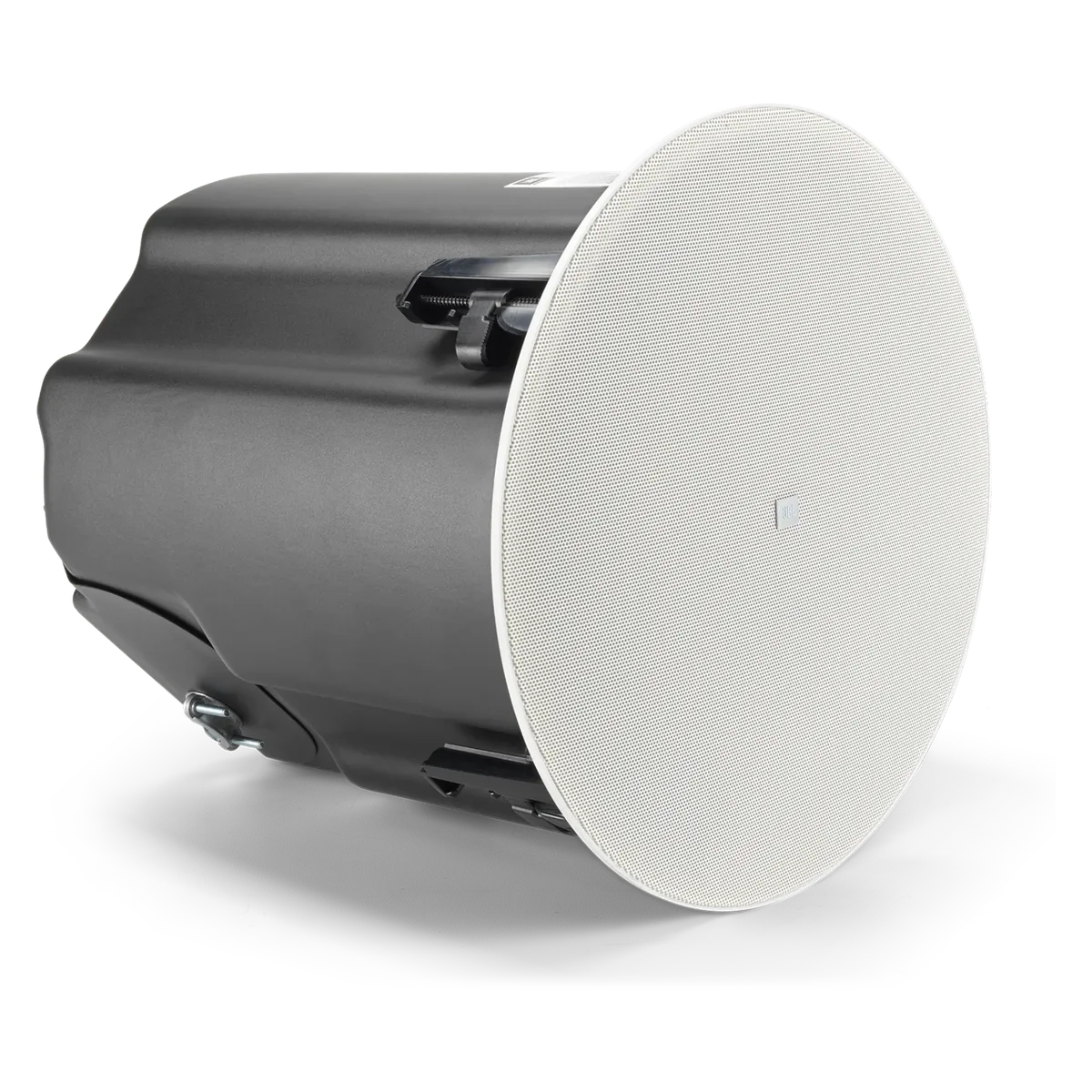

JBL Control 440CS/T 8" Ceiling Subwoofer

The Control 440CS/T is a 8" ceiling subwoofer, from the Control Contractor 400 Series. Transducers are 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet. Nominal coverage is -. JBL rates it at 150 W (600 W Peak), Cont. Pink Noise (2 hrs.) 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.). Maximum SPL at 1 m is 117 dB Cont. pink noise (123 dB peak, /2 loading). Nominal impedance is 8.

Transformer taps are 70 V: 80 W, 40 W, 20 W & 10 W 100 V: 80 W, 40 W, 20 W. Environmental rating: IP rating: IP33 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 351mm (13.8 in) H x 342 mm (13.5 in) dia. 337mm (13.3 in) from bottom of ceiling tile to top of backcan.

Type	8" Ceiling Subwoofer
Frequency Range (-10 dB)	32Hz - 300Hz
Power Capacity	150 W (600 W Peak), Cont. Pink Noise (2 hrs.) 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W)	95dB in ceiling near corner (/2 loading)
Coverage Angle	-
Maximum SPL (1m)	117 dB Cont. pink noise (123 dB peak, /2 loading)
Nominal Impedance	8
Transformer Taps	70 V: 80 W, 40 W, 20 W & 10 W 100 V: 80 W, 40 W, 20 W
Drivers	200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
