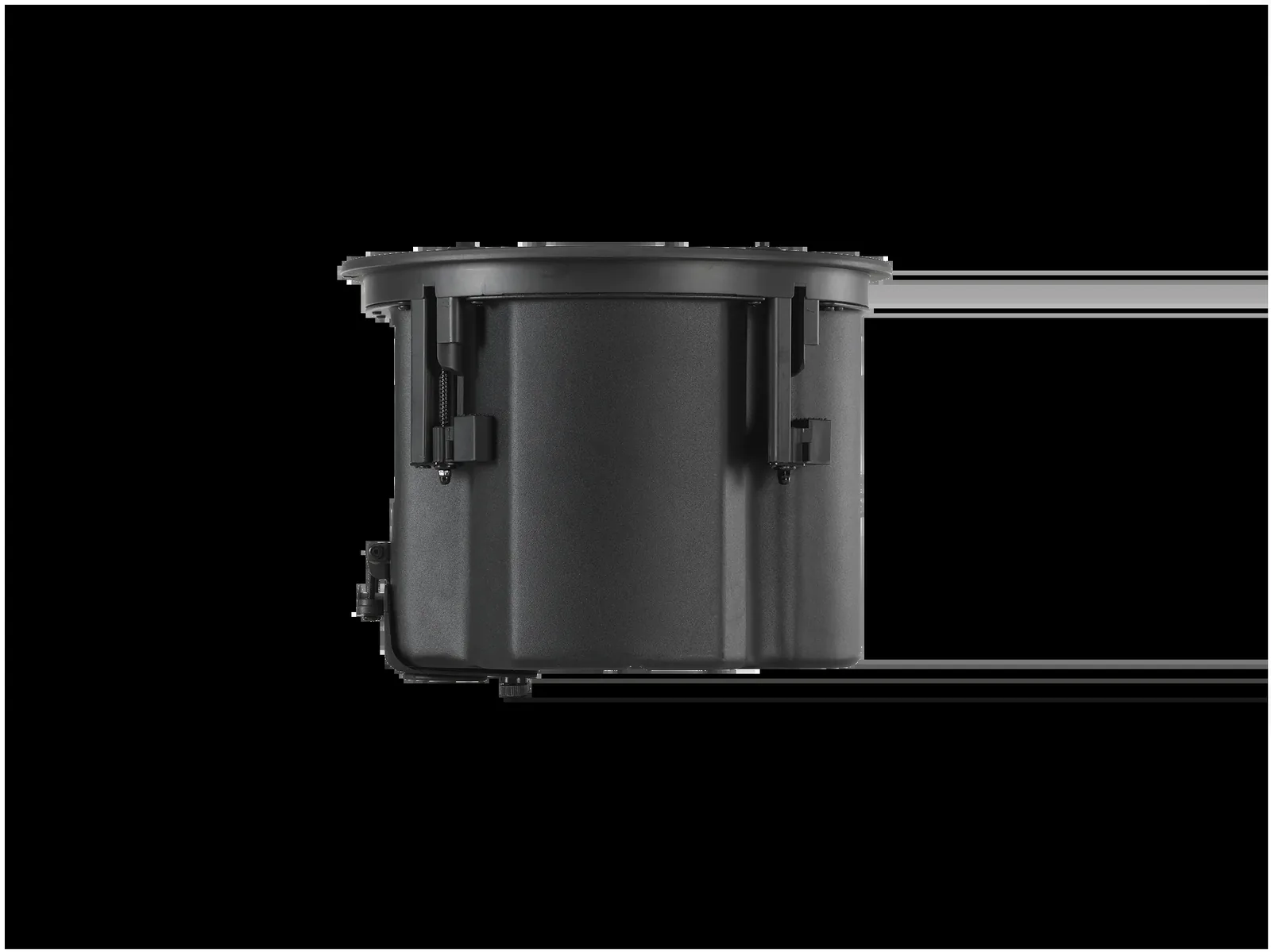

JBL Control 426C/T-LS 6.5" CRBI-Equipped Two-Way Coaxial Ceiling Loudspeaker for Life Safety Applications

The Control 426C/T-LS is a 6.5" CRBI-Equipped two-way coaxial ceiling loudspeaker for life safety applications, from the Control Contractor 400 Series. Transducers are LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly. Nominal coverage is 110 degrees conical. JBL rates it at 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs). Maximum SPL at 1 m is 109 dB continuous pink noise (115 dB peak). Nominal impedance is 12.

Transformer taps are 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W. Environmental rating: IP33 rating per EN/IEC 60529. Operating temperature 0 degrees C to 45 degrees C. It measures 190 mm (7.4 in) H x 253 mm (9.9 in) dia. 181 mm (7.1 in) from bottom of ceiling tile to top of backcan. Ordering covers CONTROL-426C/T-LS and C426C/T-LS; pick the one you need above and the SKU and price follow your choice.
