Hartke LX5500 500-Watt Bass Amplifier Head

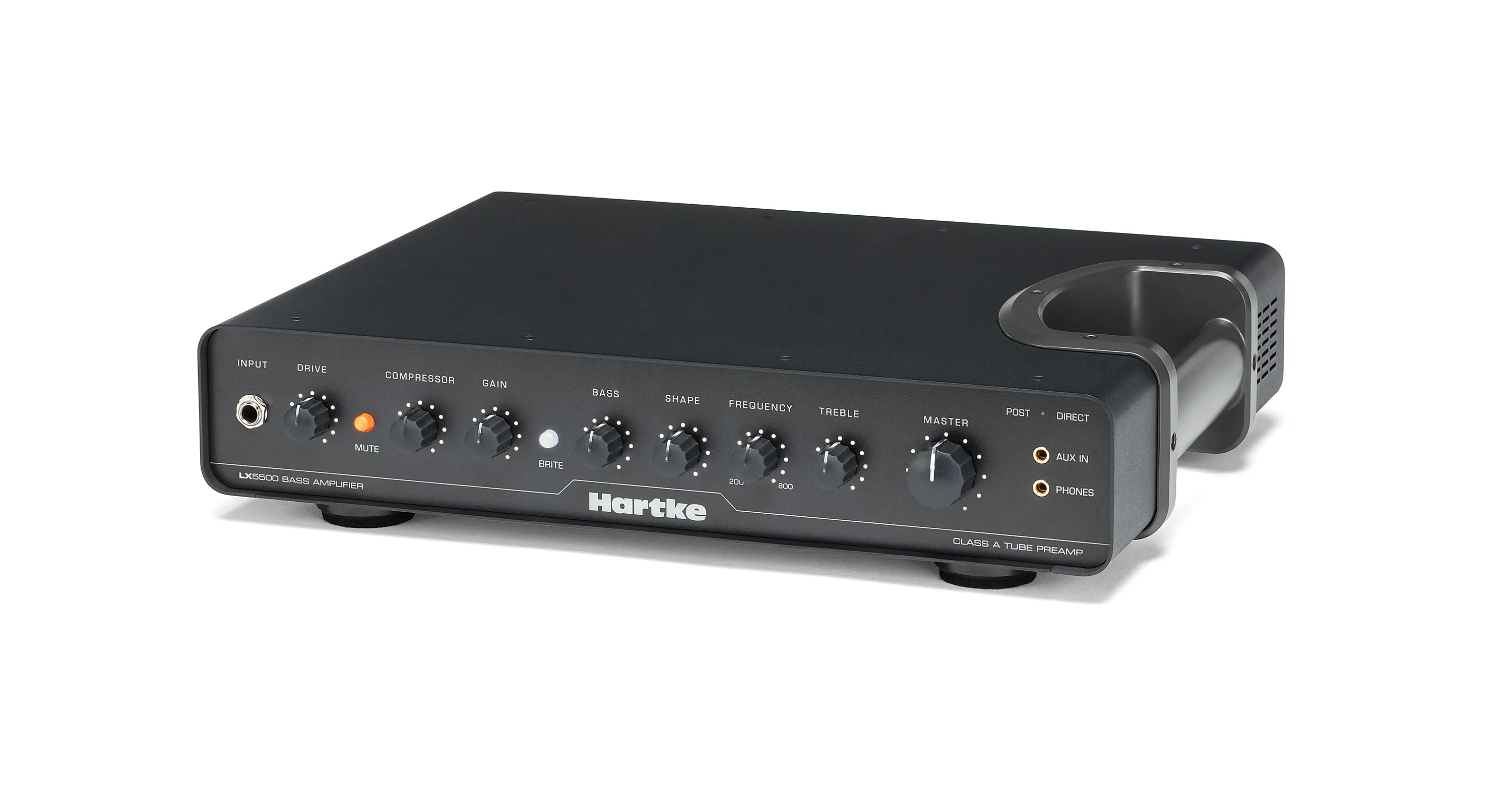

The LX5500 delivers 500 watts continuous at 4 ohms (330 W at 8 ohms) from a Class D power section driven by a real Class A, 12AX7-tube preamp, weighing just 8 pounds. Controls cover Bass (+8/-14 dB at 80 Hz), Treble (+5/-20 dB at 6 kHz), a sweepable Frequency knob from 200 Hz to 800 Hz, a Shape voicing control, a Brite button, and a footswitchable Drive circuit with a fixed 2:1 compressor for consistent low-end control.

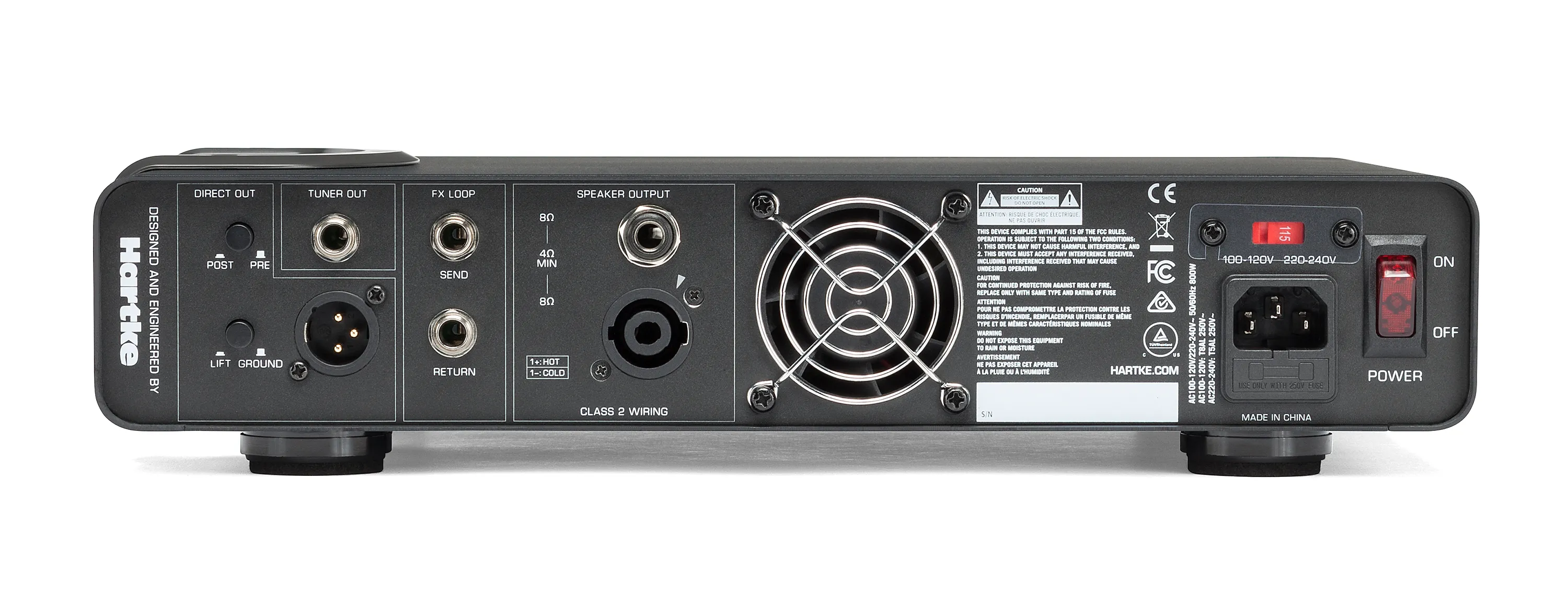

I/O covers a balanced XLR direct output with a pre/post EQ switch, an effects send/return loop, a tuner output, an 1/8-inch stereo aux input, and both 1/4-inch and Speakon-compatible speaker jacks.

Power Output	500 W at 4 ohms, 330 W at 8 ohms
Preamp	Class A with 12AX7 tube
EQ	Bass +8/-14 dB @ 80 Hz, Treble +5/-20 dB @ 6 kHz, Shape +11/-3 dB, sweepable Frequency 200 Hz - 800 Hz
Drive	Footswitchable drive circuit, Brite button +8 dB
Compressor	Fixed 2:1 ratio
I/O	XLR direct out (pre/post), effects loop, tuner out, aux in, headphone out
Speaker Outputs	1/4 inch and Speakon-compatible
Dimensions / Weight	14 x 10.6 x 2.6 in (355 x 270 x 73 mm) / 8 lb (3.6 kg)
