Hartke LX8500 800-Watt Bass Amplifier Head

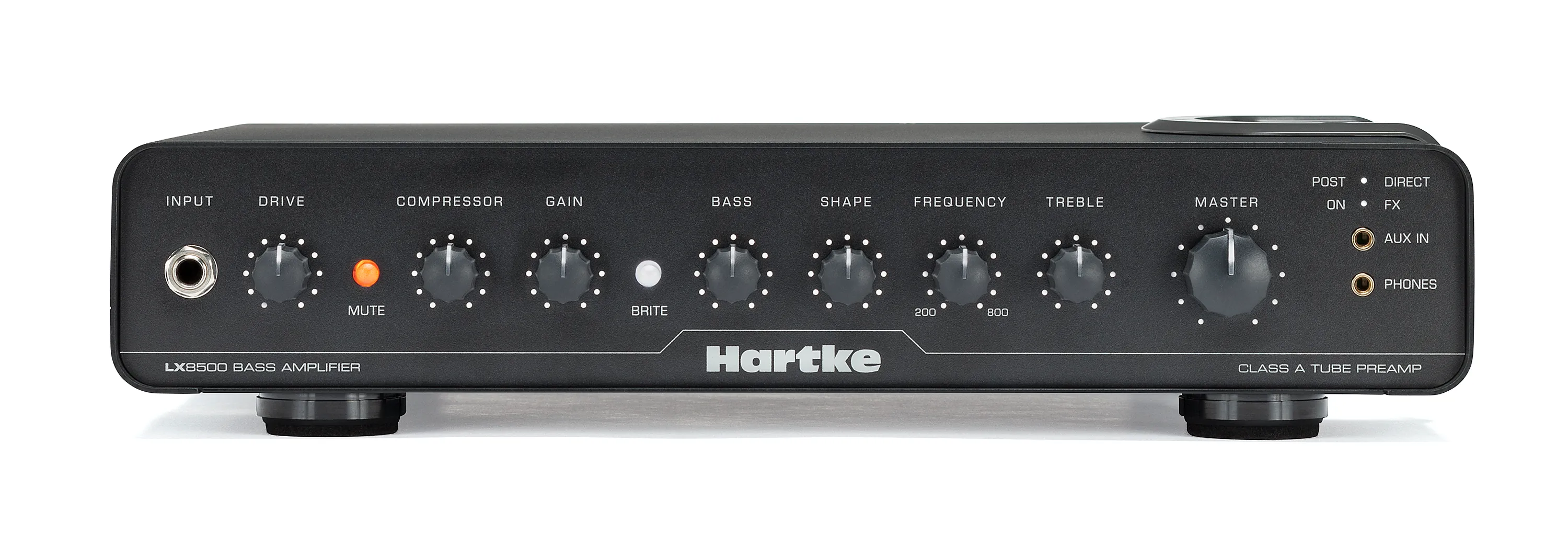

The LX8500 puts 800 watts at 4 ohms (525 W at 8 ohms) into a slim, rugged head that delivers full-rig tone without the setup. Its Class A preamp runs on a real 12AX7 tube ahead of a Class D power section, with Bass (+8/-14 dB at 80 Hz), Treble (+5/-20 dB at 6 kHz), a sweepable Frequency control from 200 Hz to 800 Hz, and a Shape voicing knob, plus a Brite switch and a footswitchable Drive circuit for grit on demand.

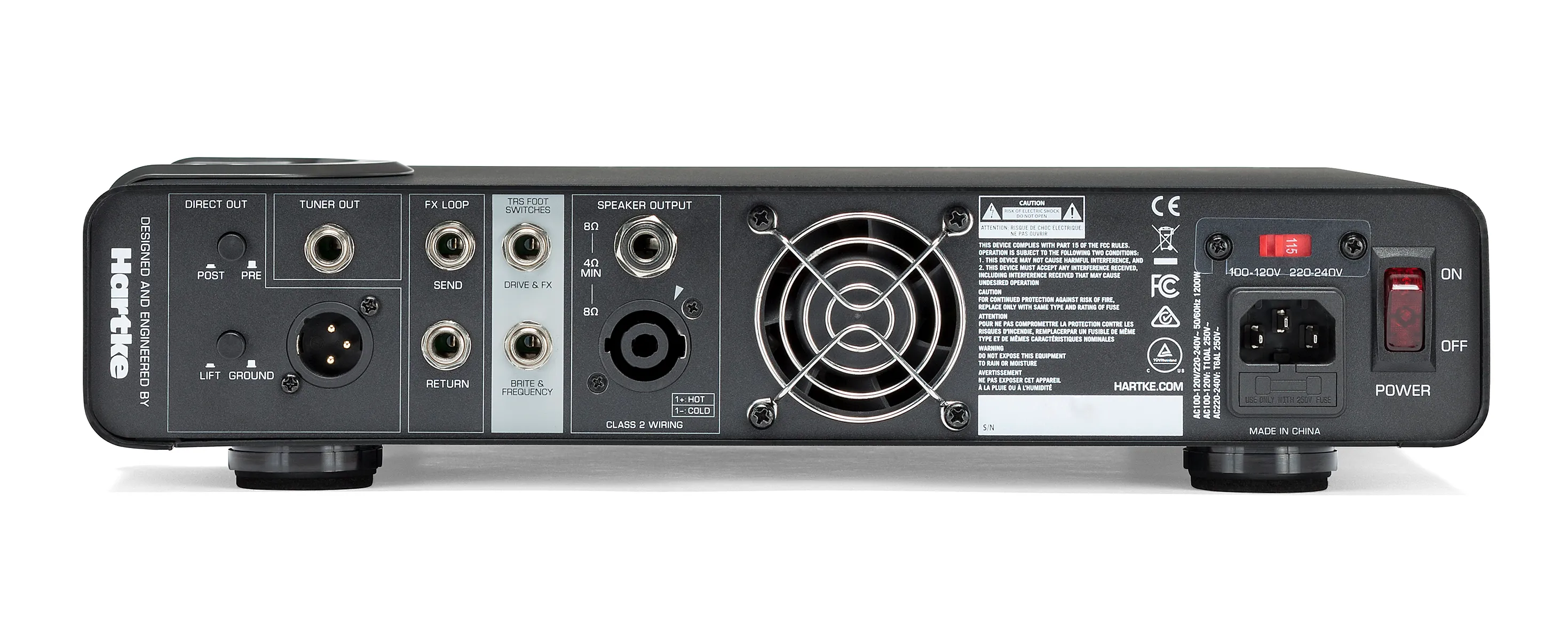

A fixed 2:1 compressor with adjustable threshold keeps the low end controlled, and I/O covers a balanced XLR direct out with a pre/post EQ switch, an effects loop, a tuner out, and both 1/4-inch and twist-and-lock speaker jacks. Two TRS footswitch jacks handle remote drive and mute, and an 1/8-inch aux input plus headphone out cover practice duty.
| Power Output | 800 W at 4 ohms, 525 W at 8 ohms |
|---|---|
| Preamp | Class A with 12AX7 tube |
| EQ | Bass +8/-14 dB @ 80 Hz, Treble +5/-20 dB @ 6 kHz, Shape +11/-3 dB, sweepable Frequency 200 Hz - 800 Hz |
| Drive | Footswitchable drive circuit, Brite switch +8 dB @ 10 kHz |
| Compressor | Fixed 2:1 ratio, adjustable threshold |
| I/O | XLR direct out (pre/post), effects loop, tuner out, 2 x footswitch jacks |
| Speaker Outputs | 1/4 inch and twist-and-lock |
| Dimensions / Weight | 14 x 12 x 3 in / 8.5 lb |
