Fostex 6301ND Single-Unit Powered Reference Monitor

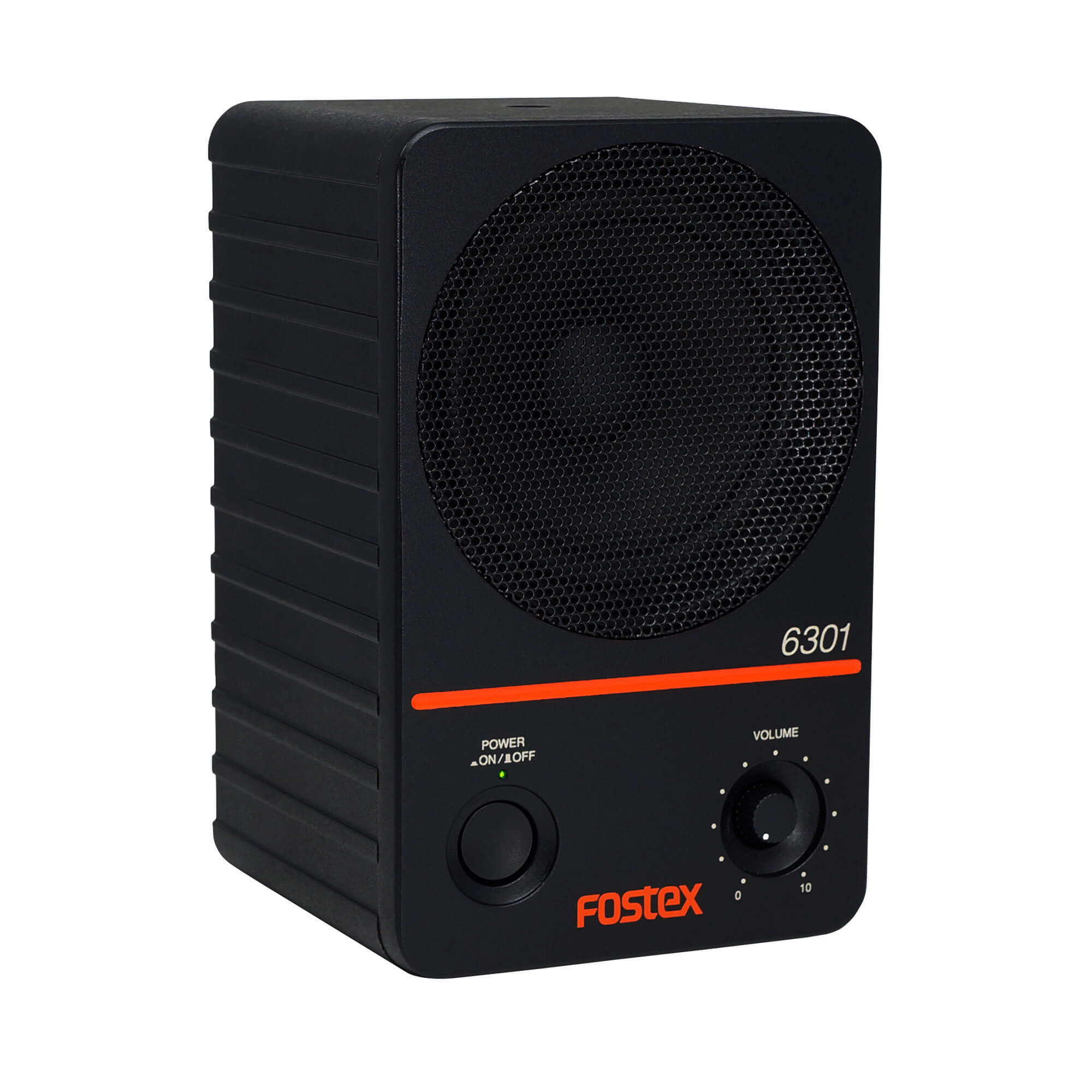

The Fostex 6301ND is a compact powered reference monitor built around a single 10cm (4-inch) full-range driver and a 20W Class-D amplifier in one small cabinet. It is the confidence monitor you find on broadcast desks, edit bays, and PA racks where one honest near-field speaker has to check a feed at arm's length. The flat front panel keeps the power and level controls out of the way so a knob is not knocked mid-session.
The ND is the digital member of the family: it accepts an AES/EBU digital stream on XLR as well as an unbalanced 1/4-inch (TS) analog input, so it can lock straight to a digital feed without an outboard converter. It runs on universal AC and drops into an auto standby mode to save power between cues. Each 6301ND ships as a single unit rather than a stereo pair.
| Driver | 10cm (4-inch) full-range cone |
|---|---|
| Amplifier | 20W Class-D (PWM) |
| Frequency Response | 70-15,000 Hz |
| Input | AES/EBU digital (XLR) plus 1/4-inch (TS) unbalanced |
| Input Impedance | 10 kOhm minimum |
| Maximum SPL | 98 dB |
| Dimensions | 120 x 189 x 120 mm (W x H x D) |
| Power | AC 100-230V, 50/60 Hz |
| Configuration | Sold as single unit |
