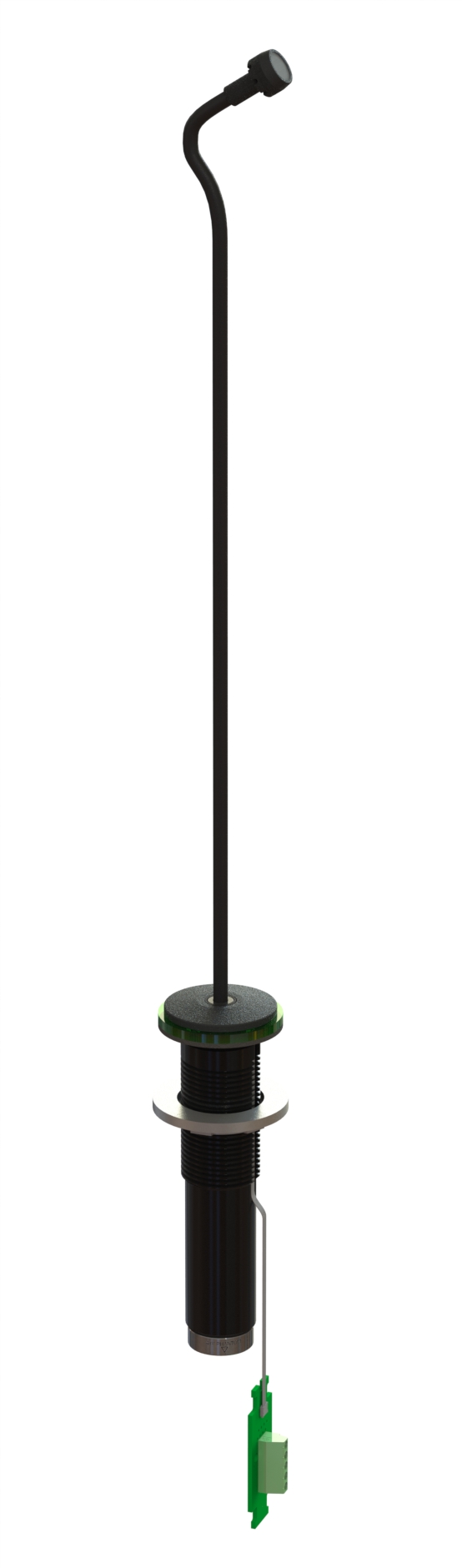

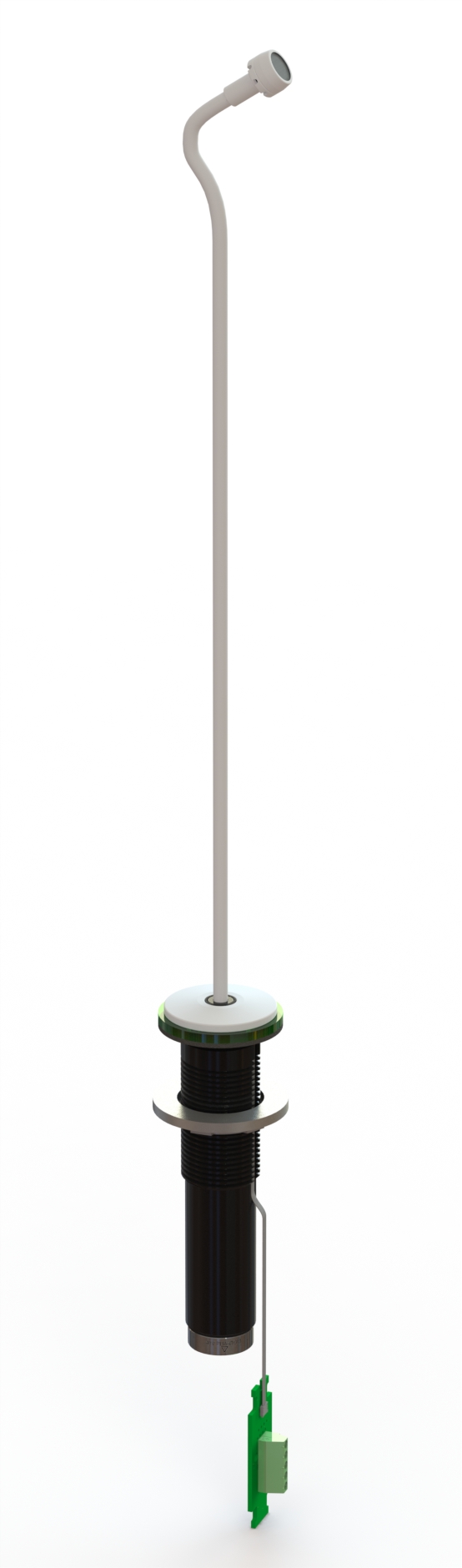

Earthworks IML12 12-Inch Gooseneck Installation Microphone
The IML12 is the longest gooseneck in Earthworks' IML installation series, for podiums and deep conference tables where the capsule needs real reach toward the speaker. It shares the same cardioid capsule and 30 Hz to 30 kHz response as the rest of the IML line.
A LumiComm dual-color LED touch ring at the base is powered separately from the mic's 48 V phantom feed and can be wired into the room's control system. Mounts flush in a table, ceiling, or wall with the included lock nut.
| Microphone Type | Back-electret condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 30 Hz - 30 kHz, +/- 2 dB at 1 ft (30 cm) |
| Sensitivity | 10 mV/Pa (-40 dBV/Pa) |
| Maximum Acoustic Input | 145 dB SPL |
| Power Requirements | 48 V phantom, 10 mA |
| Noise | 22 dB SPL (A-weighted) |
| Light Ring | Dual red/green LED, Phoenix or RJ45 connector, 8 - 28 VDC at 85 - 170 mA |
| Output | XLR-3 (pin 2+) |
| Weight | 0.28 lb (125 g) |
