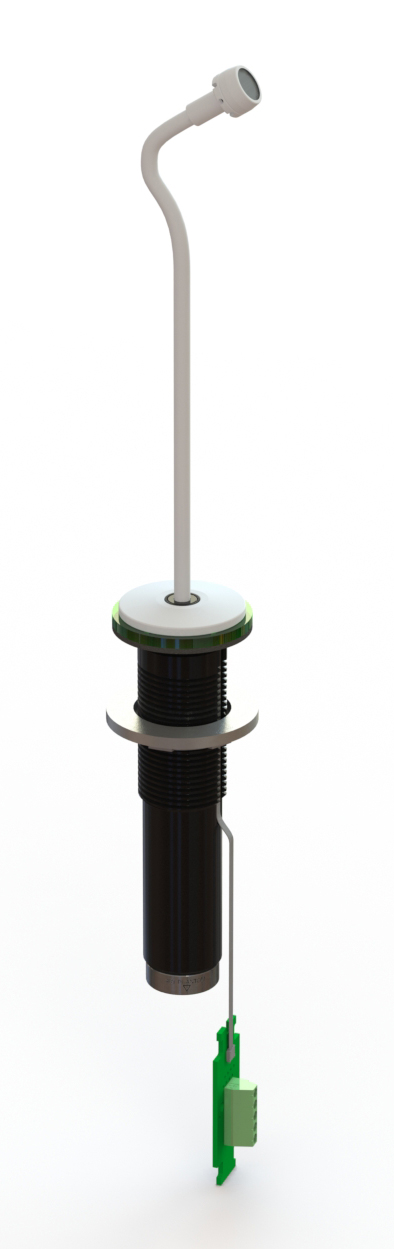

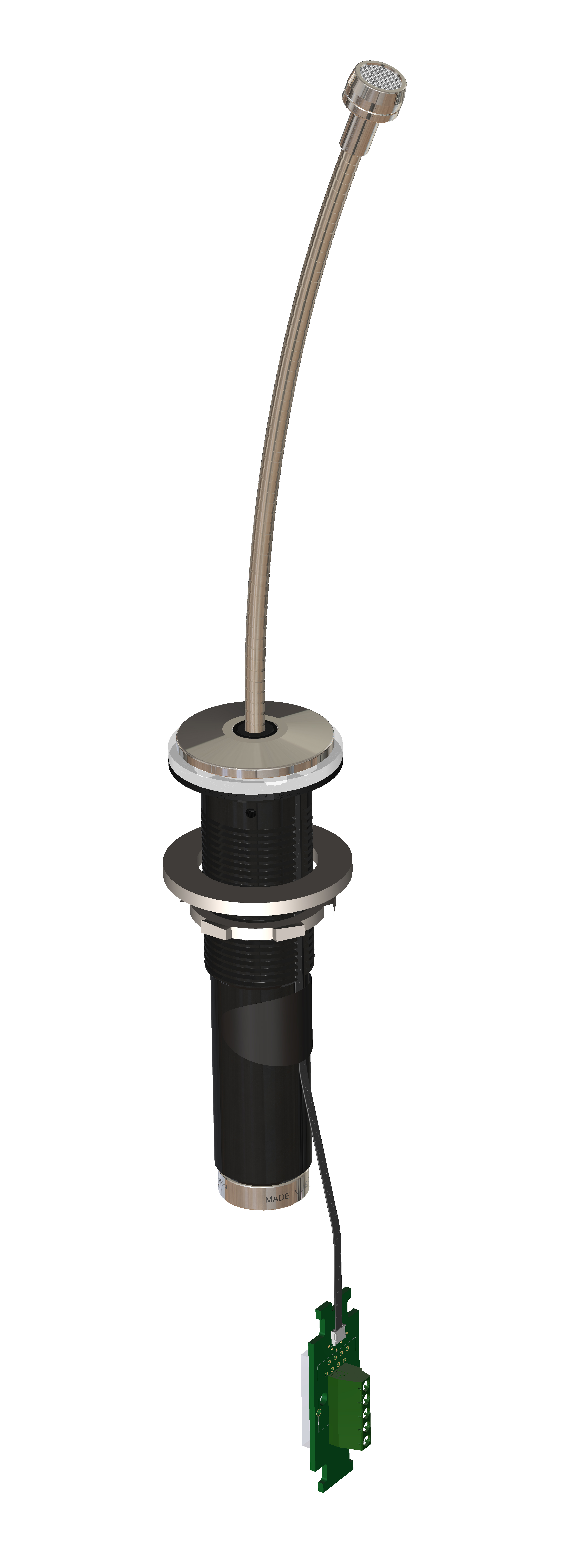

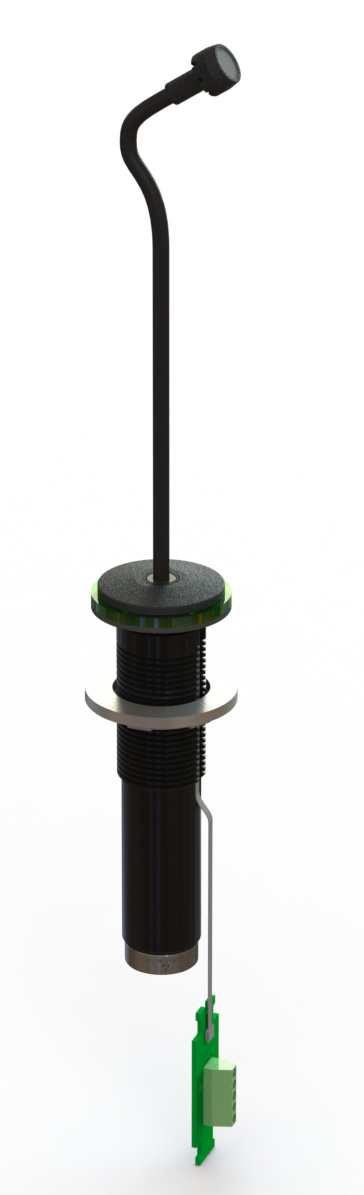

Earthworks IML6 6-Inch Gooseneck Installation Microphone
The IML6 is the 6 in gooseneck length in Earthworks' IML installation series, putting the capsule closer to a speaker seated slightly further from the table edge than the IML3 covers. It shares the same cardioid capsule and 30 Hz to 30 kHz response across the whole IML line.
A LumiComm dual-color LED touch ring at the base is powered separately from the mic's 48 V phantom feed and can be wired into the room's control system. Mounts flush in a table, ceiling, or wall with the included lock nut. Available in black, white, or stainless steel finish - select above.
| Microphone Type | Back-electret condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 30 Hz - 30 kHz, +/- 2 dB at 1 ft (30 cm) |
| Sensitivity | 10 mV/Pa (-40 dBV/Pa) |
| Maximum Acoustic Input | 145 dB SPL |
| Power Requirements | 48 V phantom, 10 mA |
| Noise | 22 dB SPL (A-weighted) |
| Light Ring | Dual red/green LED, Phoenix or RJ45 connector, 8 - 28 VDC at 85 - 170 mA |
| Output | XLR-3 (pin 2+) |
| Weight | 0.28 lb (125 g) |
