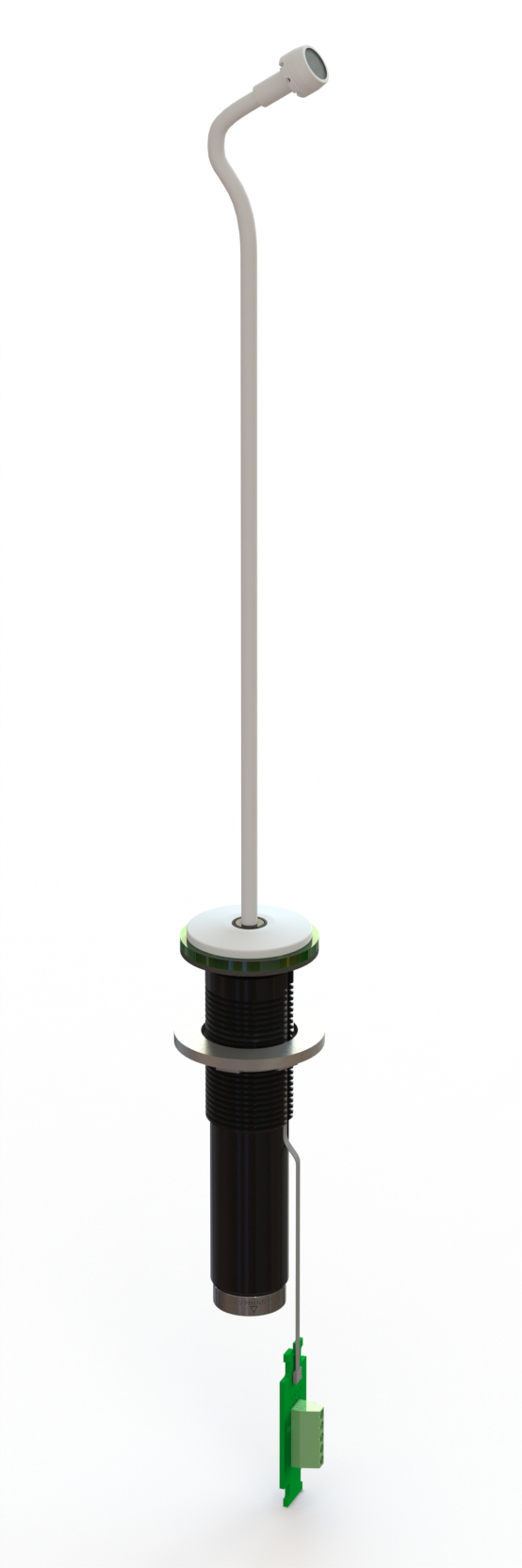

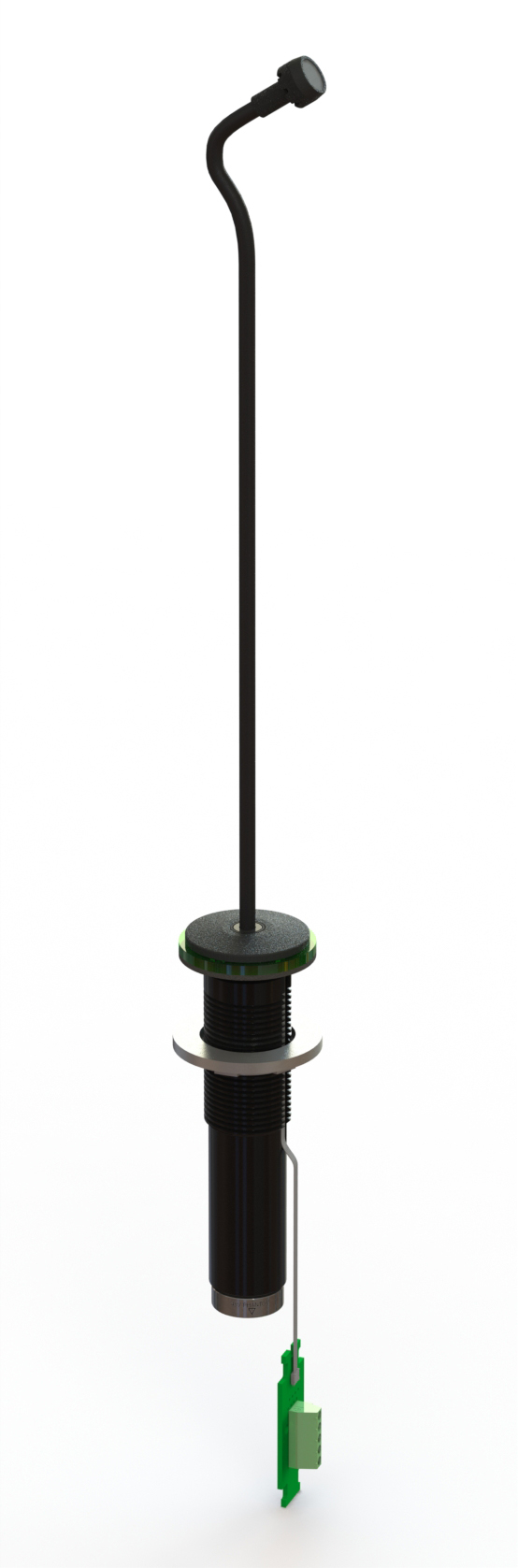

Earthworks IML10 10-Inch Gooseneck Installation Microphone
The IML10 extends the IML gooseneck to 10 in, for conference tables or podiums where the capsule needs to reach further toward the speaker than the shorter IML lengths allow. It keeps the same cardioid capsule and 30 Hz to 30 kHz response as the rest of the IML line.
A LumiComm dual-color LED touch ring at the base is powered separately from the mic's 48 V phantom feed and can be wired into the room's control system. Mounts flush in a table, ceiling, or wall with the included lock nut.
| Microphone Type | Back-electret condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 30 Hz - 30 kHz, +/- 2 dB at 1 ft (30 cm) |
| Sensitivity | 10 mV/Pa (-40 dBV/Pa) |
| Maximum Acoustic Input | 145 dB SPL |
| Power Requirements | 48 V phantom, 10 mA |
| Noise | 22 dB SPL (A-weighted) |
| Light Ring | Dual red/green LED, Phoenix or RJ45 connector, 8 - 28 VDC at 85 - 170 mA |
| Output | XLR-3 (pin 2+) |
| Weight | 0.28 lb (125 g) |
