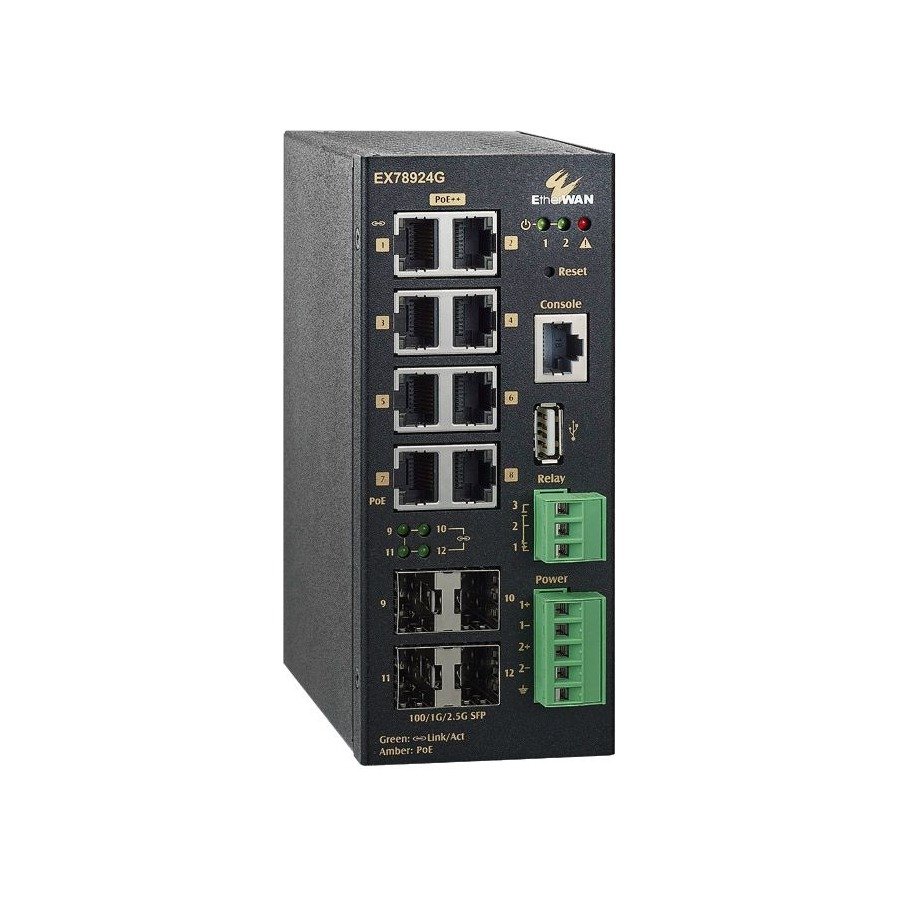

EtherWAN EX78900G Series Hardened Managed 8-Port Gigabit PoE++ and SFP Ethernet Switch

EtherWAN EX78900G Series is a hardened, managed Gigabit PoE++ switch built for cabinets and roadside enclosures where a commercial switch would not survive a season. Every model carries 8 Gigabit PoE ports plus 2 or 4 tri-rate 100/1000/2500BASE SFP uplinks, so a run can step up to 2.5G without a media converter.

This page carries the 3 orderable part numbers in this wave's shard; pick the one you need from the selector and the price, SKU and PoE budget follow it. Installation is DIN-rail mounting, with optional wall, rack and panel mounting. Specifications above are taken from the EtherWAN/prodj.com listing for this family.

Ethernet8 x 10/100/1000BASE-T(X) PoE++, 2 or 4 x 100/1000/2500BASE SFP
Casing MaterialMetal
Dimensions62mm x 125mm x 145mm (W x D x H)
Weight0.75kg (1.65lbs)
Power Input46-57VDC Redundant (Terminal block)
Installation TypeDIN-rail mounting; wall, rack, panel mounting optional
Operating Temp.-40 to 75 deg C (-40 to 167 deg F)
