EtherWAN EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter

Name: EtherWAN EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
Brand: EtherWAN
SKU: EL900-A-B-1-A
Availability: InStock

$307.00

EL900-A-B-1-A

Choose an option

EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter in 9 orderable configurations.

EtherWAN EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter converts copper Ethernet to fiber at the edge of the plant, so a run can leave the building without a repeater. The housing is aluminum case.

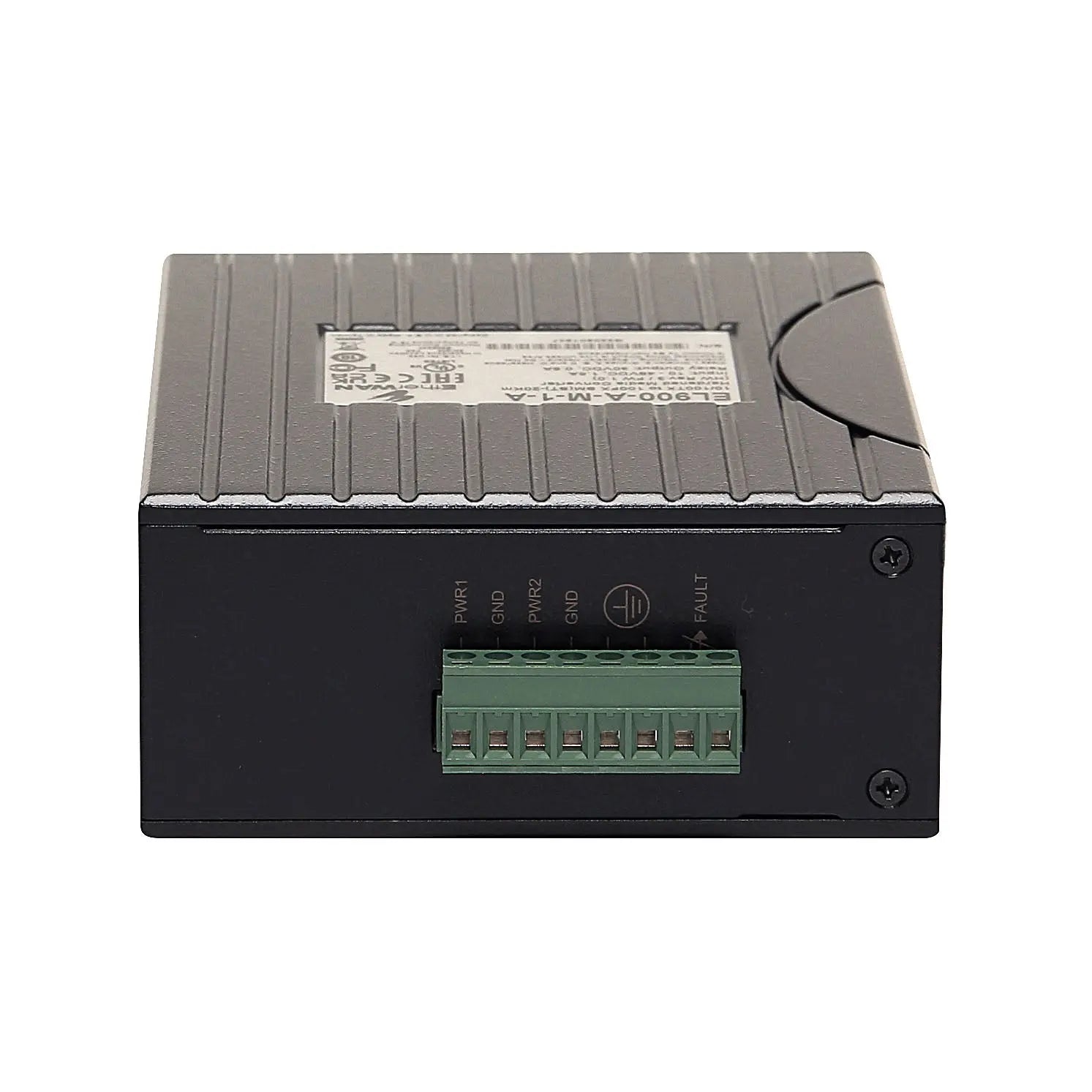

This page carries the 9 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is din-rail (top hat type 35mm) or panel mounting. Power input: 10-48VDC (DC Terminal Block). Specifications above are taken from the EtherWAN datasheet for this family.

Power Consumption	3.84W Max., 10-48VDC, 0.29-0.08A
Casing	Aluminum Case

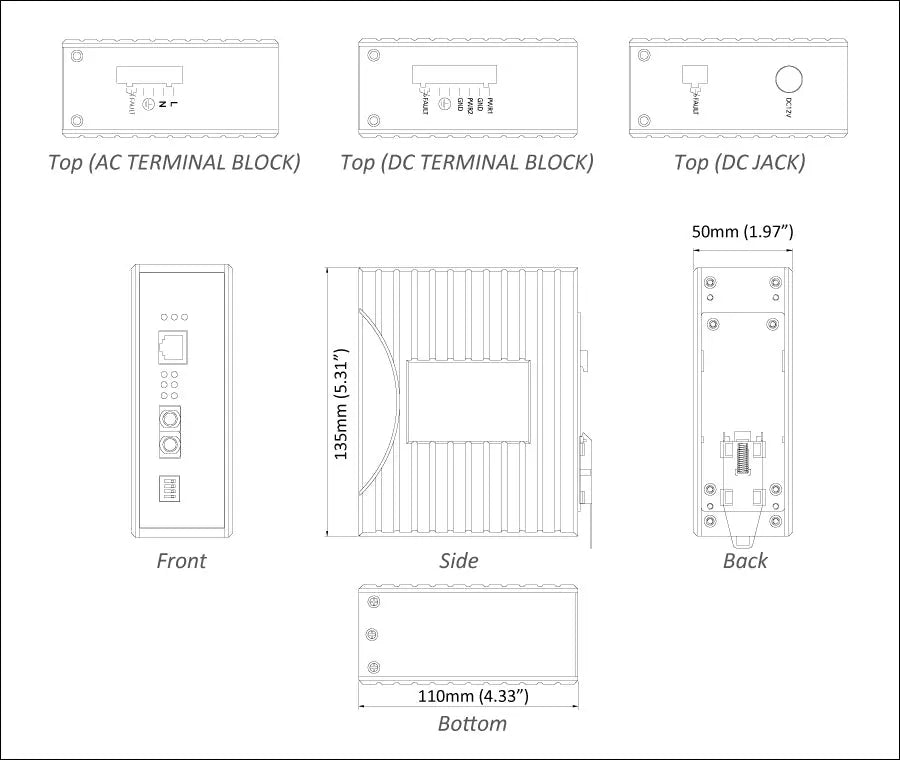

Dimensions	50mm x 110mm x 135mm (W x D x H) \| 1.97" x 4.33" x 5.31"
Weight	0.8Kg (1.76lbs.)

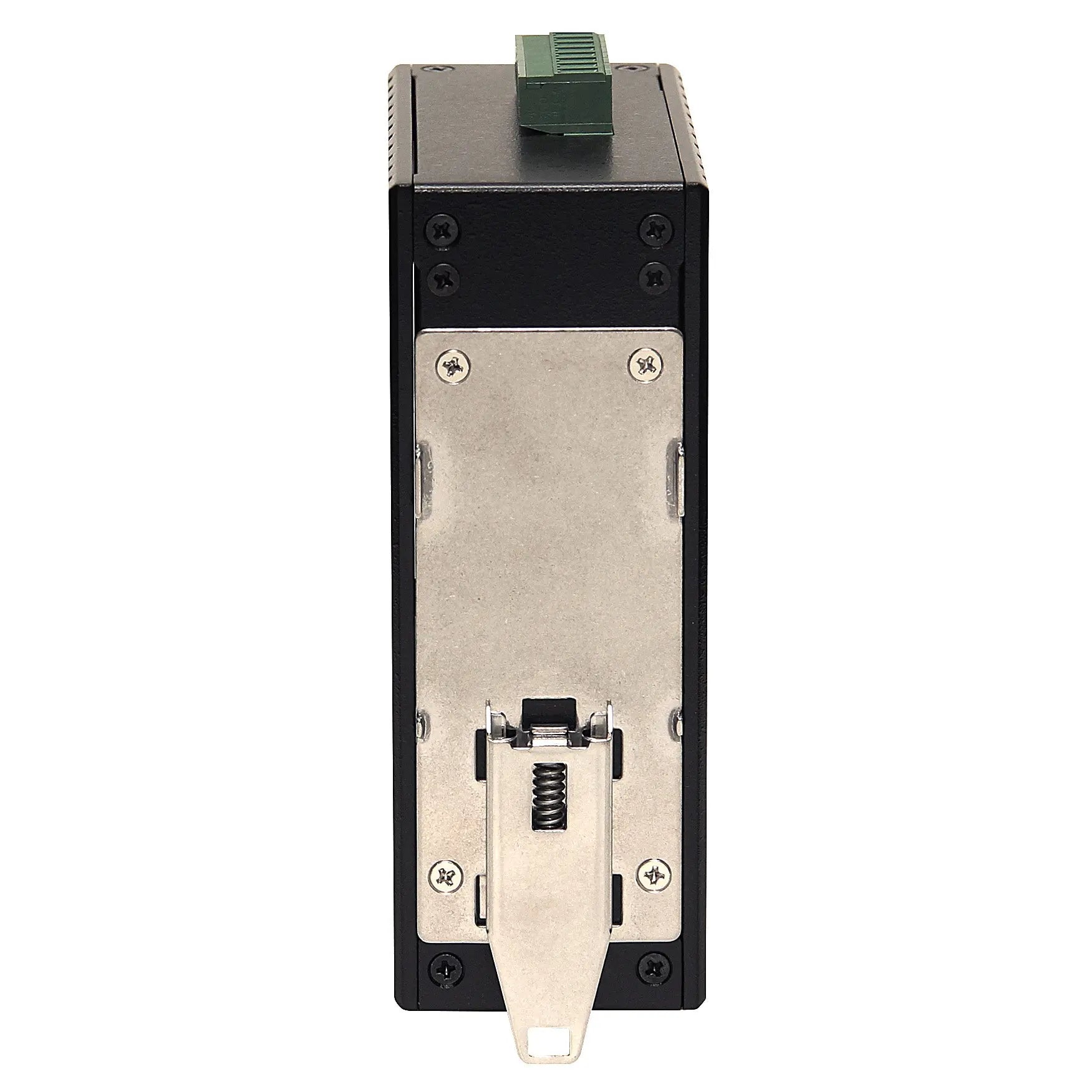

Installation	DIN-Rail (top hat type 35mm) or panel mounting
