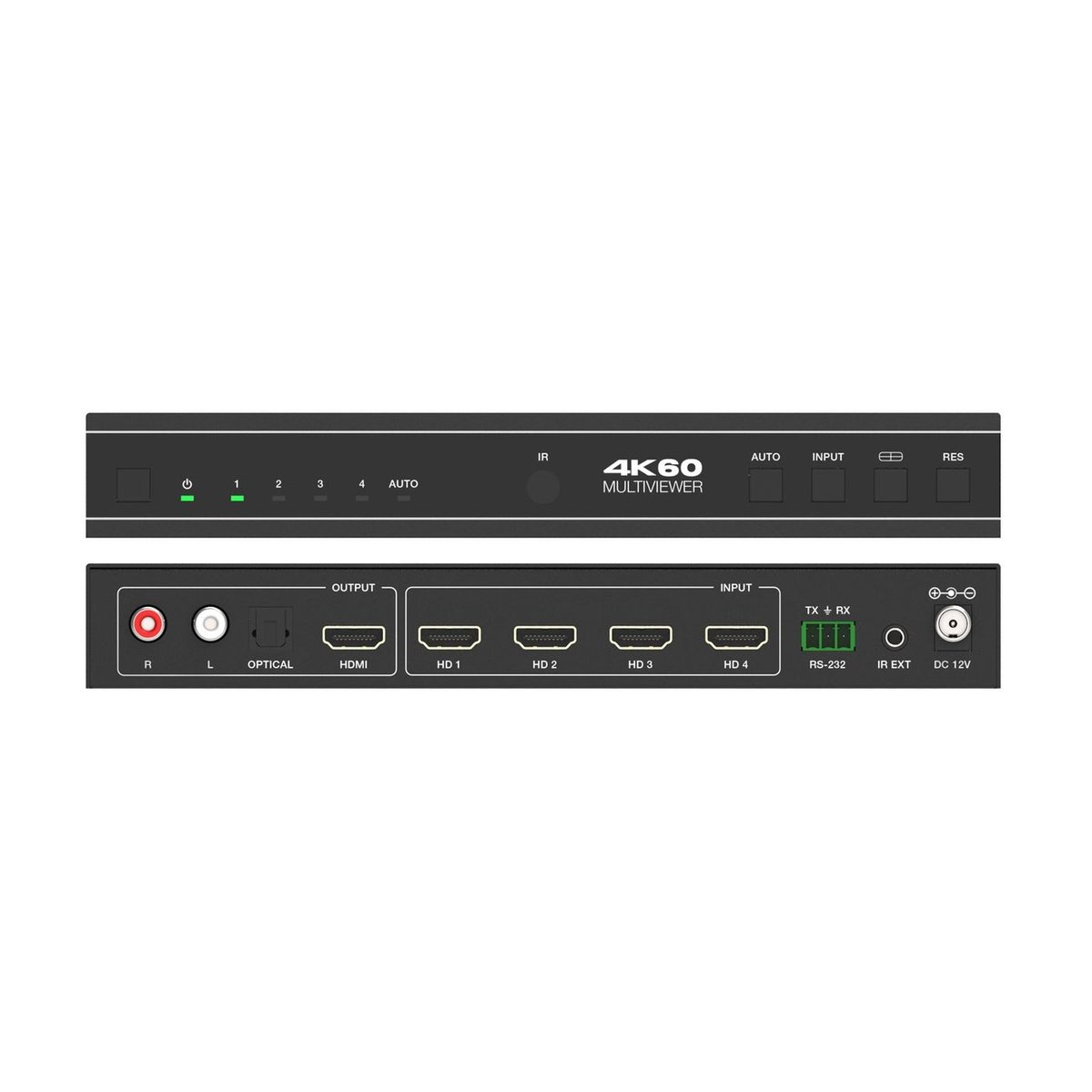

DVDO Switcher-41SS-MV 4K 4x1 Seamless HDMI Switcher with Multiview & Audio Output

The Switcher-41SS-MV is DVDO's 4K 4x1 Seamless HDMI Switcher with Multiview & Audio Output, from the hdmi switchers line. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant.

Support resolutions up to 4K@60Hz 18Gbps. Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel. 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2). Seamless switching in single screen display mode & fast switching in multiview display mode. Audio de-embedding via analog and optical fiber audio ports.

HDCP	HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Video	Support resolutions up to 4K@60Hz 18Gbps
Audio	Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
Feature	8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Signal Handling	Seamless switching in single screen display mode & fast switching in multiview display mode
Fiber	Audio de-embedding via analog and optical fiber audio ports
Control	Volume control and independent audio selection
Also	OSD navigation for advanced settings
Optics	Control via front panel buttons, IR remote, OSD menu navigation, control software, RS-232
Product Category	HDMI Switchers
Part Number	DVDO-Switcher-41SS-MV
