Datavideo HBT-16 4K HDBaseT Receiver Box

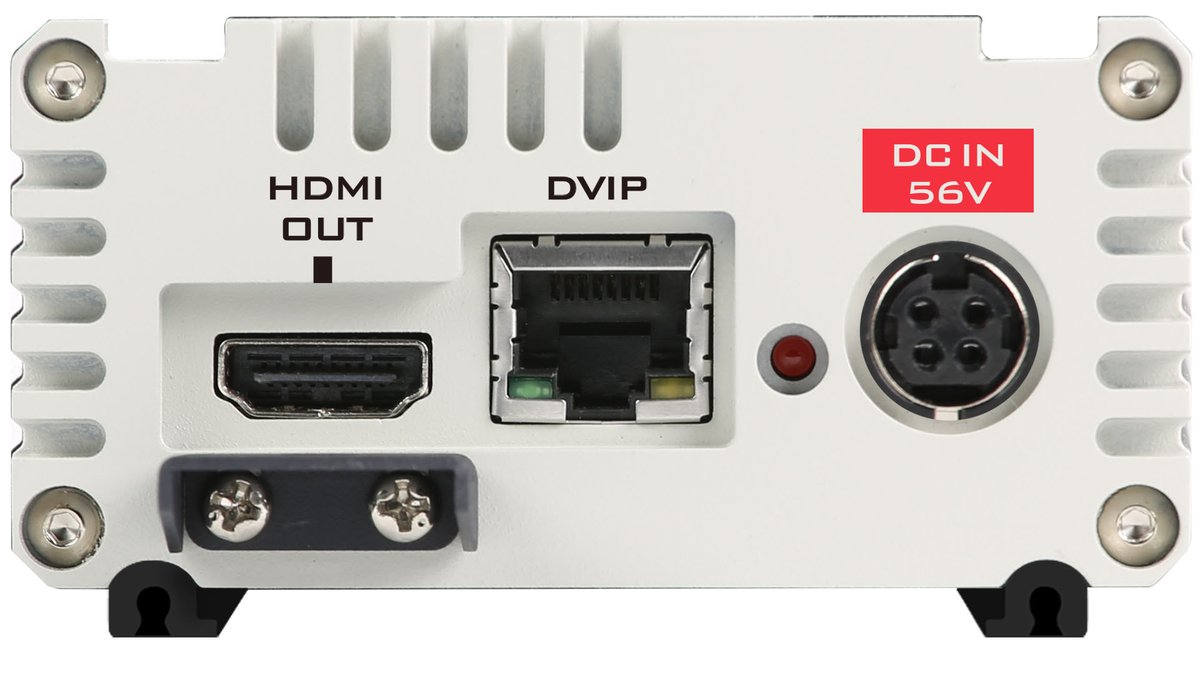

The HBT-16 is the matching receiver for the HBT-15. It takes the HDBaseT run on RJ-45 and outputs HDMI 2.0 at up to 2160p60, handling 4K60 4:4:4 8-bit and 4K60 4:2:0 10-bit within a single-link 600MHz (18 Gbps) path.

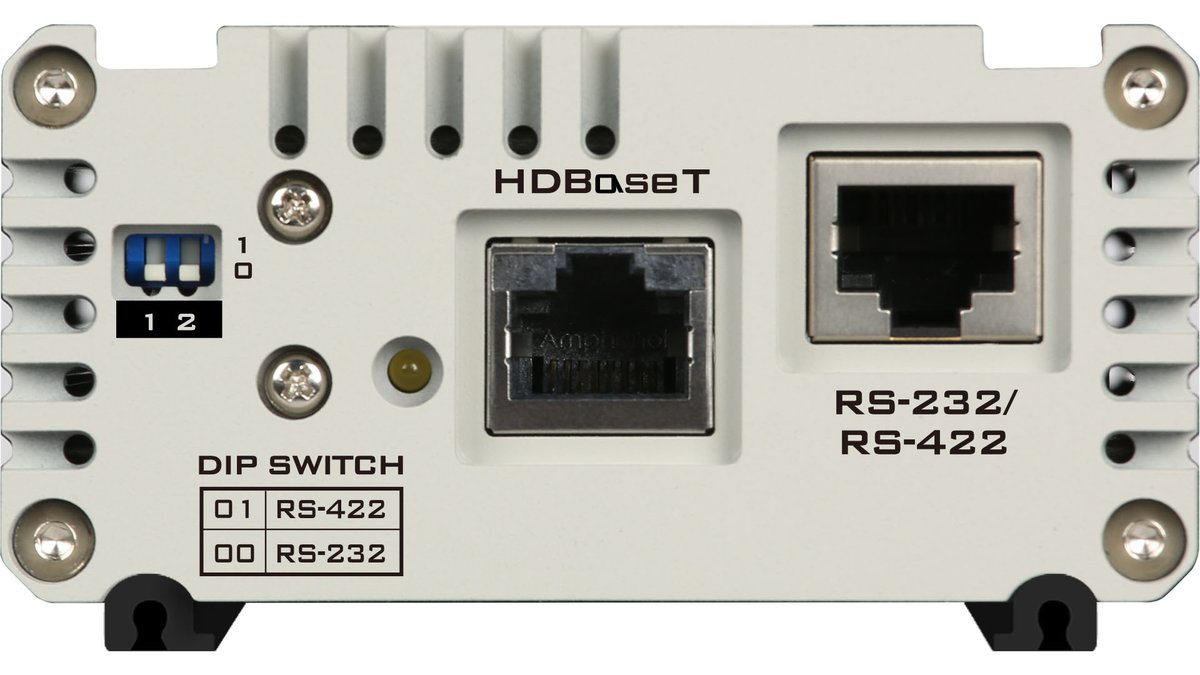

Video, audio, DVIP control, RS-422/RS-232 control and PoE+ all travel on one Cat 7 cable, and the receiver supplies 65W of power back to the transmitting device, so the far end of the run needs no local supply. Reach is up to 100m at 2160p60 over CAT6A, with lower resolutions supported below that. The receiver runs on 56V DC.
