Datavideo HBT-30 3-Channel HDBaseT Receiver

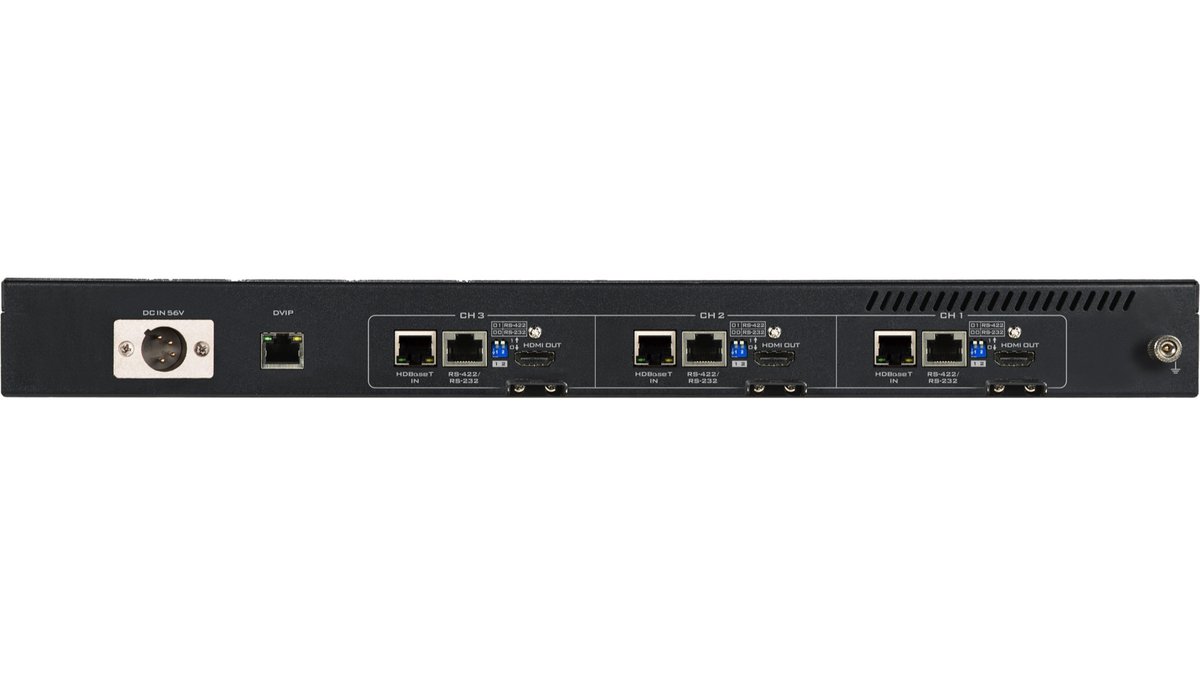

A three-camera PTZ rig normally needs three receivers, three power supplies and three control paths. The HBT-30 collapses that into one box: three HDBaseT inputs on shielded Cat6A, three HDMI 2.0 outputs, and RS-232/RS-422 broken out per channel alongside a DVIP input for IP control.

Each channel supplies 65W of PoE, so all three camera positions run on their own single cable out to 100 metres at 4K50/60. Video processing covers 4K60 4:4:4 8-bit, 4:2:2 10-bit and 4:2:0 10-bit within a single-link 594MHz (18 Gbps) path, and iris, presets and other camera parameters are controlled from the gallery over the same run. The receiver runs on 56V DC.

Function	3-channel HDBaseT receiver
Video / Audio Input	HDBaseT (RJ-45) x 3, Cat6A shielded
Video / Audio Output	HDMI 2.0 x 3
Supported Formats	Up to 3840x2160p60, 1080p60 and below
Video Processing	4K60 4:4:4 8-bit, 4:2:2 10-bit, 4:2:0 10-bit
Video Bandwidth	Single-link 594 MHz (18 Gbps)
Control	DVIP RJ-45 x 1 input, RS-232 / RS-422 RJ-45 x 3
PoE Output	65W per channel
Distance	Up to 100m at 4K60 over CAT6A
Power	DC 56V in
