Datavideo HBT-15 4K HDBaseT Transmitter Box

The HBT-15 pushes a full 18 Gbps HDMI 2.0 signal down structured cable: 2160p at 50 and 60 over CAT6A to 100m, with lower resolutions supported below that. Video processing covers 4K60 4:4:4 8-bit and 4K60 4:2:0 10-bit, so it is not limited to the 4K30 ceiling of older HDBaseT gear.

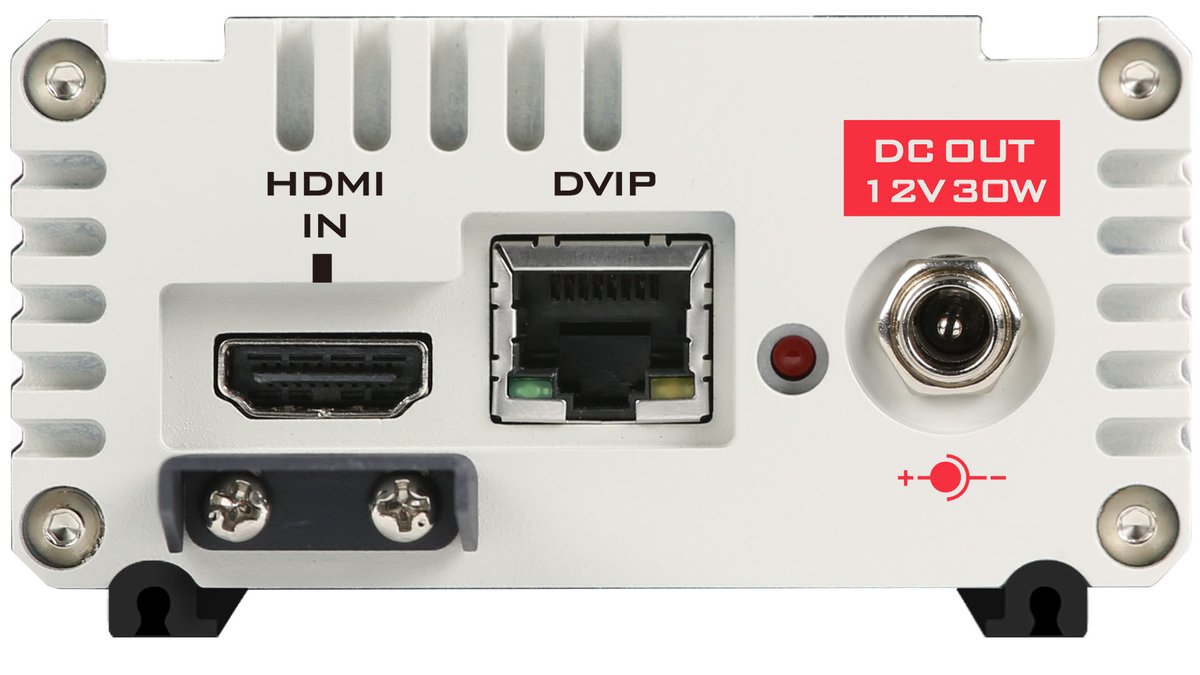

DVIP and RS-422/RS-232 control travel with the picture on their own RJ-45 connections, which is what makes a single cable run to a PTZ position practical. A 12V 30W DC output on the transmitter powers a camera or converter at the remote end. Pair it with the HBT-16 receiver for a matched 4K link.
