Dracast DVT-22 Professional Heavy Duty Photo / Video Tripod with Fluid Head

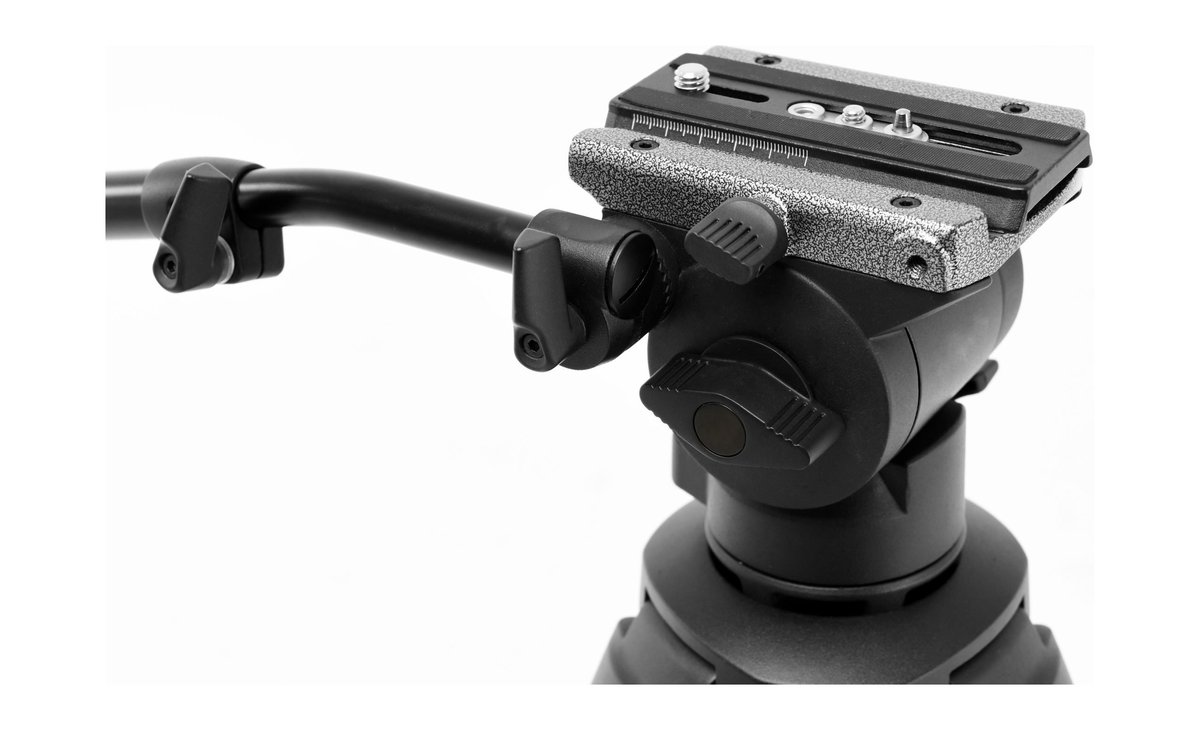

The Dracast DVT-22 with Fluid Head is a professional-grade photo / video tripod made from anodized aluminum that can support loads up to 22 lb. The DVT-22 offers many features usually only found on more expensive models which has made it a staple in the Dracast catalog for many years. The fluid head provides smooth operation, and includes one pan bar with the kit.
Its 3-stage telescopic leg design allows you to adjust the height of the tripod up to 1687 mm. A middle spreader and passive counterbalance provide enhanced stability to the entire system. The Dracast DVT-22 also has separate pan and tilt locks, and a rubber level for precision leveling.
| Manufacturer Part Number | DVT-22 |
|---|---|
| Mounting | 3/8-16 |
| Housing | anodized aluminum |
| Maximum Payload | 22 lb |
| Height Range | 32.7 in - 74.4 in (830 mm - 1890 mm) |
| Folded Height | 33.9 in (860 mm) |
| Product Weight | 9.68 lb (4.4 kg) |
| Leg Tube Diameter | 17.5 mm maximum, 14 mm minimum |
| Fluid Head Tilt Range | +70 to -90 degrees |
| Quick Release Plate Screws | 1/4"-20 and 3/8"-16 |
| In the Box | DVT-22 tripod, fluid head, carry bag |
