DAS Audio ARTEC-306-T Two-Way Passive Install Loudspeaker

The DAS Audio ARTEC-306-T is a two-way passive install loudspeaker built around a 6-inch 6B low-frequency driver with the M-26 compression driver on a BCT-96 waveguide. It covers 70 Hz - 20 kHz, and it reaches 116 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

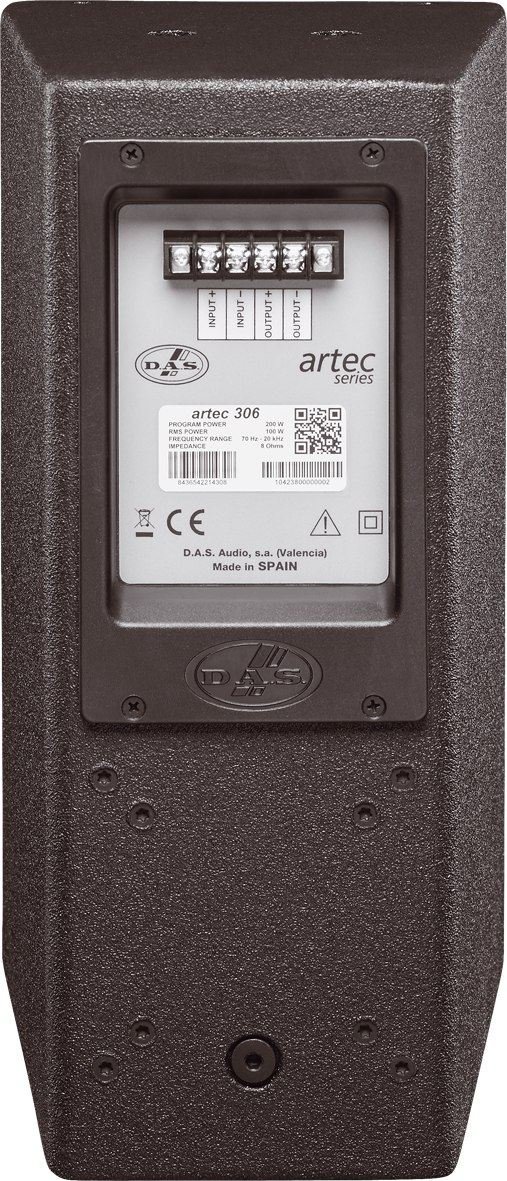

It is a passive box, 8 ohms nominal, handling 100 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. A line transformer is fitted for constant-voltage systems, tapped 70 V at 12.5 W, 25 W, 50 W, 100 W and 100 V at 25 W, 50 W, 100 W. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 8.0 kg (17.6 lb). DAS lists it in black and white; pick the finish above, as each carries its own order code.
