Crestron UCA-B70-MIC Videobar 70 Extension Microphone Pod

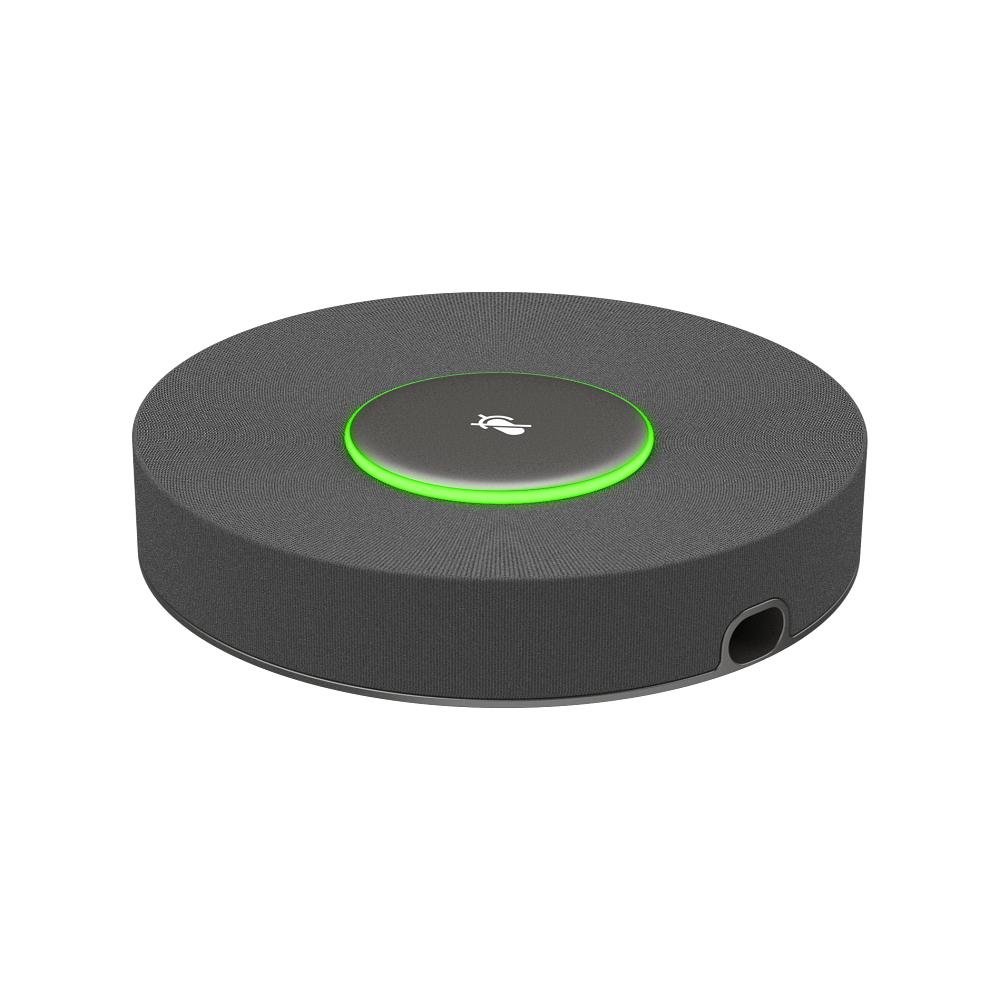

A long table outruns even a 24-microphone bar eventually. These extension pods put another 7.5 ft of pickup wherever it is needed, each carrying a 360 degree eight-microphone array with a physical mute button on top and a bi-color LED that reads green for open and red for muted across the room.

Order matters. The UCA-B70-MIC is the primary pod and connects to a UC-SB2-CAM-A series Videobar 70; the UCA-B70-MIC-AUX is the companion pod and connects to the primary, not to the bar. Both are powered over the same USB-C link, which is a proprietary AB bus connection rather than a standard USB port. Each pod is 0.93 in. tall by 4.76 in. square in a metal housing with a black fabric cover and a rubber base.

Compatible Models	UC-SB2-CAM-A series Crestron Videobar 70
Microphone	360 degree 8x mic array
Pickup Range	7.5 ft (2.3 m)
Buttons	Physical mute button on top, recessed reset on bottom
Indicators	Red LED muted, green LED unmuted, flashing green while booting
Connectors	USB-C AB communication and power, proprietary connection, not USB compliant
Power	UCA-B70-MIC powered from the Videobar 70, UCA-B70-MIC-AUX powered from the primary pod
Dimensions	0.93 in. H x 4.76 in. W x 4.76 in. D (24 x 121 x 121 mm), 0.67 lb (0.3 kg)
