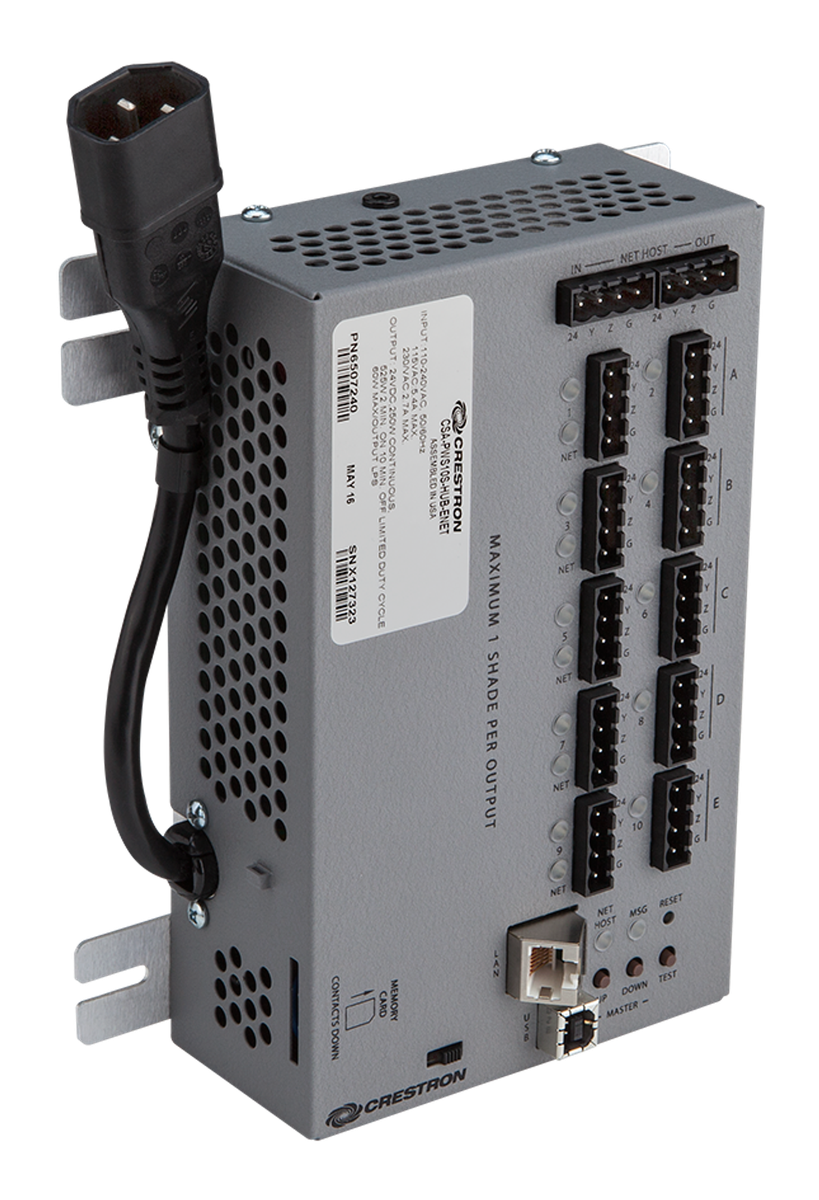

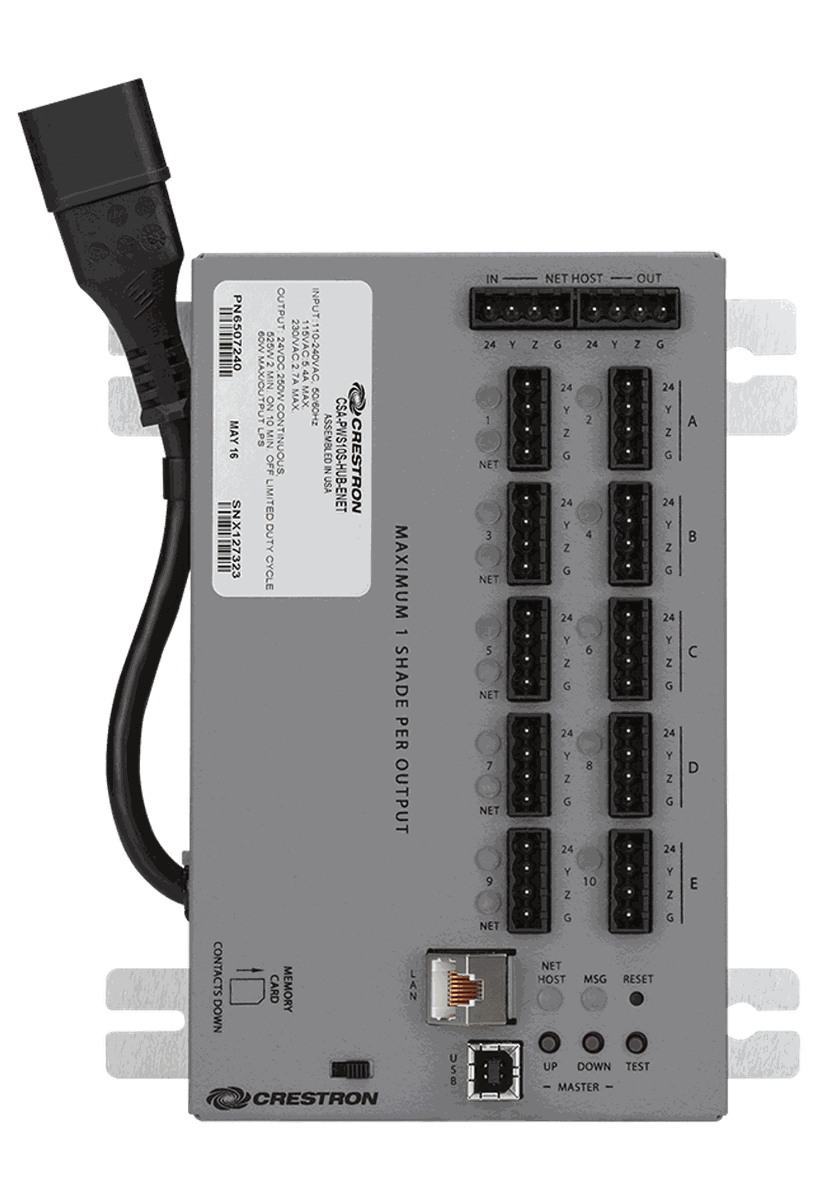

Crestron CSA-PWS10S-HUB-ENET 10-Motor Shade Power Supply with Ethernet to Cresnet Bridge

This is the head end for a floor of motorized shades. Ten 24VDC outputs, each rated 60 W with its own self-resetting thermal fuse, power up to ten Crestron Quiet Motor Technology roller shade or drapery motors in any combination. Total continuous load is 250 W, with a 525 W limited duty cycle rating of 2 minutes on and 10 minutes off, which is the number that matters because a bank of shades draws hard only while it is moving.

The same chassis carries the network. A MODE switch selects Cresnet or Ethernet operation: in Cresnet mode the supply is a slave device on a control network landed on the paralleled NET HOST IN and OUT blocks; in Ethernet mode the RJ45 LAN port bridges the shade network onto IP. Behind either, a built-in five-segment Cresnet hub gives ten more terminal blocks, two per segment, so branch wiring fans out from the supply instead of a separate hub. Front-panel MASTER UP and MASTER DOWN buttons drive every connected shade for commissioning, a TEST button runs diagnostics, and per-output green LEDs confirm 24VDC. It mounts in a CAEN or CAEN-MLO enclosure or surface mounts.
