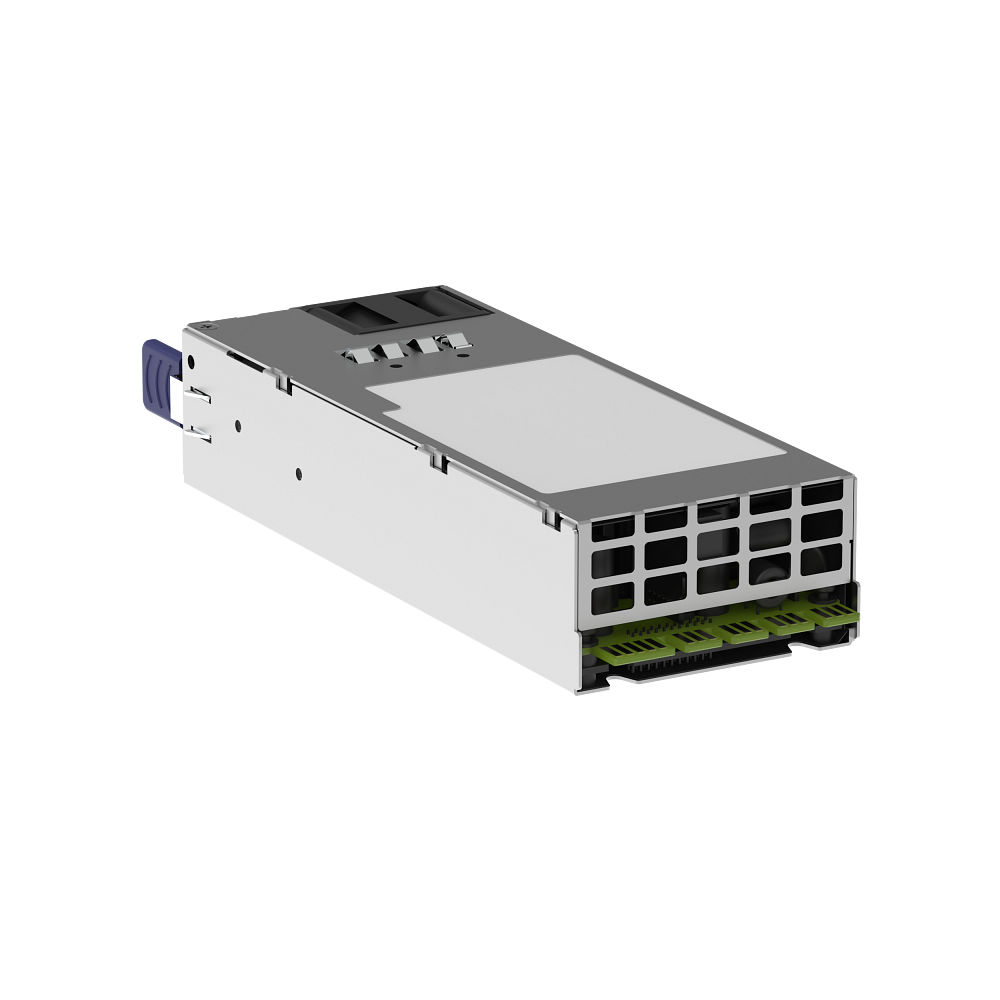

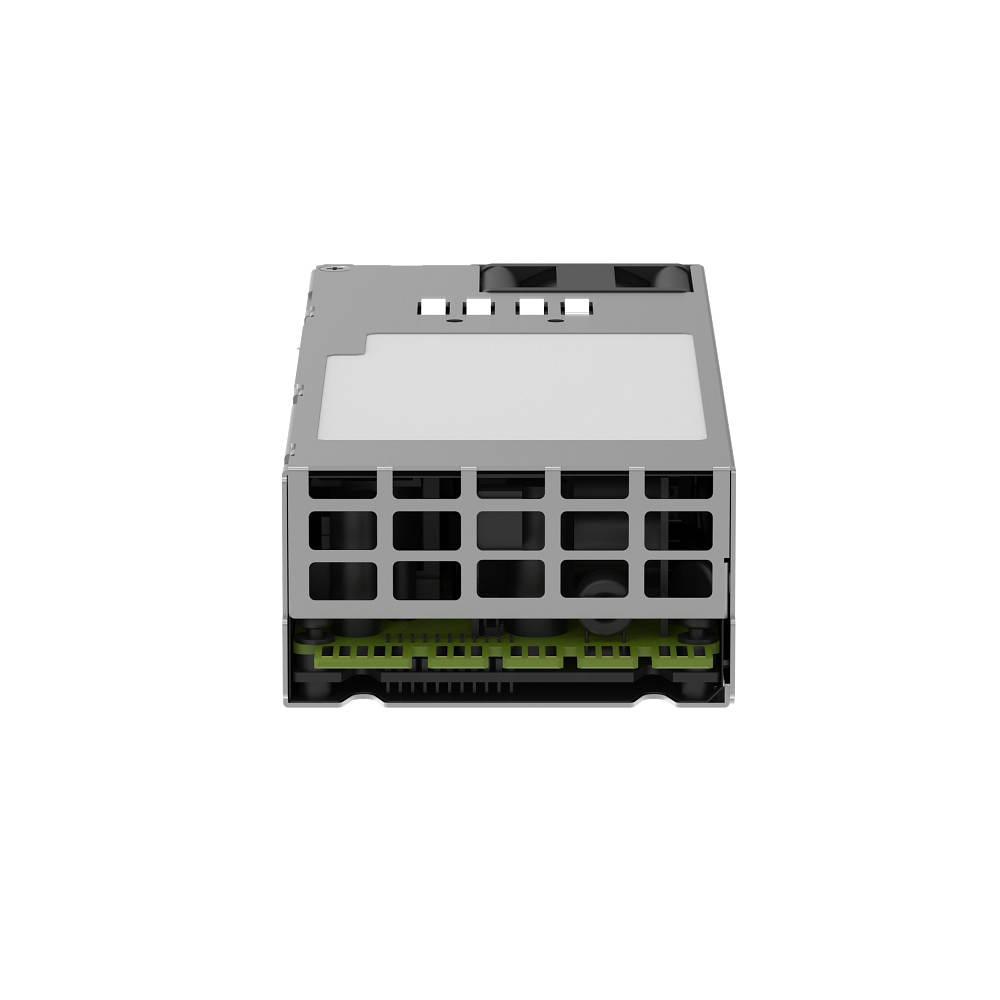

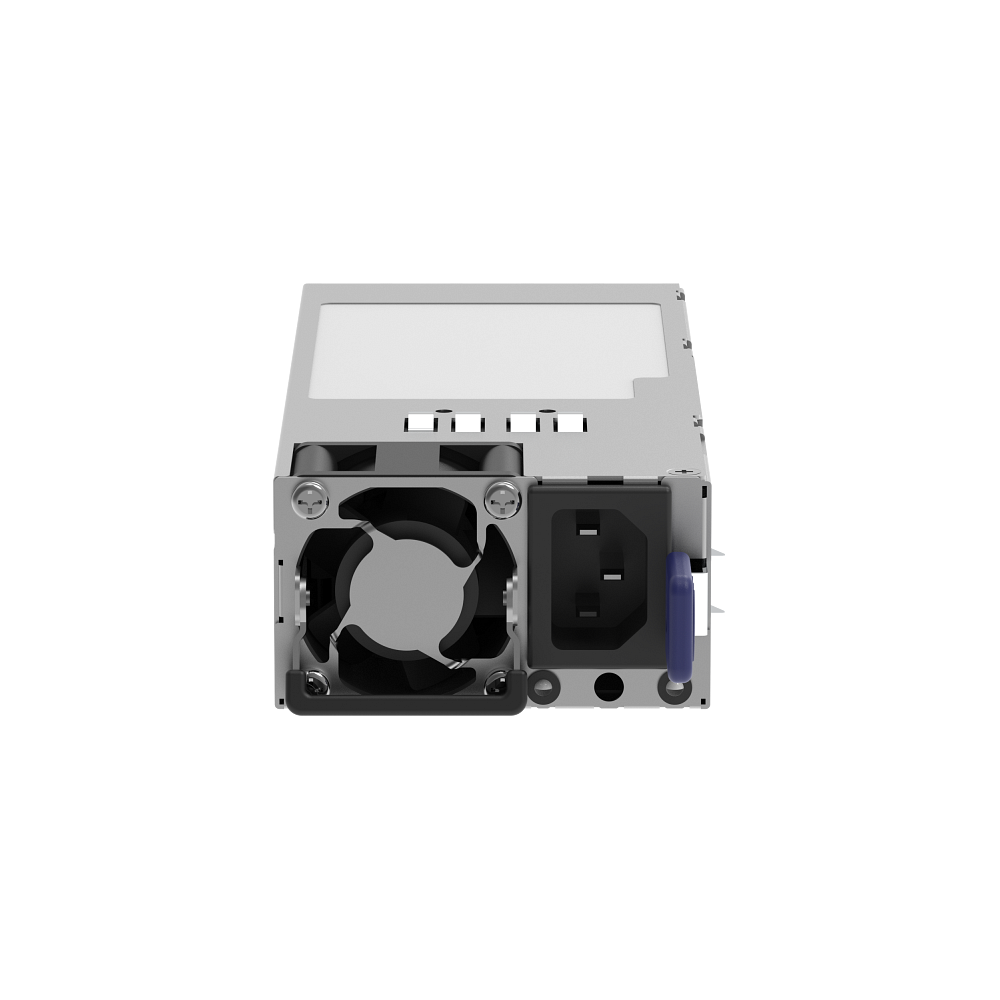

Crestron CEN-SWPOE-PWS2000-ULTRA 2000 W Switch Power Supply Module

A 52-port switch whose ports are each rated at 90 W needs far more power than its internal supply provides. The CEN-SWPOE-PWS2000-ULTRA is the module that closes that gap: up to 2000 W of output from a 110-240VAC input, fitted into one of the two supply bays on a CEN-SWPOE-52-ULTRA or CEN-SWPOE-52-ULTRA-TAA.

Fitting one expands the PoE budget available to the switch's powered ports; fitting a second provides redundancy so that a failed supply circuit does not drop the segment. The module itself is compact at 1.57 by 2.87 by 7.28 in. and 2.07 lb, and takes no additional rack space.

  • Dimensions1.57 in. H x 2.87 in. W x 7.28 in. D
  • Output PowerUp to 2000 W at 110/220VAC
  • Input110-240VAC
  • Weight2.07 lb
  • Compatible SwitchesCEN-SWPOE-52-ULTRA and CEN-SWPOE-52-ULTRA-TAA
FunctionModular power supply unit for a Crestron network switch
Compatible SwitchesCEN-SWPOE-52-ULTRA and CEN-SWPOE-52-ULTRA-TAA
Output PowerUp to 2000 W at 110/220VAC
Input110-240VAC
PoE BudgetExpands the budget of the connected switch
RedundancyProvides power redundancy if the main switch power circuit fails
Dimensions1.57 in. H x 2.87 in. W x 7.28 in. D (39.8 x 73 x 185 mm)
Weight2.07 lb (0.94 kg)
