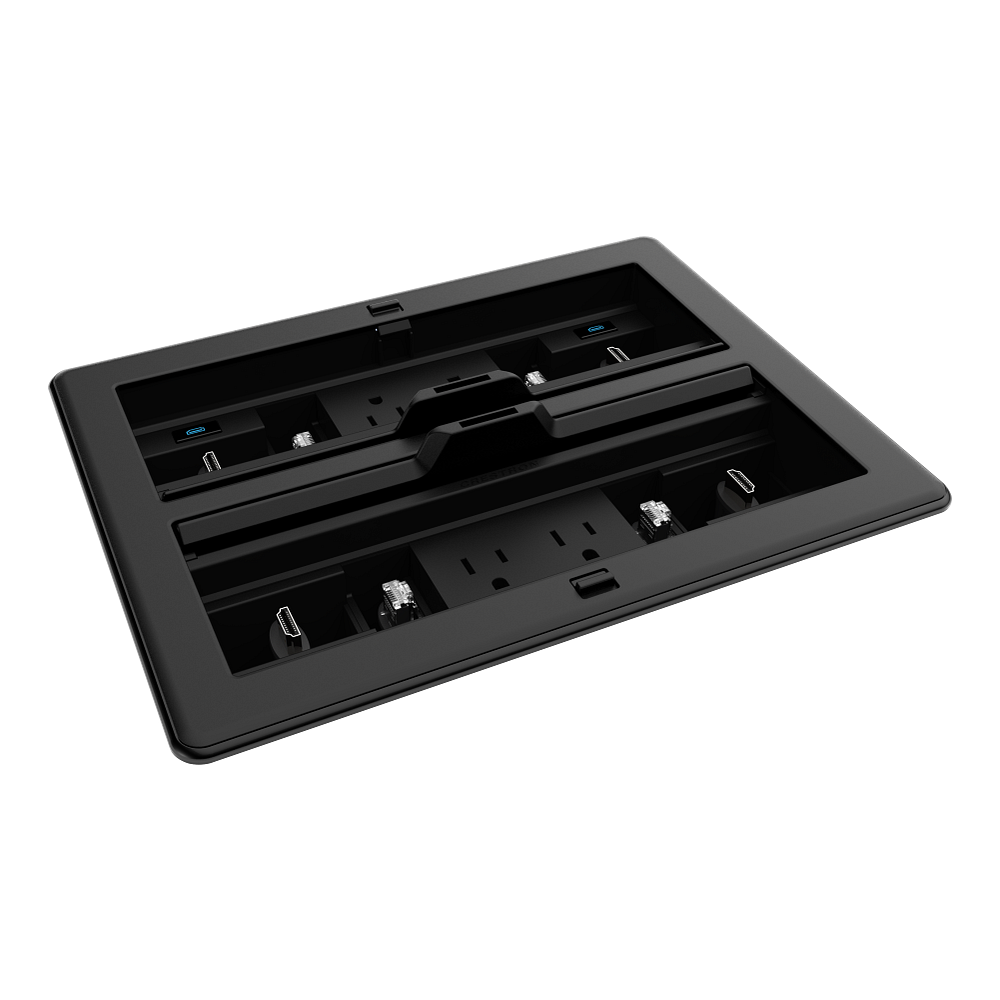

Crestron FT2-1400 FlipTop Cable Management System, 1400 Size

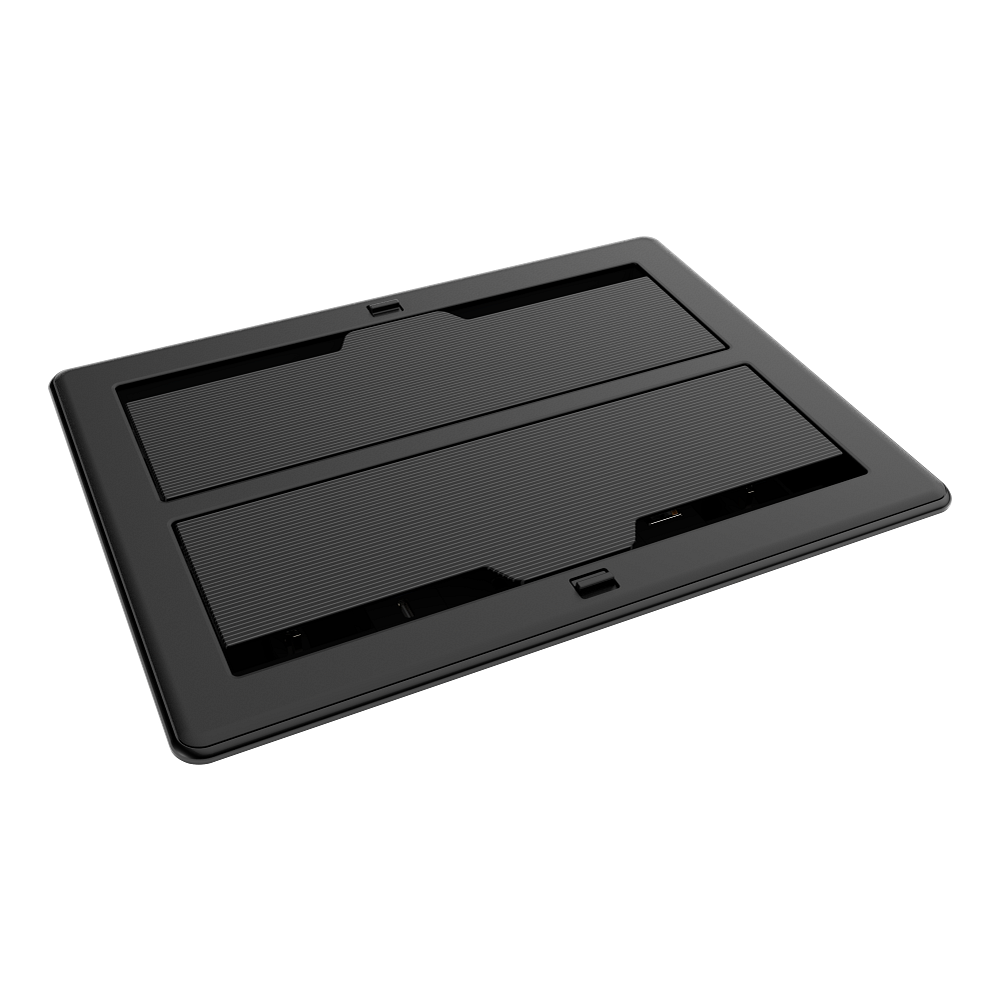

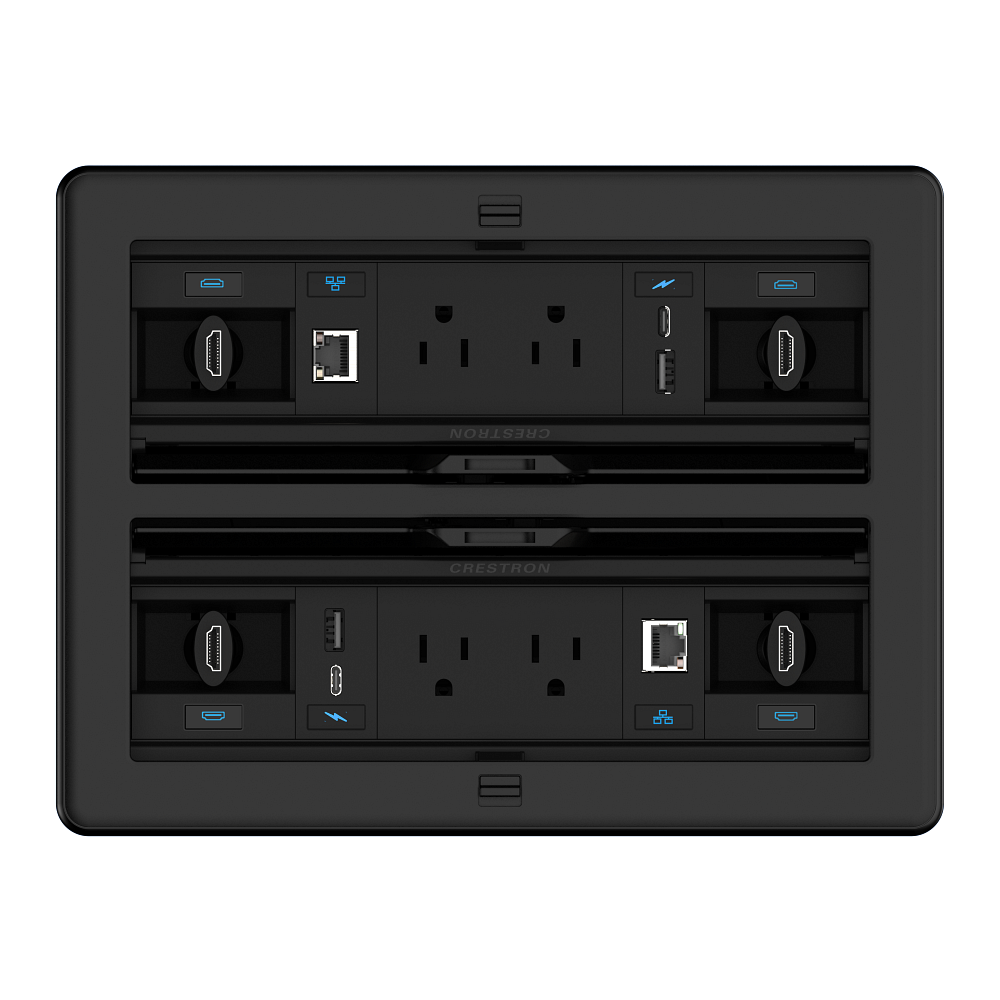

The FT2-1400 is the largest FlipTop in the FT2 line, with eighteen module slots in two rows of nine. It has two lids rather than one, each with its own slide button, so a table position serving two seats can be opened on one side without exposing the other. The cutout is 6-3/4 in. deep by 10 in. wide.

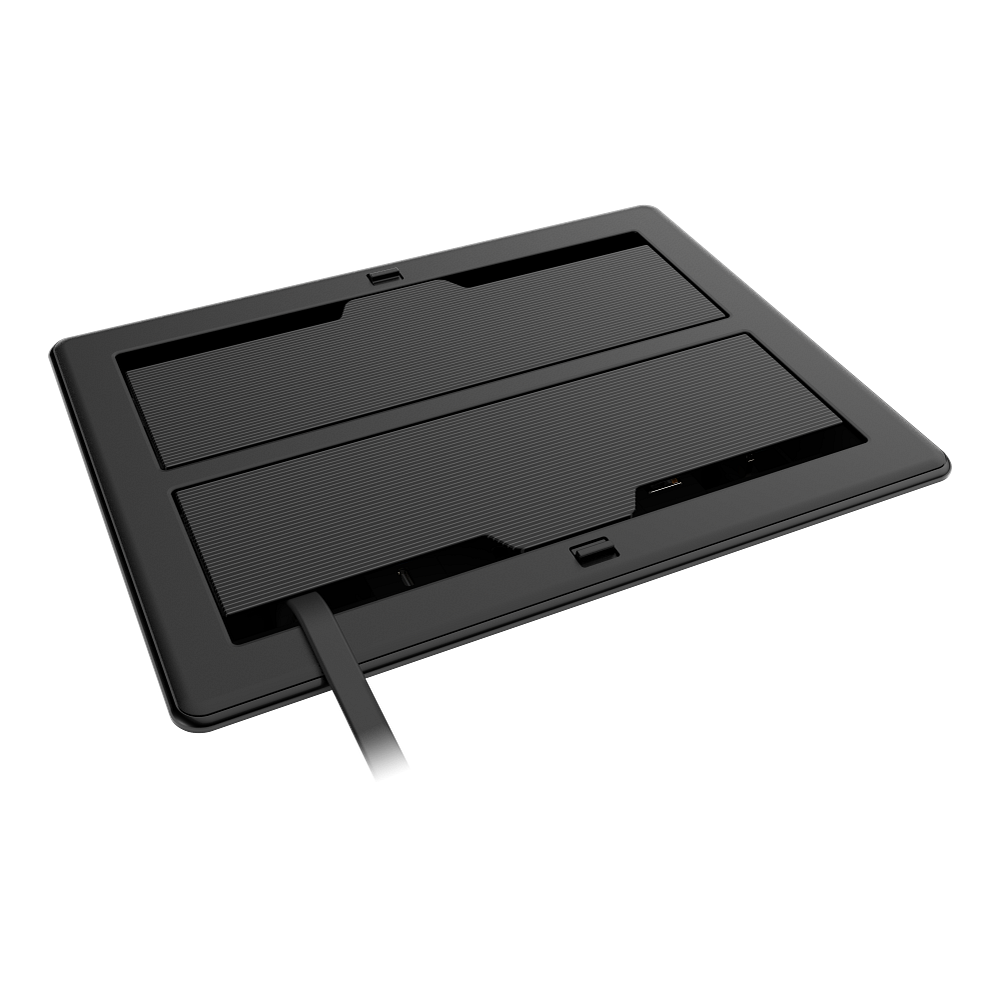

Four swiveling dogs secure it to a surface up to 1-3/4 in. thick, template provided. The chassis is black metal, the retracting covers black or alloy, and the bezel attaches magnetically for a finished edge with no visible fasteners. Both lids are the pass-through type, with cutouts that let cables stay connected and fully extended while closed. ELEC models carry a powered module bus on each row, backlighting the module icons and supporting one-touch retractors, active connector plates and USB rapid charging; MECH models take passive modules only.

Type	Flush tabletop FlipTop cable management system
Module Slots	18 maximum, 2 rows of 9
Cutout	6-3/4 in. (171 mm) deep x 10 in. (254 mm) wide, template provided
Mounting	Flush tabletop, 4 swiveling dogs, 1-3/4 in. (44 mm) maximum surface thickness
Chassis	Metal, black finish
Cover	Metal, black or alloy finish, mechanically retracting lids, magnetically attached bezel
Lid	(2) pass-through lids, each with its own mechanical slide button
ELEC Models	(2) 24VDC inputs, one per module row; includes an FT2A-UTK-PWS supply and Y-adapter
Mid-Row Retractor	Supported with an FT2A-CBLR-BRKT-1400 bracket, one per row
Environmental	32 to 112 deg F (0 to 45 deg C), 10% to 95% RH non-condensing
