Crestron FT2-202 FlipTop Cable Management System, 202 Size

The FT2-202 is the shallowest FlipTop in the FT2 line, laying six module slots out in a single row behind a 3-1/4 in. deep cutout. That depth is the point: it drops into a narrow lectern rail or a table edge where the 5-3/4 in. cutout of the larger sizes will not fit. The lid is the pass-through type, so cables can stay plugged in and fully extended with the lid closed.

Installation is a cut, a drop-in and four screws, which turn two swiveling dogs against the underside of the surface up to 1-3/4 in. thick. A template is included. The chassis is black metal and the retracting cover comes in black or alloy, with a magnetically attached bezel that finishes the edge without visible fasteners. ELEC models carry a powered module bus, which is what backlights the symbol icons and what one-touch retractors, active connector plates and USB charging modules require; MECH models leave that out and take the passive modules only.

Type	Flush tabletop FlipTop cable management system
Module Slots	6 maximum, 1 row of 6
Cutout	3-1/4 in. (83 mm) deep x 7 in. (178 mm) wide, template provided
Mounting	Flush tabletop, 2 swiveling dogs, 1-3/4 in. (44 mm) maximum surface thickness
Chassis	Metal, black finish

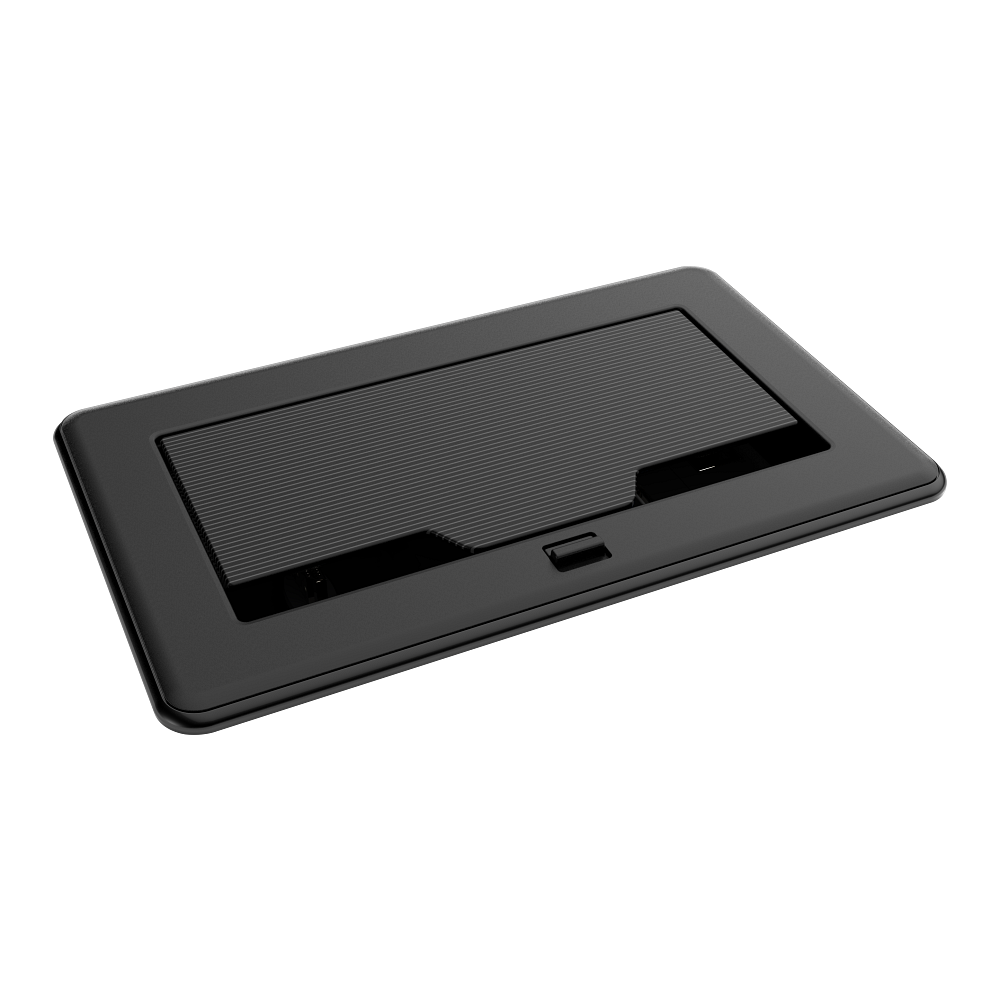

Cover	Metal, black or alloy finish, mechanically retracting lid, magnetically attached bezel

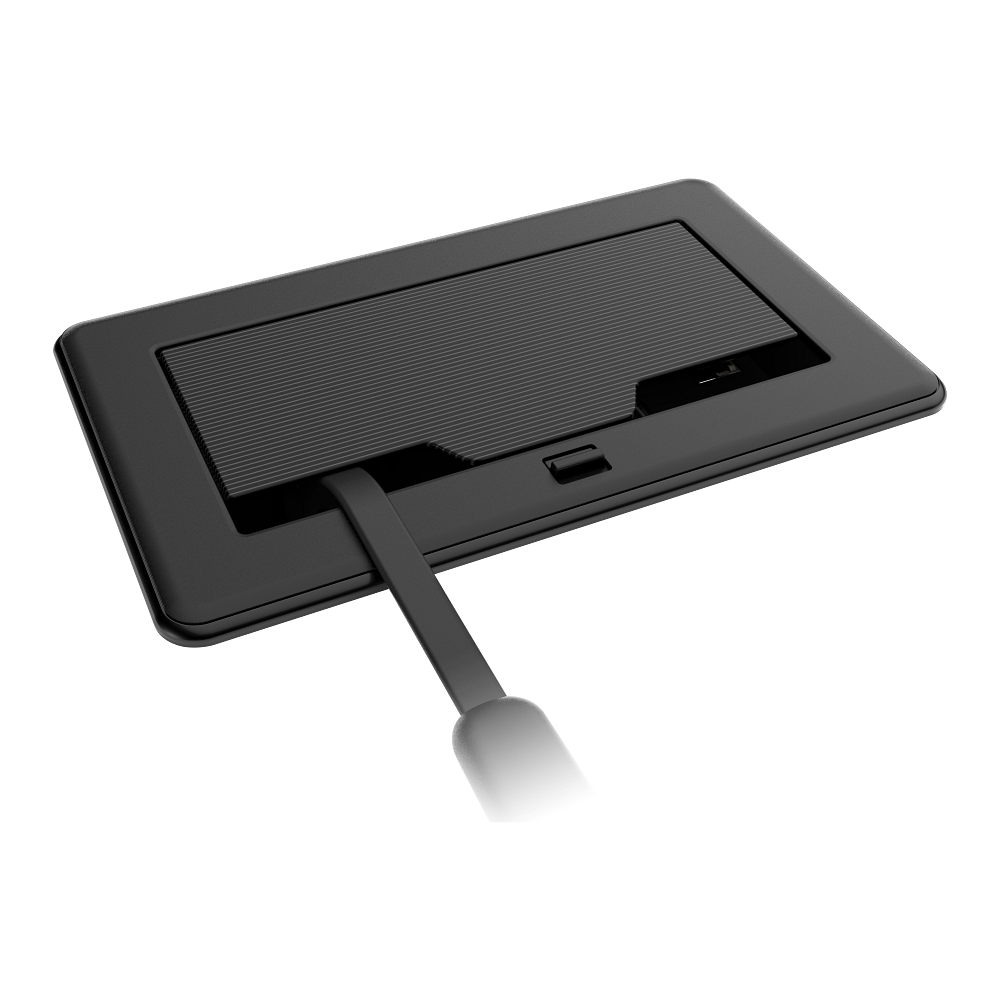

Lid	Pass-through, mechanical slide button, cutouts let cables extend while closed
ELEC Models	Powered module bus; includes an FT2A-UTK-PWS supply, 100-240VAC in, 2.5 A at 24VDC out
Environmental	32 to 112 deg F (0 to 45 deg C), 10% to 95% RH non-condensing
