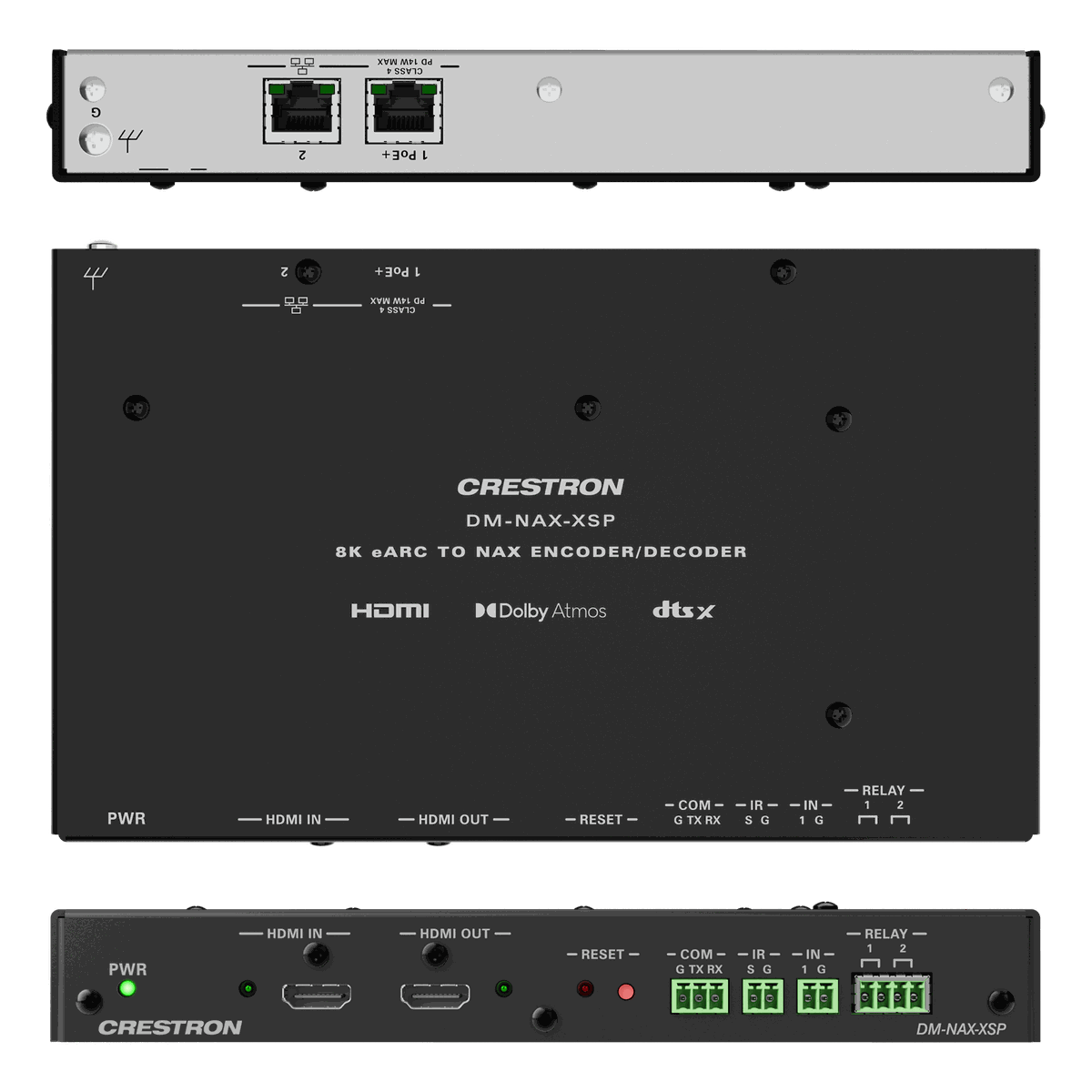

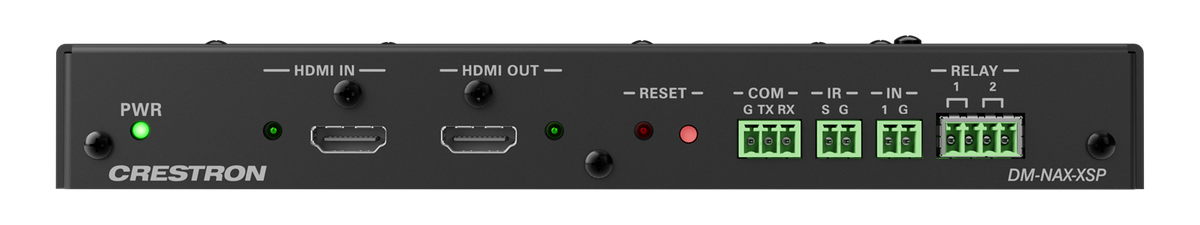

Crestron DM-NAX-XSP DM NAX 8K Smart Display Controller and Network Audio Encoder/Decoder with

The Crestron DM-NAX-XSP is a DM NAX 8K Smart Display Controller and Network Audio Encoder/Decoder with eARC Support. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.

Inputs accept HDMI, DM NAX, AES67 audio-over-IP. Power consumption is 14 W maximum. Mounting is Surface-mountable or attachable to a single rack rail. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Input Signal TypesHDMI, DM NAX, AES67 audio-over-IP
Output Signal TypesHDMI (multichannel pass-through), DM NAX (2-channel downmix), AES67 audio-over-IP (2-channel downmix)
Ethernet 1(1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE+ PD (powered device) port, IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant
EthernetFor control, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
Power Consumption14 W maximum
MountingSurface-mountable or attachable to a single rack rail
ChassisMetal, black finish, vented sides
Digital FormatsDolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
