Tascam IF-AN16/OUT 16-Channel Analog Output Expansion Card

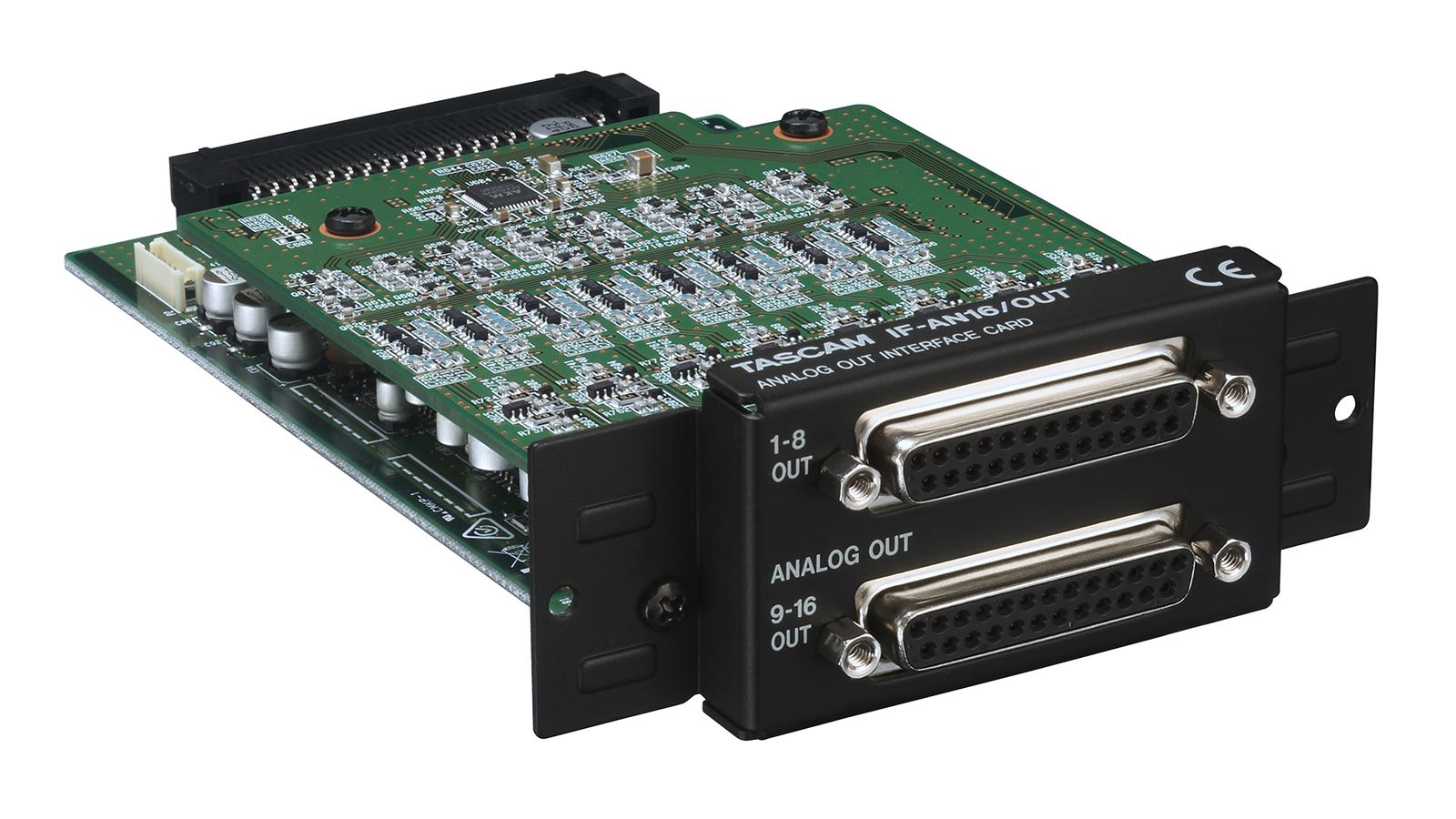

The IF-AN16/OUT adds sixteen channels of balanced analog output to a Sonicview console or a DA-6400 recorder, on two D-sub 25-pin connectors. It runs 16-bit or 24-bit at 44.1, 48, 88.2 and 96 kHz, matching the host's sampling rate rather than resampling.

Nominal output level is +4 dBu, or +6 dBu when the maximum is set to +15 dBu, and the maximum output level is switchable between +15 and +24 dBu to suit the device being driven. Output impedance is 200 ohms or lower and the D-sub locking screws are inch-thread No. 4-40 UNC. The card weighs 240 g.

Formats and channels16 channels at 44.1/48/88.2/96kHz, 16-bit/24-bit
ANALOG 1-8/9-16 OUT connectors Nominal output levels+4 dBu, +6 dBu (only when maximum output level is +15 dBu)
ANALOG 1-8/9-16 OUT connectors ConnectorD-Sub 25pin
Dimensions107(W) x 40(H) x 161.5(D) mm (including protrusions)
Weight240g
ANALOG 1-8/9-16 OUT connectors Locking screwsNo.4-40 UNC (inch type)
ANALOG 1-8/9-16 OUT connectors Maximum output levels+24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (Switched according to nominal level of device installed in)
ANALOG 1-8/9-16 OUT connectors Output impedance200 ohms or lower
