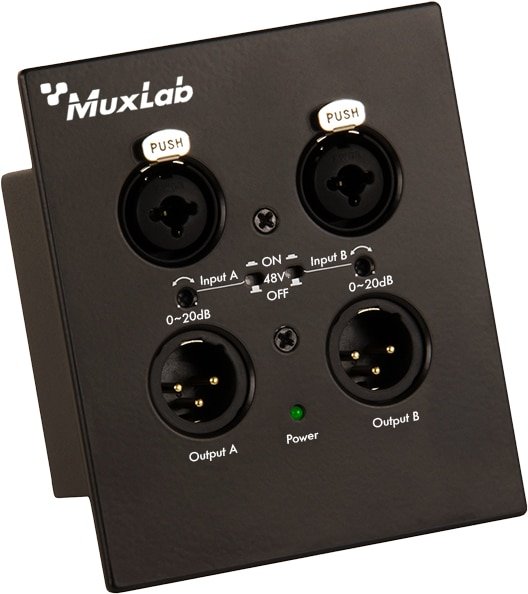

MuxLab 500558 Dante 2-Channel XLR Wall-Plate

The 500558 puts a Dante interface behind a wall plate with two balanced XLR inputs and two balanced XLR outputs, carrying full-range 20Hz to 20kHz audio in both directions. Two Dante input channels and two Dante output channels are presented on the network.

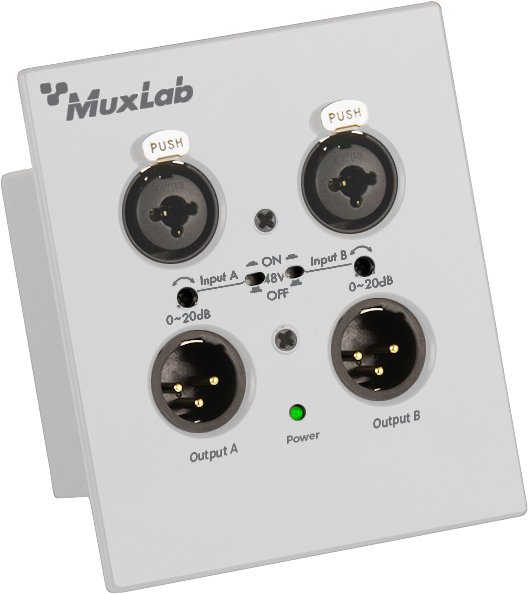

Sampling is 48kHz at 24-bit and the plate powers from PoE on a standard network switch, so the only cable to the plate is the network drop. That makes it a clean way to add a microphone input and a local monitor feed to a room without running audio cable back to the rack. A white version is available as the -WH.
