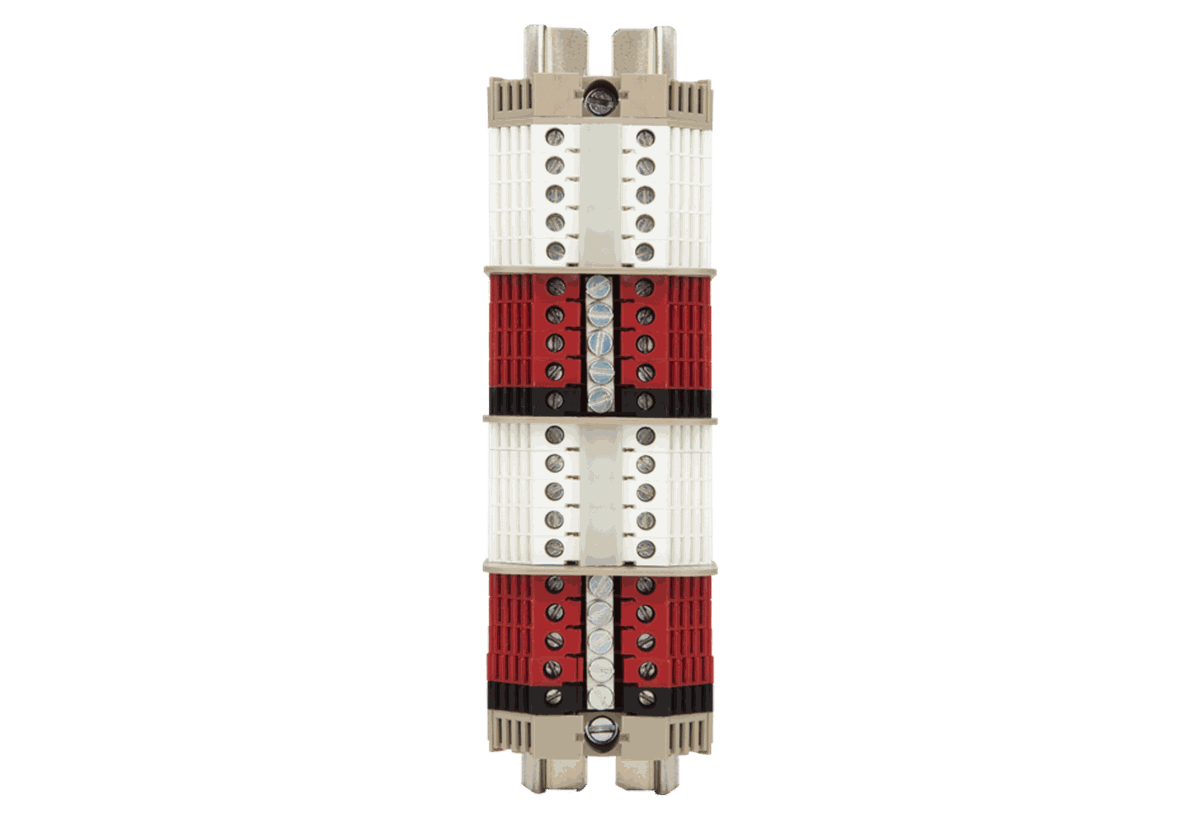

Crestron CLT-2DIMFLV8 Terminal Block for CLX-2DIMFLV8

The CLT-2DIMFLV8 is the terminal block that belongs to the CLX-2DIMFLV8, the 8 Channel 0-10V Dimmer Module, 2 Feeds, 120V. It mounts on DIN rail inside a CAEN or CAEN-MLO automation enclosure and takes every Class 1 high-voltage conductor for that module, so the line and load wiring is landed and dressed before the control module itself is ever fitted.

Terminals are color coded and the assembly ships with printed label strips and mounting hardware, which is what keeps a full CLX enclosure legible months after the install. Electrical bypass jumpers on each terminal let an electrician test a circuit and protect the module during rough-in. The assembly weighs 0.5 lb (0.23 kg).
