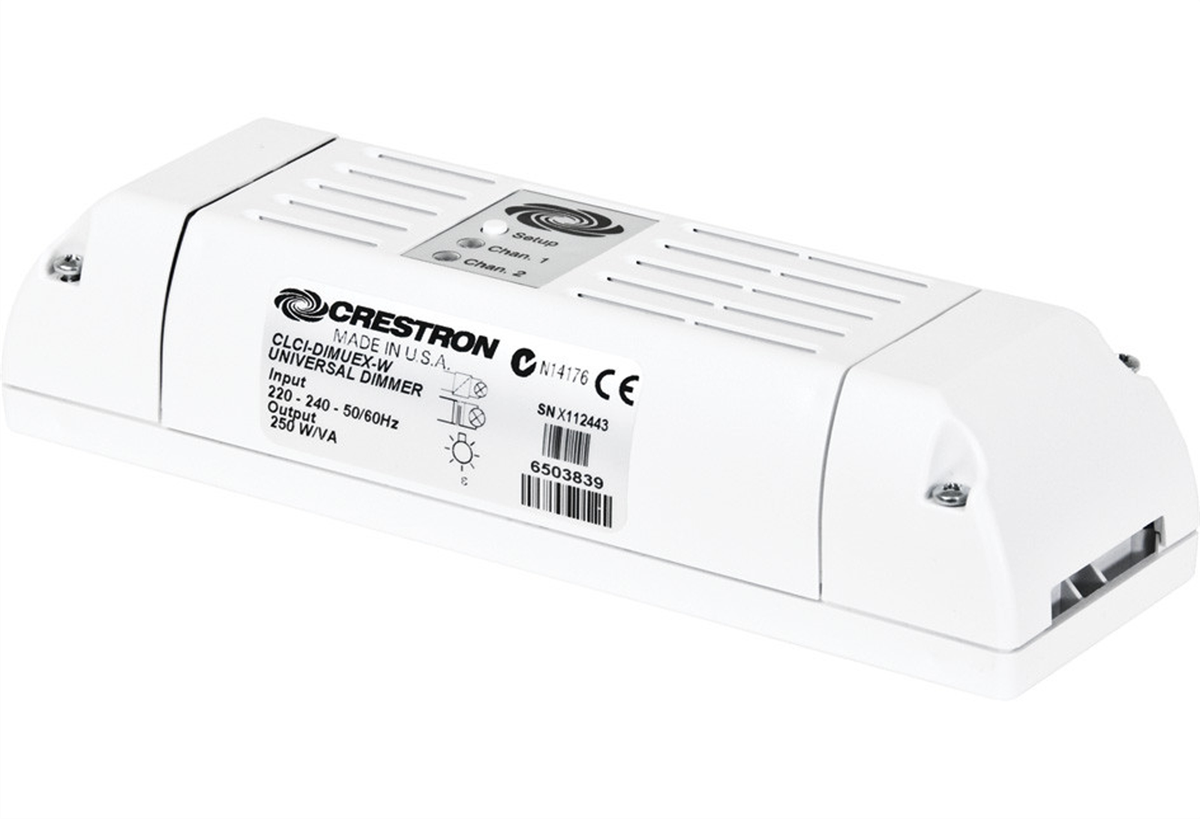

Crestron CLCI-DIMUEX-W In-Ceiling Universal Dimmer, 230VAC
The CLCI-DIMUEX-W is a single-channel universal dimmer for 230VAC lighting, slim enough to install in the ceiling beside the fixture rather than in the wall box. It dims incandescent, tungsten-halogen, magnetic low voltage, electronic low voltage and dimmable CFL loads up to 300 W/VA, and load detection circuitry decides forward or reverse phase automatically, which removes the usual site guess about which mode a driver wants.
Two sets of load terminals wired in parallel allow more than one fitting on the channel, and the line, neutral and earth terminals are similarly duplicated so units daisy-chain without connectors or extra gang boxes. It installs inline, keeps working from an ordinary momentary or maintained wall switch on the R terminal, and is set up from that switch or the on-board button. Each terminal accepts a single 1 to 2.5 mm2 (18-14 AWG) conductor. Communication is infiNET EX 2-way RF at 2.4 GHz, about 46 m indoors to the gateway; a Crestron wireless gateway is required and sold separately.
| Channels | 1 |
|---|---|
| Line Power | 220 to 240VAC, 50/60 Hz |
| Maximum Load | 300 W/VA |
| Load Types | Incandescent, tungsten-halogen, magnetic low voltage, electronic low voltage, dimmable CFL |
| Dimming Mode | Automatic forward or reverse phase by load detection |
| RF Transceiver | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4, default channel 15 |
| Range | 30 m (100 ft) indoors device to device; 46 m (150 ft) indoors device to gateway |
| Gateway | Requires a Crestron wireless gateway, sold separately |
| Connections | Each terminal accepts a single 1 - 2.5 mm2 (18-14 AWG) conductor |
