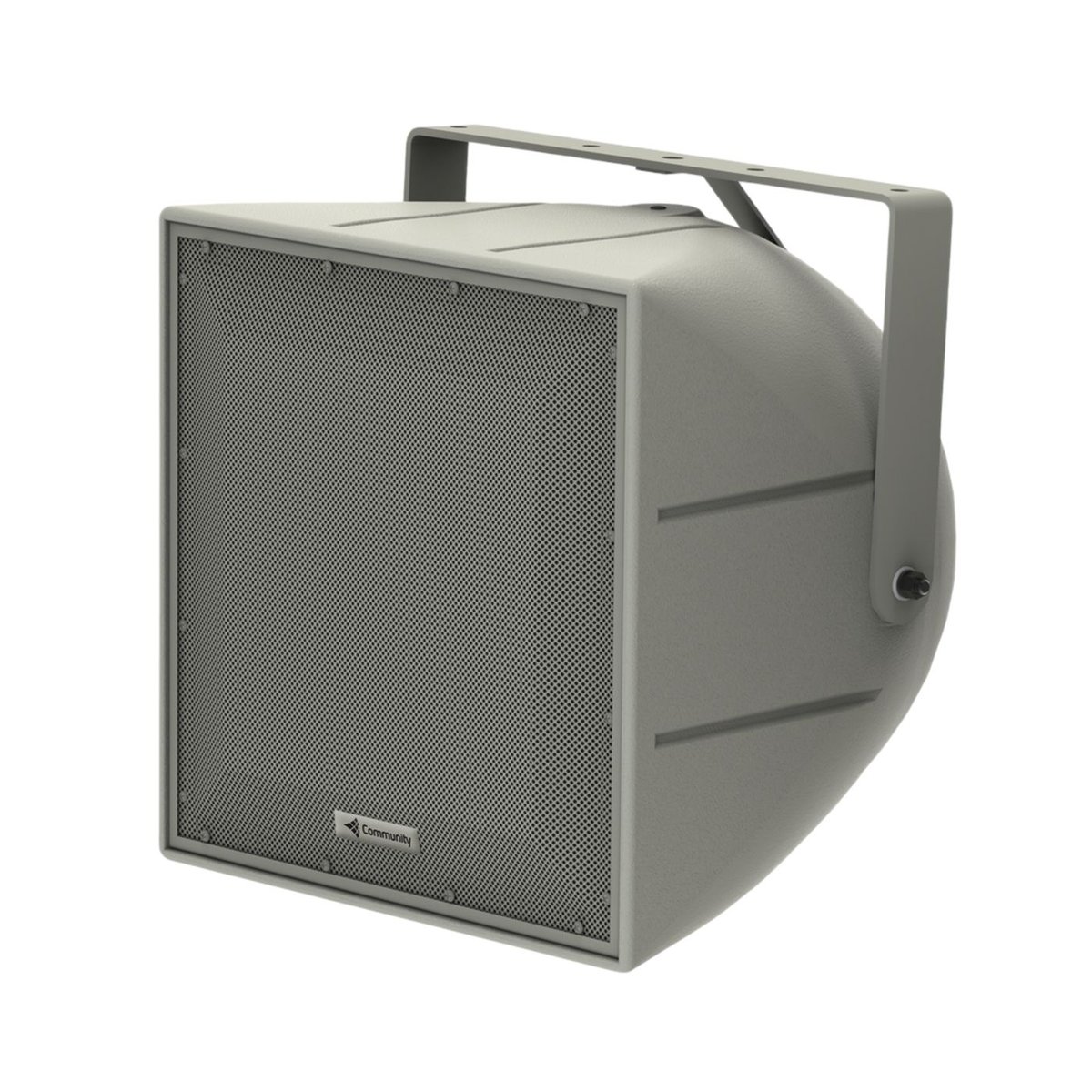

Community R.5 12-inch 2-Way Weather-Resistant Horn-Loaded Point Source Loudspeaker

The Community R.5 is a 12-inch 2-Way Weather-Resistant Horn-Loaded point source loudspeaker. It works over 85 Hz to 16 kHz; 125 Hz to 10 kHz (+/-4 dB). Community positions it for large venue work.

The family covers 60 x 60 degrees, 90 x 40 degrees and 90 x 90 degrees nominal patterns, in grey. Mounting: (5) 3/8-16 rigging points. Enclosure: Rotomolded linear low density polyethylene. Operating environment: Indoor or outdoor, weather-resistant. Every part number in the family is listed above; pick the coverage and finish the room needs.

Dimensions (H x W x D)	16 inches (406 mm) x 16 inches (406 mm) x 16.2 inches (411 mm)
Type	2-way, 12-inch fullrange weather-resistant loudspeaker
Drivers	LF 1 x 12 inch Ferrofluid-cooled; HF 1 x 1 inch exit, titanium free, Ferrofluid-cooled
Operating Range	85 Hz to 16 kHz; 125 Hz to 10 kHz (+/-4 dB)
Frequency Response	Crossover: 2 kHz
Beamwidth	Nominal (-6 dB): 60 degrees H (+3 degrees / -8 degrees, 1.6 kHz to 12.5 kHz); 60 degrees V (+20 degrees / -16 degrees, 1.6 kHz to 12.5 kHz)
Sensitivity	103 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 103 dB SPL (250 Hz to 4 kHz speech range)
Impedance	Nominal: 8 ohms; Minimum: 4.1 ohms @ 9.6 kHz
