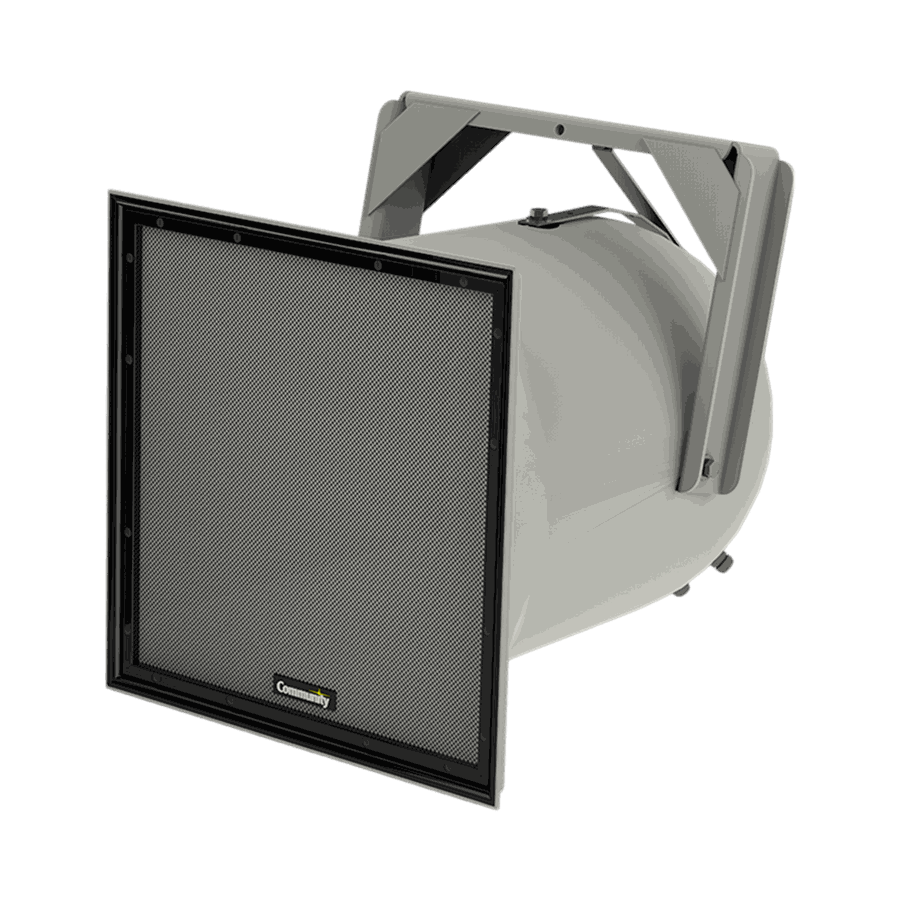

Community R2MAX Dual 12-inch 3-Way Weather-Resistant Point Source Loudspeaker
The Community R2MAX is a dual 12-inch 3-Way Weather-Resistant point source loudspeaker. It works over 71 Hz - 22.4 kHz. It runs biamp with dsp (passive mf/hf). Power handling: LF: 1200W Cont. / 4800W Peak; MF/HF: 350W Cont. / 1400W Peak. Community positions it for large venue work.
The family covers 50 x 20 degrees, 60 x 40 degrees, 60 x 60 degrees and 90 x 40 degrees nominal patterns. Mounting: (5) 1/2-inch - 13 threaded rigging points,; Steel zinc-rich epoxy dual-layer powder-coated bracket with (2) aluminum aiming straps to secure angle. Operating environment: Indoor / Continuous outdoor direct exposure. Every part number in the family is listed above; pick the coverage and finish the room needs.
| Dimensions (H x W x D) | 24.75 inches (629 mm) x 24.75 inches (629 mm) x 30.75 inches (781 mm) |
|---|---|
| Type | Three-way, 12-inch high output full range weatherresistant loudspeaker |
| Drivers | LF 2 x 12 inches; MF 1 x 2 inches; HF 1 x 1.4 inches |
| Operating Range | 71 Hz - 22.4 kHz |
| Beamwidth | Nominal Beamwidth (H x V): 60 degrees x 40 degrees |
| Dispersion | (H x V) 60 degrees x 40 degrees |
| Sensitivity | (1W/1m) LF: 103 dB; MF/HF: 109 dB |
| Power | LF: 1200W Cont. / 4800W Peak; MF/HF: 350W Cont. / 1400W Peak |
