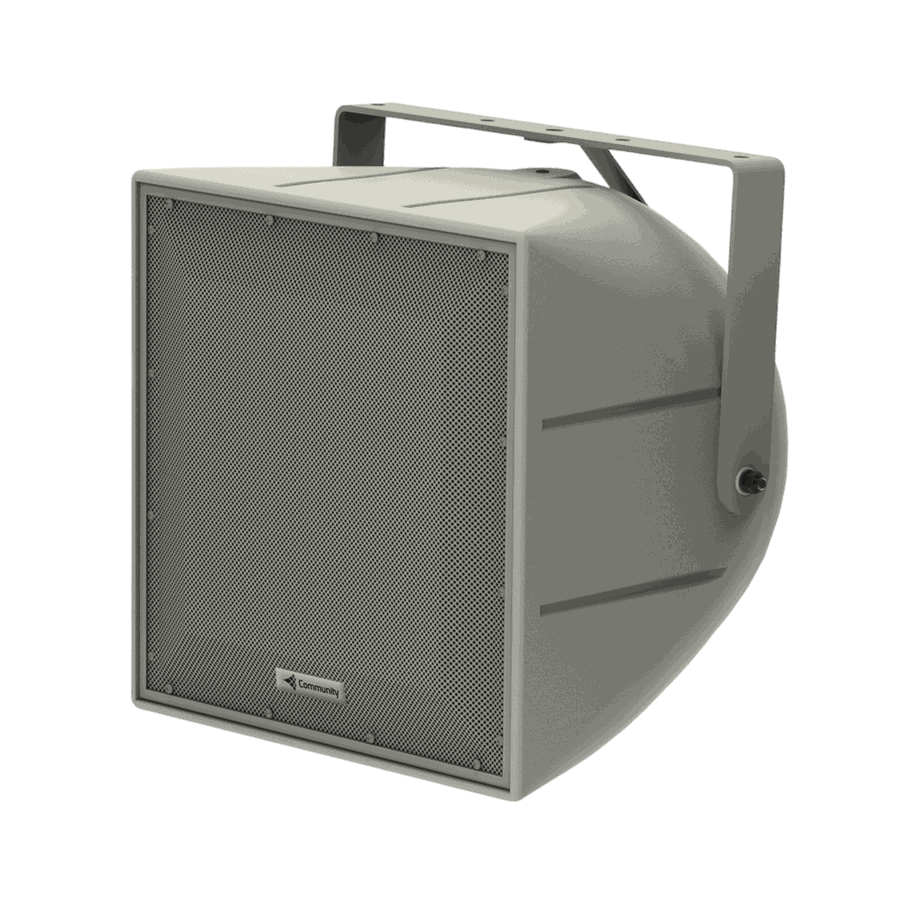

Community R.5MAX 12-inch 2-Way Weather-Resistant Point Source Loudspeaker

The Community R.5MAX is a 12-inch 2-Way Weather-Resistant point source loudspeaker. It works over 85 Hz - 21.8 kHz. It runs passive with dsp. Power handling: Continuous Power Handling @ Nominal Impedance: Passive: 69V; 600W @ 8 ohms (2400W peak). Community positions it for large venue work.

The family covers 60 x 60 degrees and 90 x 60 degrees nominal patterns, in black and grey. Mounting: (5) 3/8-inch - 16 threaded rigging points; Steel zinc-rich epoxy dual-layer, powder-coated bracket; Aluminum aiming strap to secure angle. Operating environment: Indoor / Continuous outdoor direct exposure.

  • Dimensions (H x W x D)16 inches x 16 inches x 16.2 inches
  • Operating Range85 Hz - 21.8 kHz
  • Sensitivity(1W/1m): 104 dB
  • Type2-way, 12-inch, high output, full range
  • DriversLF 1 x 12-inch; 1 x 1-inch
Dimensions (H x W x D)16 inches (406 mm) x 16 inches (406 mm) x 16.2 inches (411 mm)
Loudspeaker SystemIndoor / Continuous outdoor direct exposure
Type2-way, 12-inch, high output, full range, weather-resistant loudspeaker
DriversLF 1 x 12-inch; 1 x 1-inch
Operating Range85 Hz - 21.8 kHz
Beamwidth60 degrees x 60 degrees
Dispersion(H x V) 60 degrees x 60 degrees
Sensitivity(1W/1m): 104 dB
