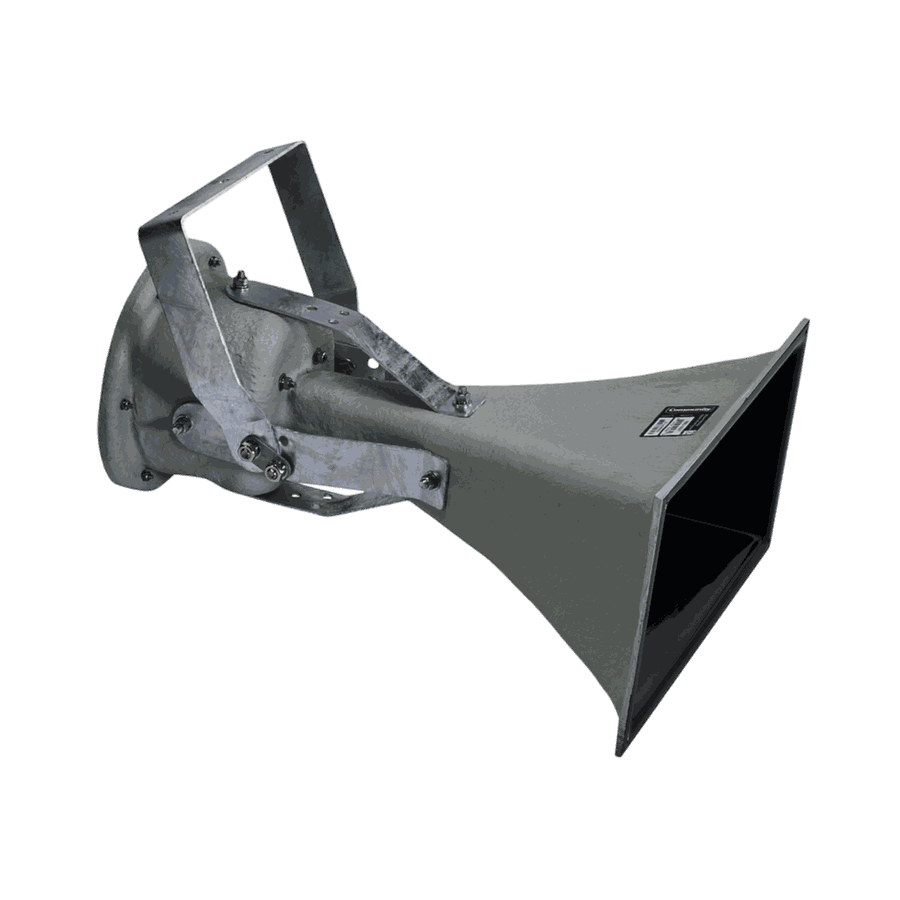

Community RMG-200A Paging Horn Loudspeaker

The Community RMG-200A is a paging horn loudspeaker. It works over 400 Hz to 8 Khz; 500 Hz to 4 khz (+/-3.5 dB). Community positions it for large venue work.

Mounting: (4) 1/4-inch holes at the corners of the horn mouth. Every part number in the family is listed above; pick the coverage and finish the room needs.

Dimensions (H x W x D)	9.75 inches (248 mm) x Width (front): 17.63 inches (448 mm); Width (rear): 10.5 inches (267 mm) x 25 inches (635 mm)
Loudspeaker System	Voice-range horn system
Drivers	MF 1 x M200, Ferrofluid-cooled
Operating Range	400 Hz to 8 Khz; 500 Hz to 4 khz (+/-3.5 dB)
Beamwidth	Nominal -6dB: ; 50 degreesH (+14 degrees / -9 degrees, 2 kHz to 4 kHz) ; 40 degreesV (+10 degrees / -10 degrees, 2 kHz to 4 kHz)
Sensitivity	(1W/1m): 115 dB SPL (400 Hz to 4 kHz 1/3 octave bands)
Impedance	Nominal Impedance: 11 Ohms; Minimum Impedance: 10.8 Ohms @ 1.8 kHz
Maximum Output	134 dB SPL / 141 dB SPL (peak)
