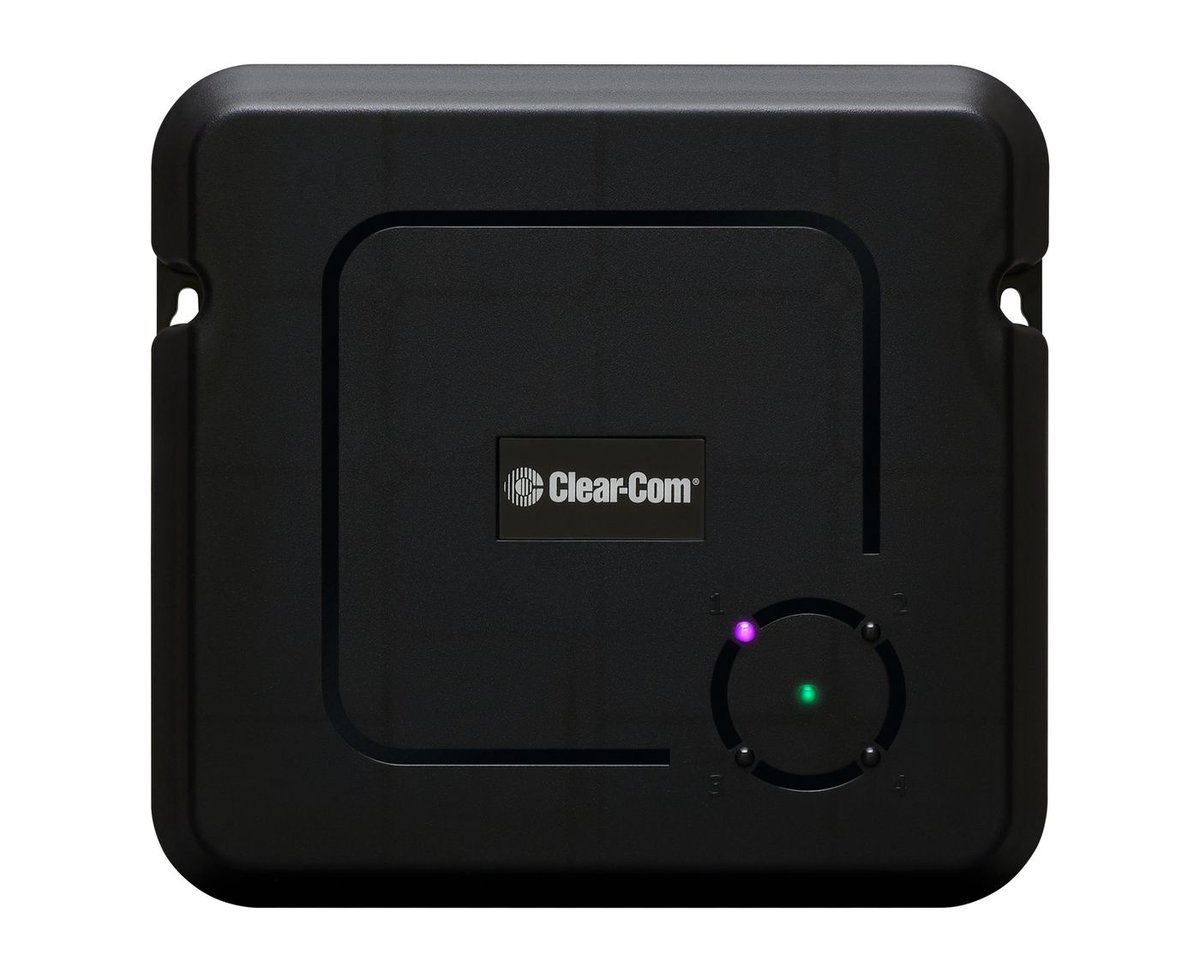

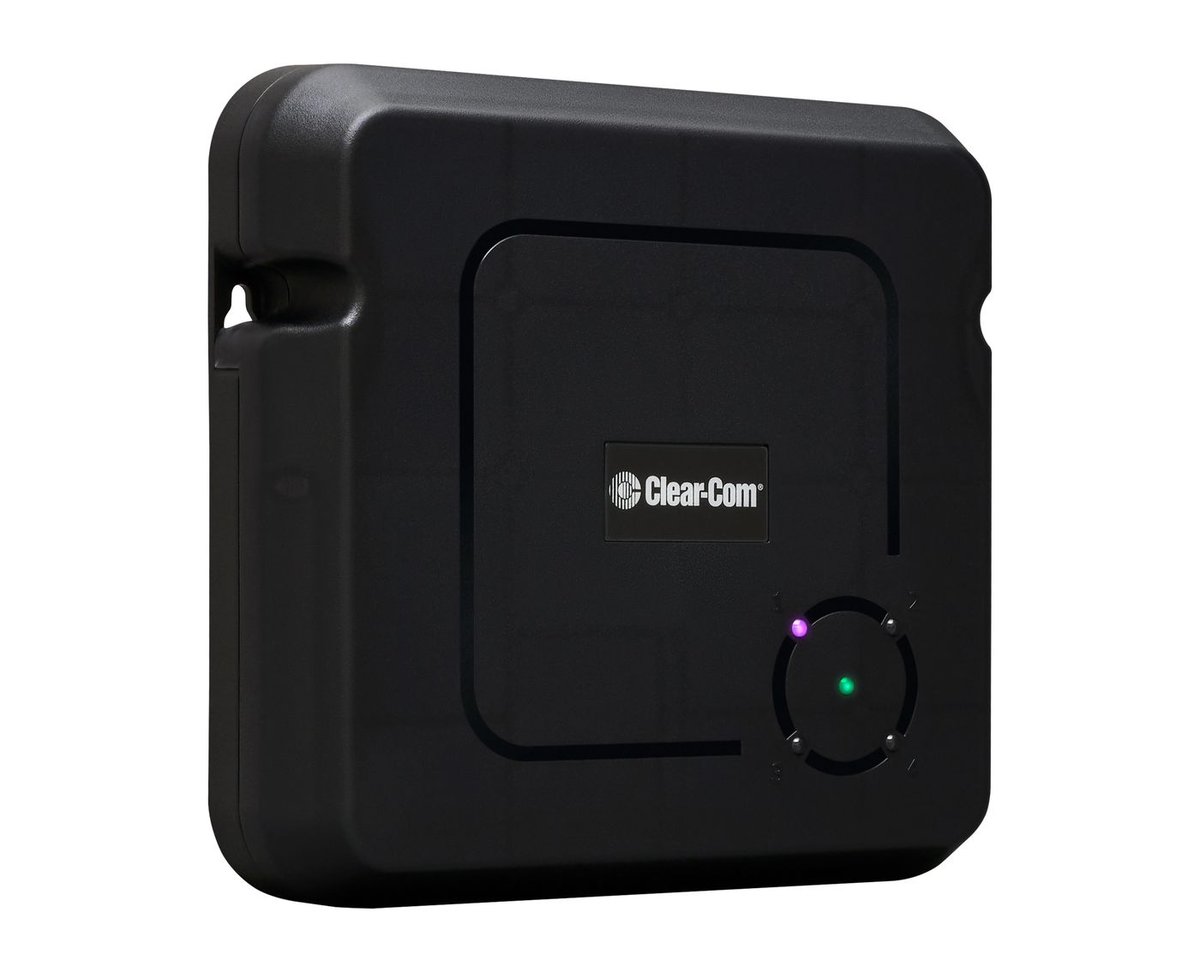

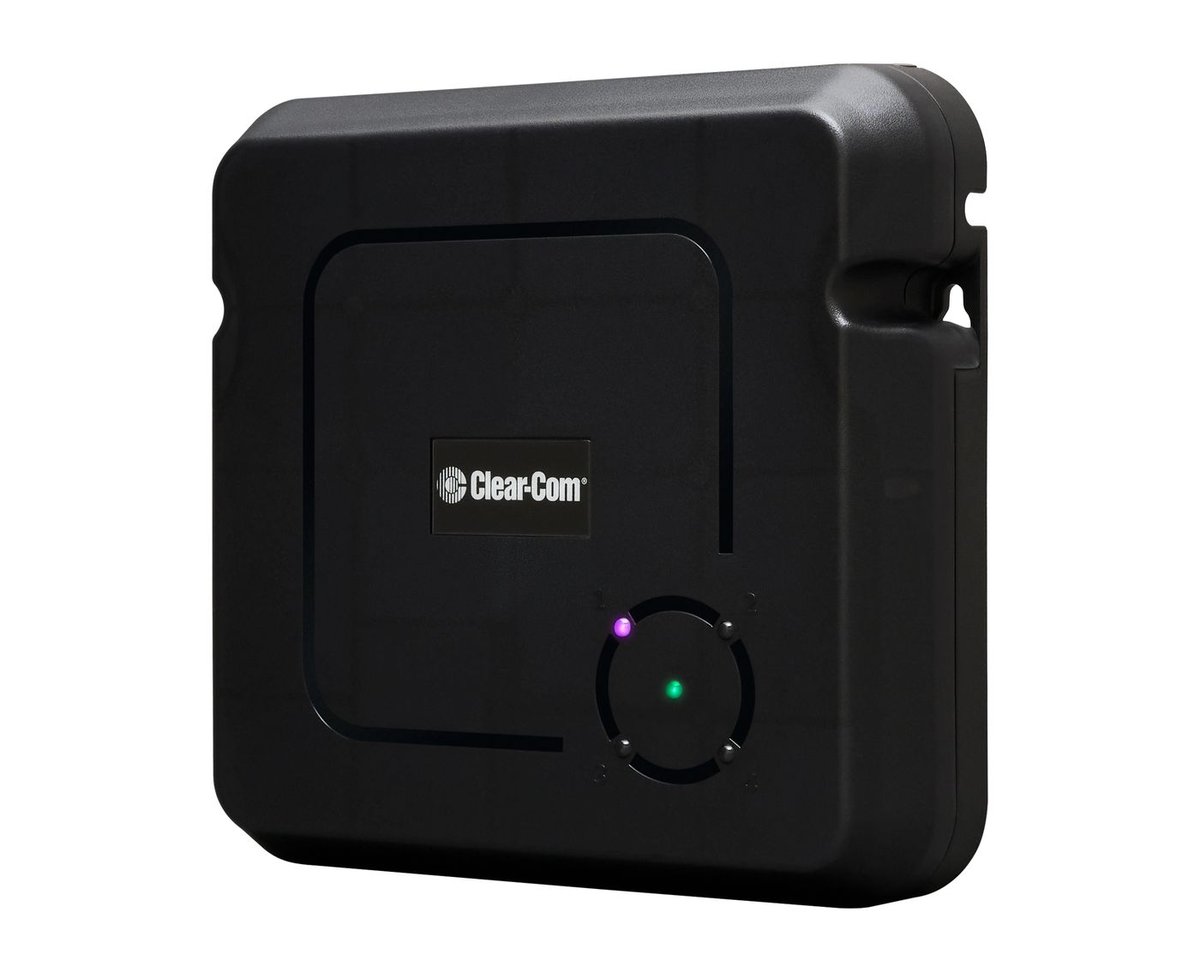

Clear-Com EQP-TCVR EQUIP 5 GHz Transceiver

The EQP-TCVR extends EQUIP coverage past the room the base station is in. One Cat5 or Cat6 cable carries data, audio and 48V power up to 500 ft from the EQP-BASE, so an antenna can go in a corridor, a scene dock or an upper level without a local outlet. Up to four transceivers work with one base, and headsets roam between them.

Five RGB LEDs on the front report power and the status of four connections, and a Site Survey mode helps place the unit before anything is permanently mounted, which is faster than discovering a dead spot mid-rehearsal. The radio covers 5.180 to 5.8525 GHz, subject to local regulation, and the IP53 housing draws 2.88W.
