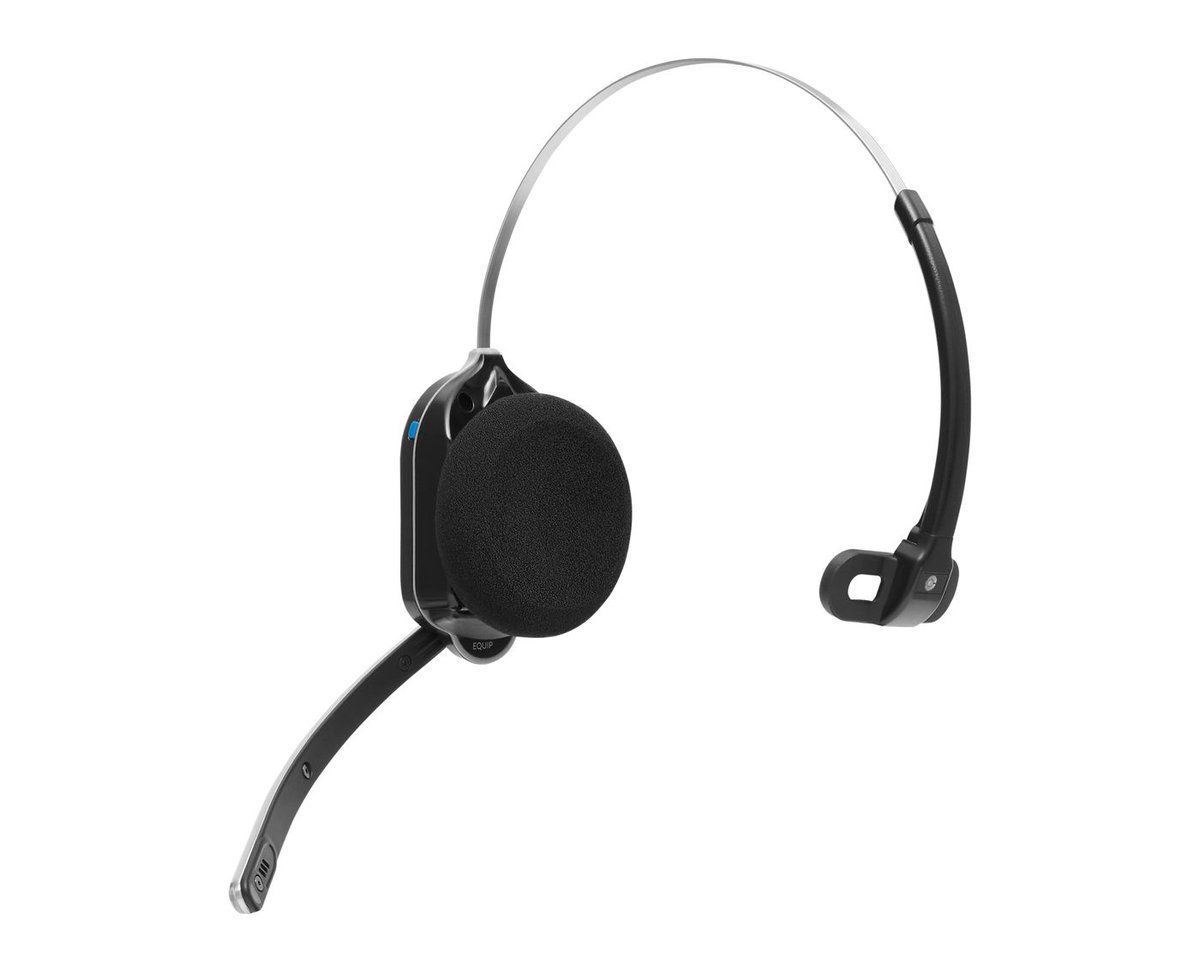

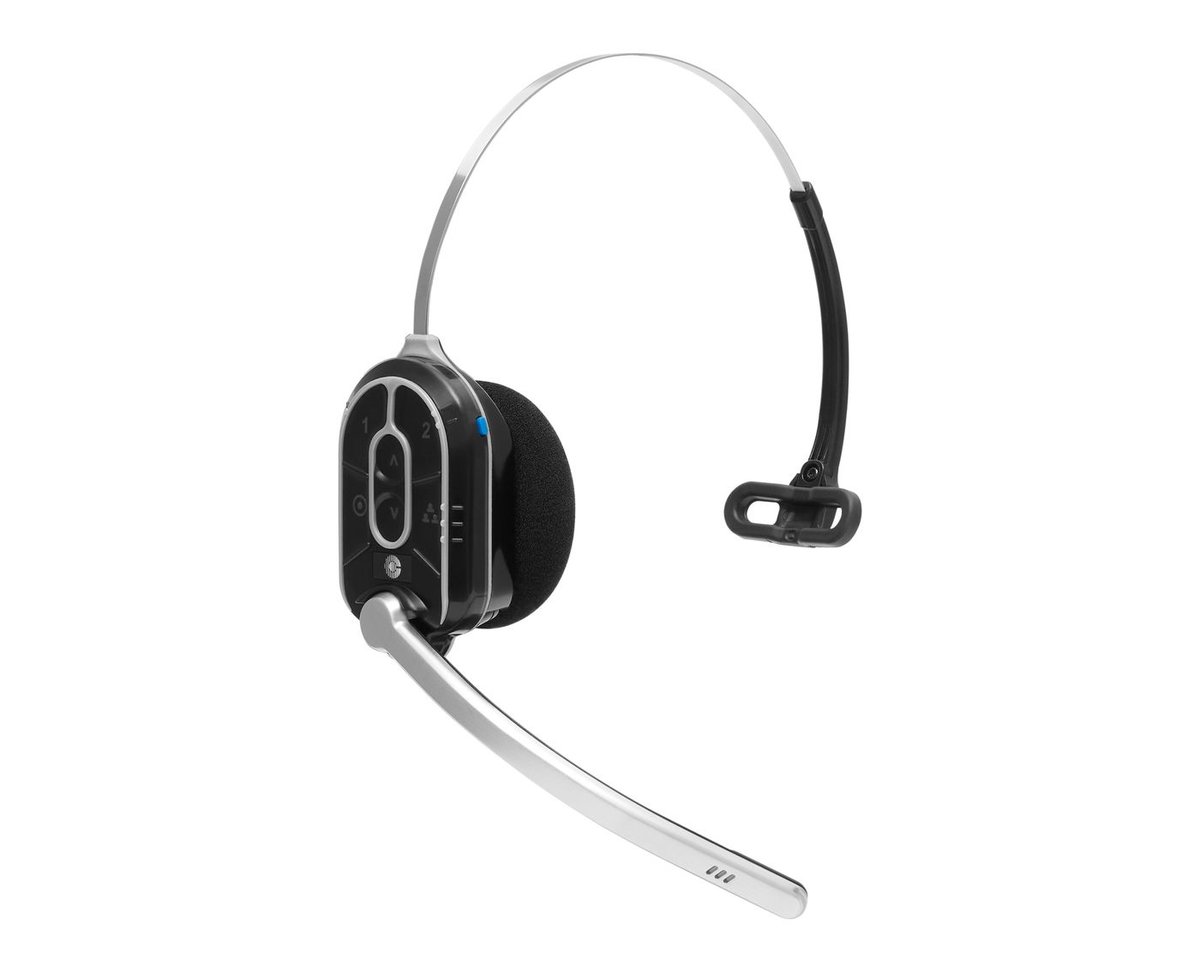

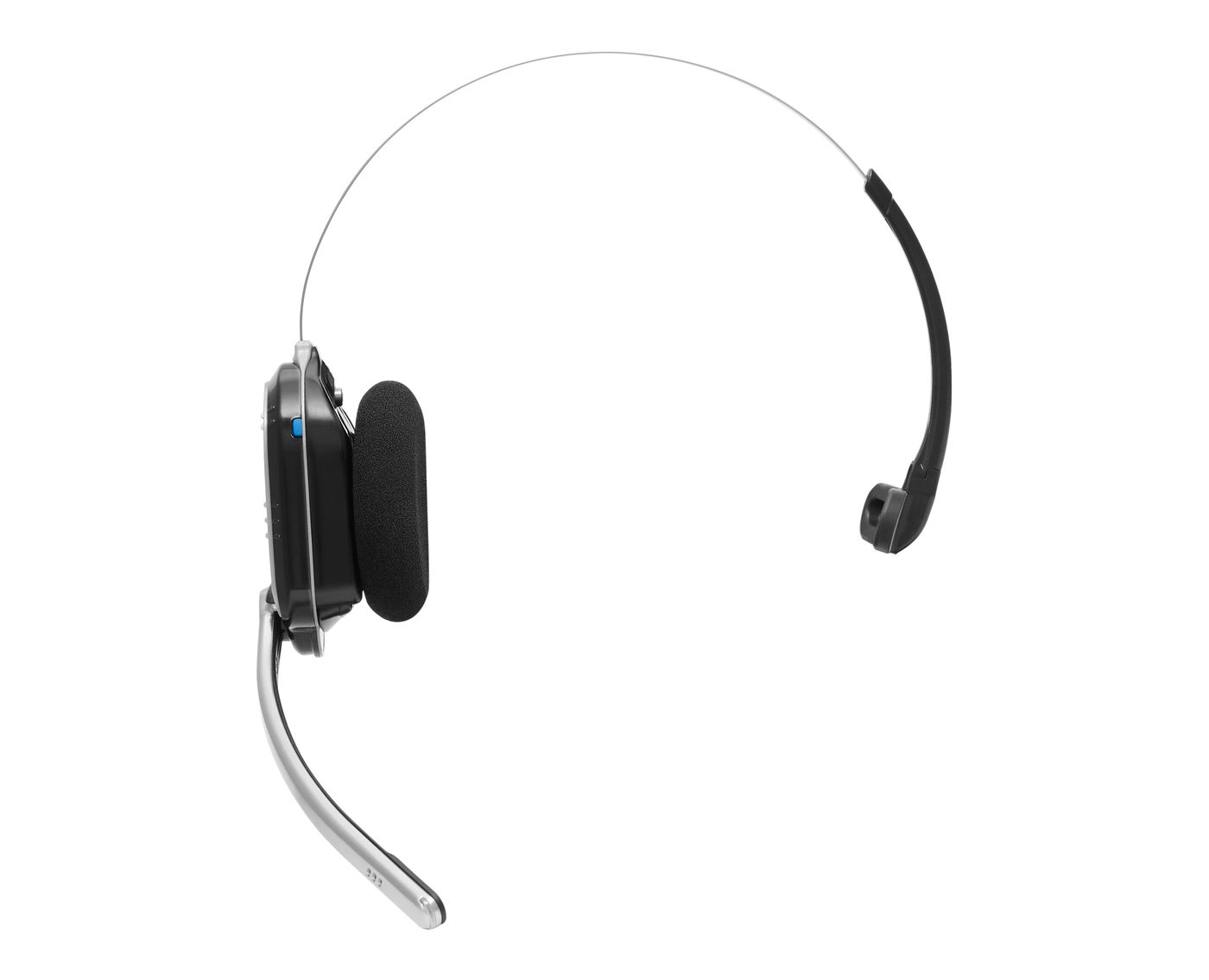

Clear-Com EQP-WH EQUIP All-In-One Wireless Headset
The EQP-WH puts the radio, battery and headset in one 3.67 oz unit, so an EQUIP user has nothing on their belt and no cable running up their back. Two audio channels are available with 7kHz wideband voice, and pairing is a tap against the base station's NFC target rather than a menu. LEDs show talk status and spoken prompts announce level changes, talk paths and battery state, which matters when the wearer cannot see the headset they are wearing.
The main radio works in the 5 GHz range with a separate Bluetooth Low Energy radio at 2.4 GHz. A charged BAT70 runs 8 to 12 hours depending on how much of that time is spent talking, and the battery is replaceable rather than sealed in. The shell is rated IP54 and up to 40 headsets can share one EQUIP system.
| Channels | 2 audio channels |
|---|---|
| Audio Bandwidth | 100 Hz - 7 kHz |
| Main Radio | 5.180 - 5.8525 GHz |
| BLE Radio | 2.402 - 2.480 GHz |
| Battery | Replaceable BAT70 Li-ion, 8 - 12 hours |
| System Capacity | Up to 40 headsets per EQUIP system |
| Environmental | IP54 water and dust resistance |
| Weight | 3.67 oz (104 g) with battery |
