Clear-Com EQP-BASE-US EQUIP Wireless Base Station

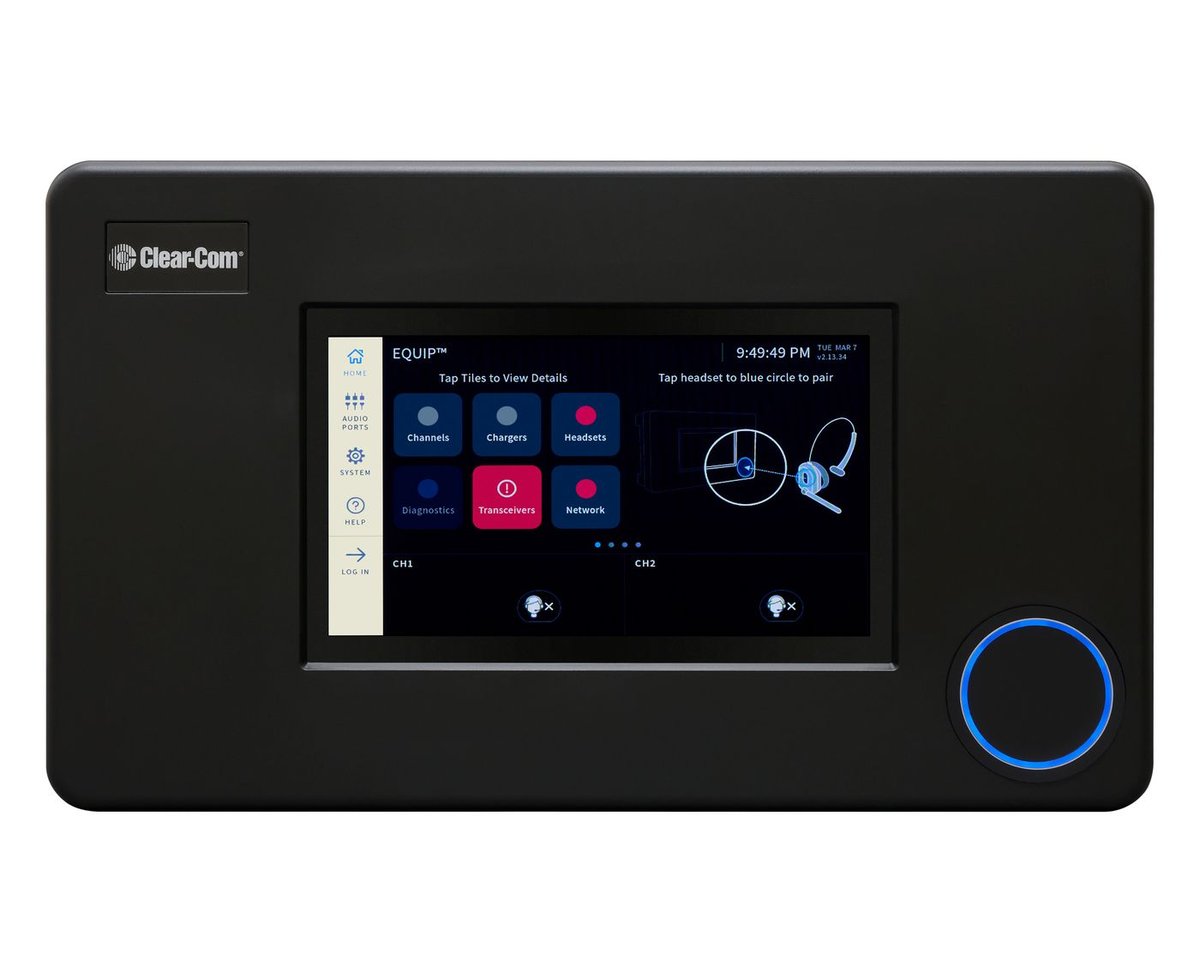

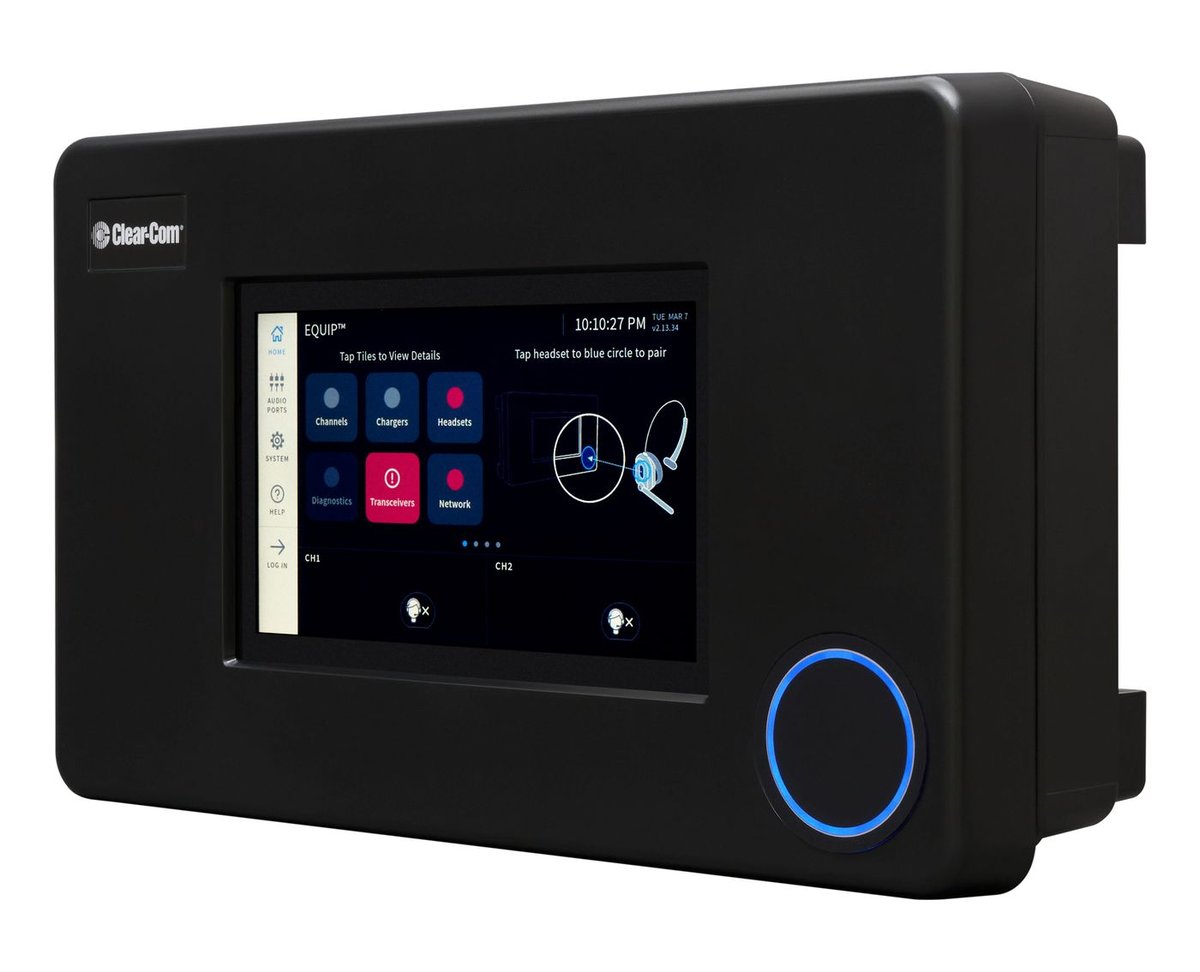

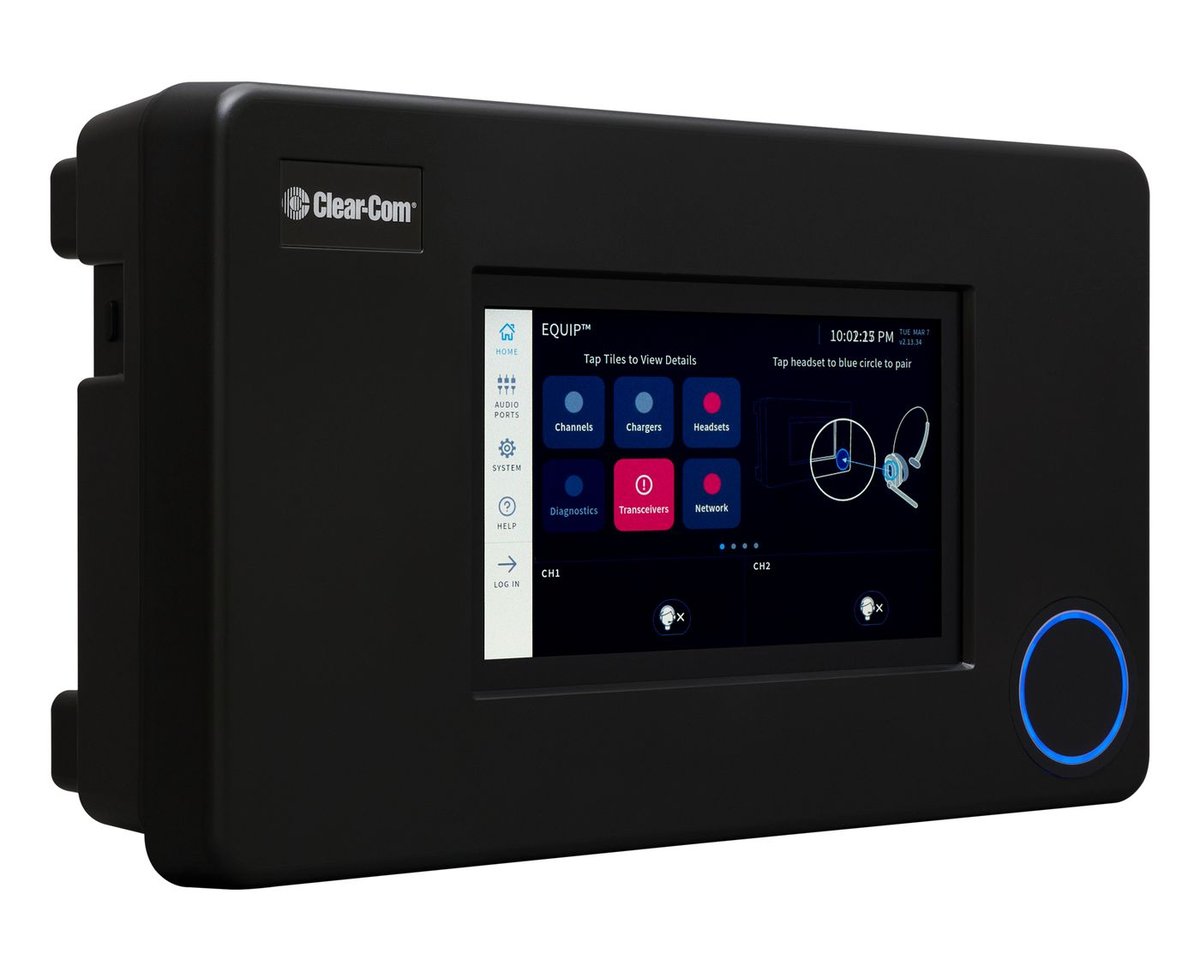

EQUIP is Clear-Com's wireless system for teams that want headsets and nothing else to carry, and the EQP-BASE is its host. It mounts on a wall so the 800x480 capacitive touchscreen sits at eye level, pairs headsets by tapping them against an NFC target, and supports 40 EQP-WH all-in-one headsets with ten talking at once. Four EQP-TCVR transceivers extend coverage, and users roam between them without dropping.

A gigabit Ethernet port opens browser-based administration and remote configuration, and a digital audio link to a Clear-Com LQ interface brings the system onto a wider intercom and reaches Agent-IC and Station-IC virtual clients. Audio bandwidth runs 100Hz to 7kHz. The US build ships with the PSU-00002 supply; EU, Japan, Australia and South Korea versions are also built.
