Chauvet DJ EVE E-100Z

EVE E-100Z steps the ellipsoidal line up to a 100W warm-white LED for sharper, longer-throw gobo projection than the E-50Z. Manual zoom runs 14 to 30 degrees, and the barrel takes an M-size metal or glass gobo plus framing shutters, so it earns its keep as a monogram or texture projector for a ballroom as easily as a plain accent spot.

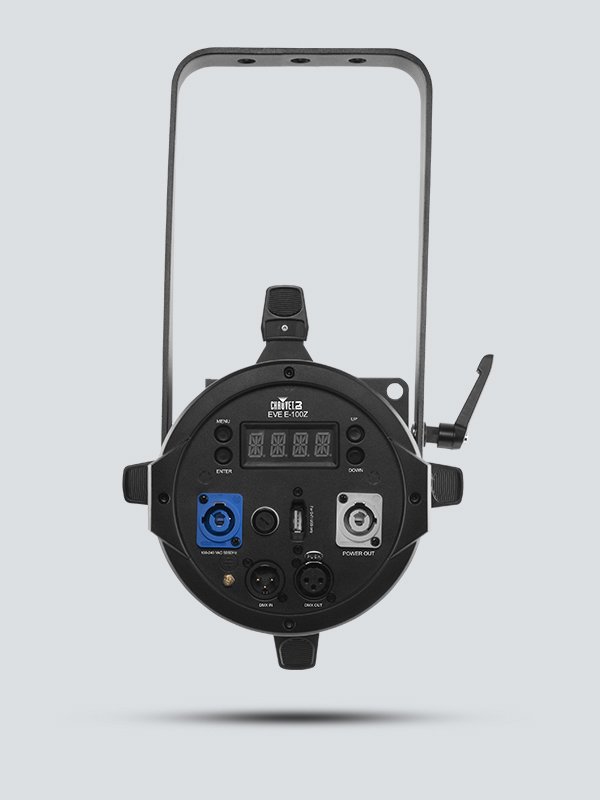

It runs 1 or 3-channel DMX over 3-pin XLR, or pairs with a D-Fi USB transceiver for wireless master/slave control with no cable run. The fixture auto-ranges across 100-240 VAC and power-links up to 9 units at 120V, and at 12.6 lb it still travels as a two-case load for a mobile lighting company doing hotel ballroom work.

Light Source	1 LED (warm white), 100 W (2.3 A), 50,000-hour life
Color Temperature	3,500 K, CRI 80
Zoom Angle	14° to 30° (manual)
DMX Channels	1 or 3; 3-pin XLR
Illuminance	15,100 lux @ 2m (14°); 3,800 lux @ 2m (30°)
Power	106 W @ 120 V; 103 W @ 230 V; power-links 9 units @ 120 V
Weight / Size	12.6 lb (5.7 kg); 24 x 7.2 x 16.9 in
Gobo Size	M (66mm outside, 48mm image, 2mm max)
