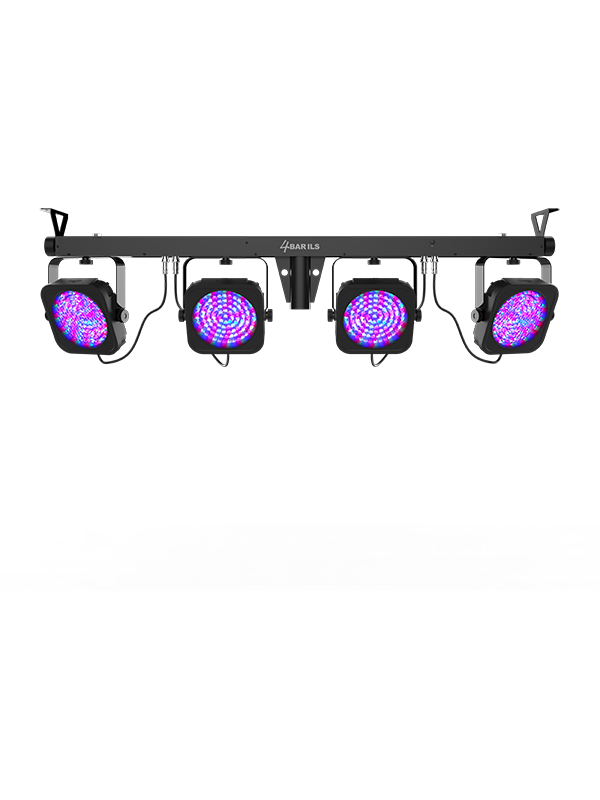

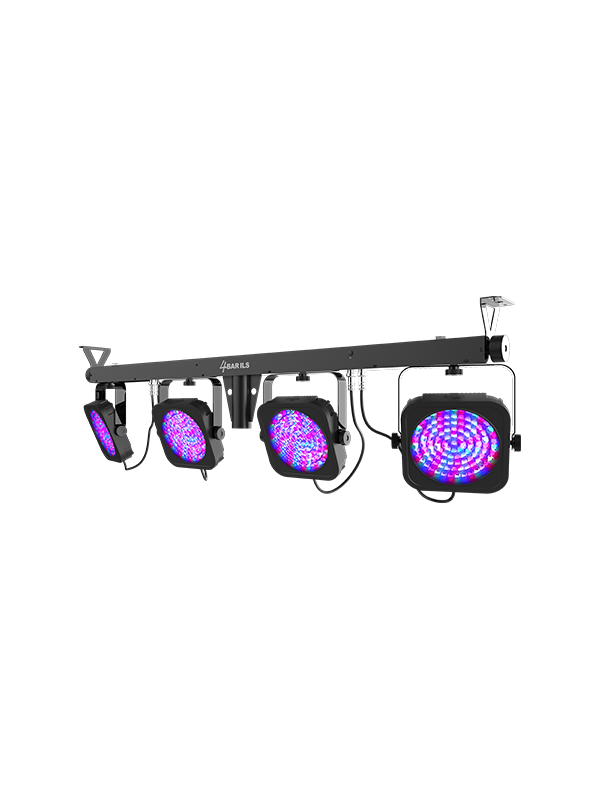

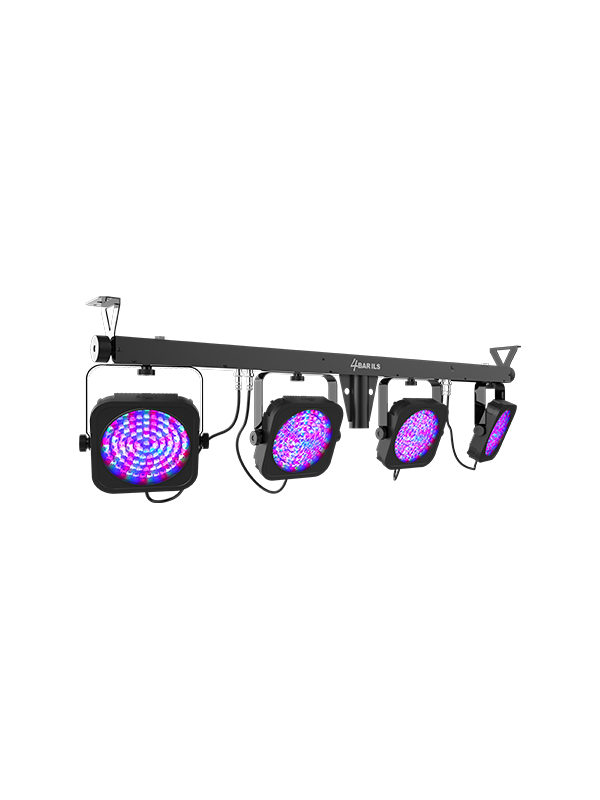

Chauvet DJ 4BAR ILS Wash Light System
The 4BAR ILS is the pack-and-go wash bar most mobile DJs start with. Four individually aimed pods carry 432 small RGB LEDs rated at 100,000 hours, and the whole bar draws 29 watts - low enough that it is never the reason a venue circuit trips. The tripod, both carry bags and the wireless footswitch are in the box, so a room goes from case to lit in a couple of minutes.

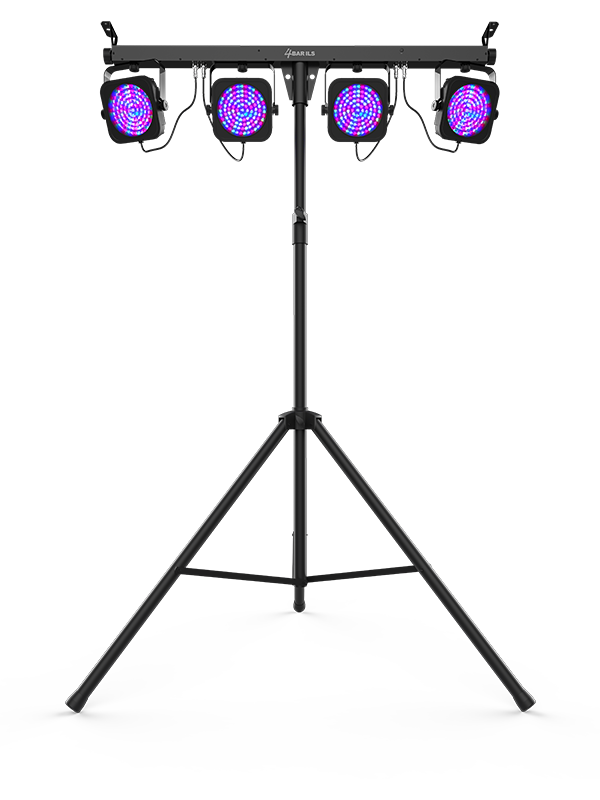

It is an ILS fixture, which means it will take its cue from a GigBAR or an ILS Command without any programming, and it will also run as a plain DMX fixture on 3, 5 or 15 channels over 3-pin XLR. Between those two extremes it has built-in automated programs, master/slave linking with other 4BAR fixtures, an optional IRC-6 remote for static colors, and a D-Fi USB port for wireless master/slave or DMX. The stand reaches 7 feet 4 inches and fits 1.37-inch (35 mm) tripods.
| Light Source | 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, 100,000-hour life |
|---|---|
| DMX Channels | 3, 5 or 15; 3-pin XLR |
| Beam / Field Angle | 17° / 24° |
| Illuminance | 786 lux @ 2 m per pod |
| Strobe Rate | 0 to 19.9 Hz |
| Power and Current | 29 W, 0.4 A @ 120 V; 27 W, 0.2 A @ 230 V |
| Size / Weight | 43.3 x 2 x 10.5 in (1100 x 50 x 267 mm); 11 lb (5.0 kg) |
| Included | Tripod (7 ft 4 in), carry bags, wireless footswitch, power cord |
